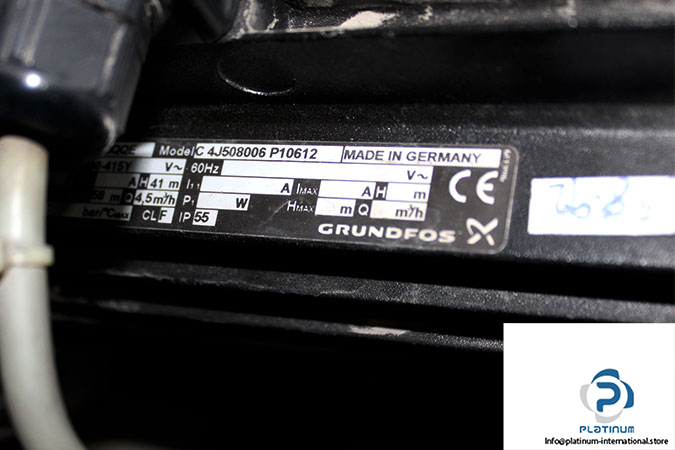

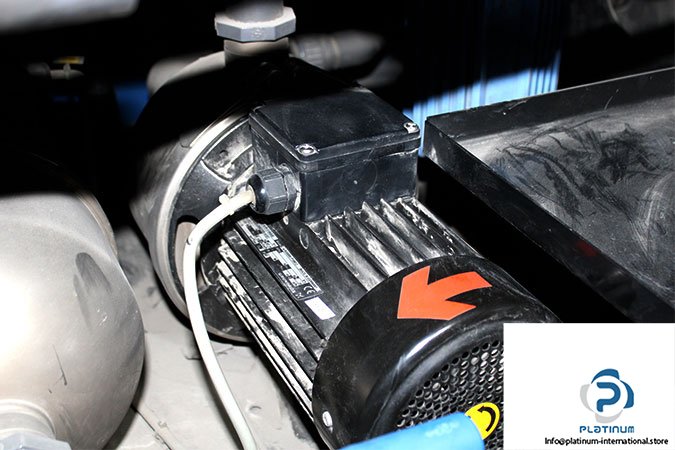

Grundfos C 4J508006 P10612 Multipurpose Stainless-Steel Pump

Manufacturer: Grundfos
Type: Multipurpose Stainless-Steel Pump
Model: C 4J508006 P10612
Part No: CHI4-60-240 A-W-G-BQQE

Delta Voltage(D): 220 … 240 V
Start Voltage(Y): 380 … 415 V
Current: 4.8 A (D) /2.7 A (Y)
Frequency: 50 Hz
Power: 1630 W
Height: 41 m
Max. Height: 58 m
Rated Flow Rate: 4.5 m³/h
Degree of protection: IP55
Diameter: 205 mm
Dimensions: 437 X 229 mm
