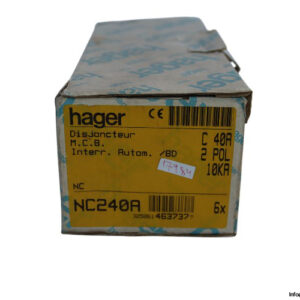

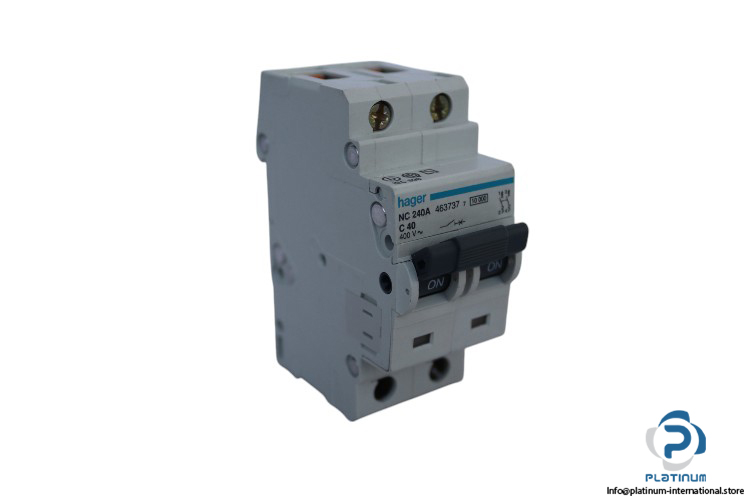

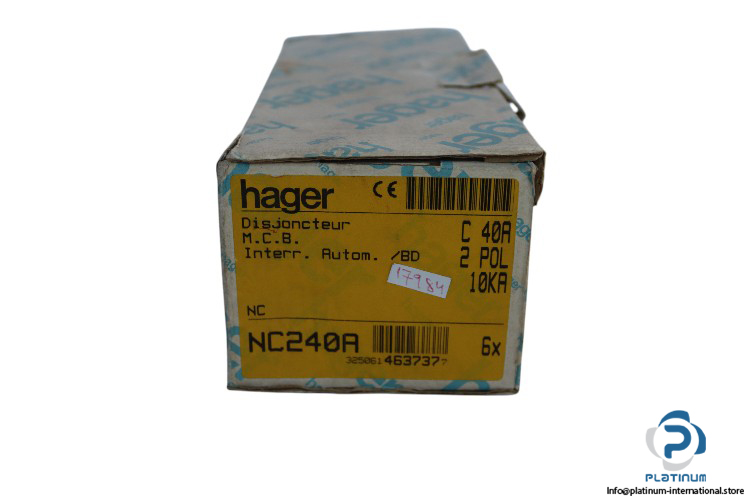

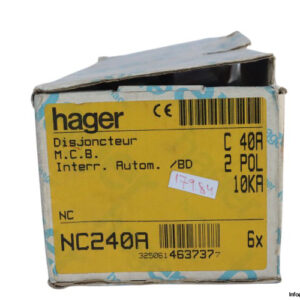

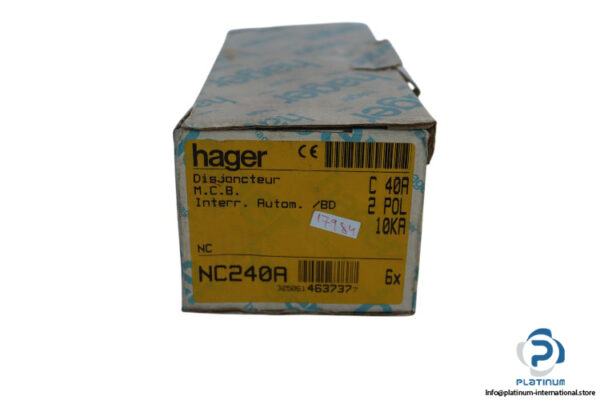

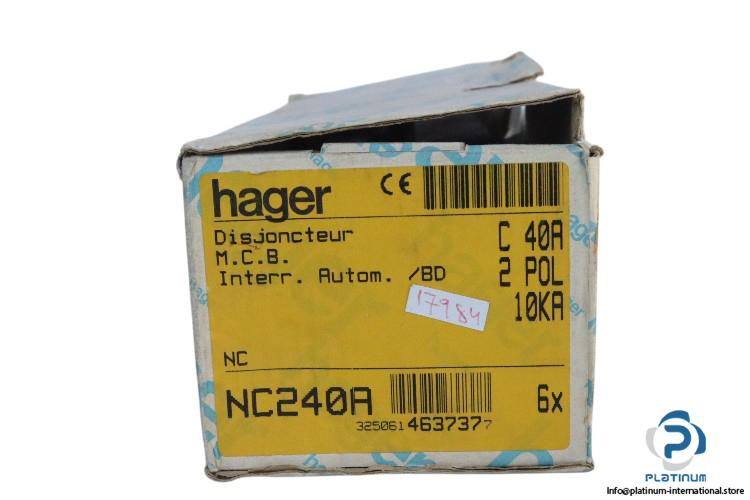

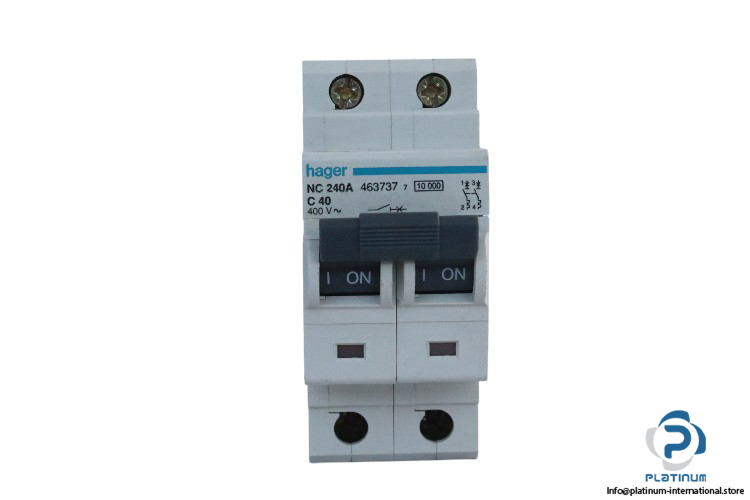

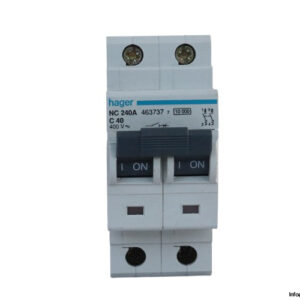

Hager NC240A Miniature Circuit Breaker

Hager Miniature Circuit Breaker NC240A

The Hager NC240A Miniature Circuit Breaker is a high-performance 2-pole MCB designed for electrical protection in industrial and residential applications. It features a rated short circuit breaking capacity of 10 kA, ensuring safety and reliability under heavy electrical loads. With a 400 V operational voltage and 40 A rated current, this breaker is built for durability and efficiency.

Specifications:

• Manufacturer: Hager
• Type: Miniature Circuit Breaker
• Model: NC240A
• Number of Poles: 2 P
• Rated Short Circuit Breaking Capacity: 10 kA
• Rated Operational Voltage (Ue): 400 V
• Frequency: 50/60 Hz
• Rated Insulation Voltage: 500 V
• Rated Impulse Withstand Voltage: 4000 V
• Rated Current: 40 A
• Total Power Loss under IN: 9.6 W
• Power Loss per Pole at In: 4.92 W
• Type of Top Connection for Modular Devices: With screw
• Tightening Torque: 2.8 Nm
• Degree of Pollution: 2
• Operating Temperature: -25 / 70 °C
• Dimensions (H X W X D): 83 x 35 x 70 mm
