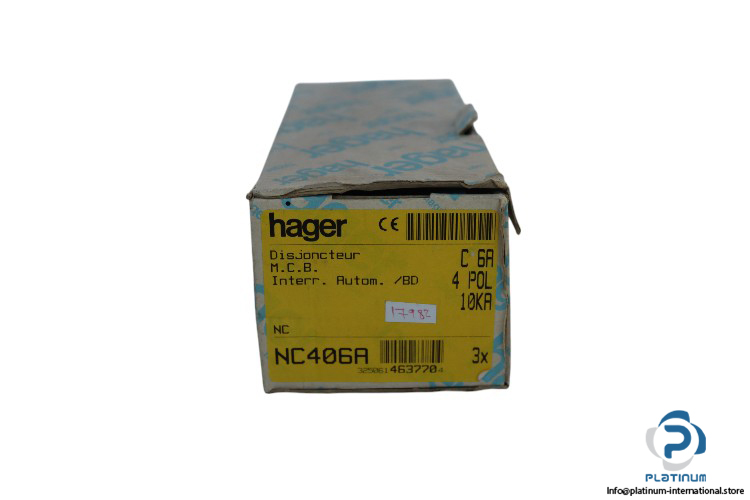

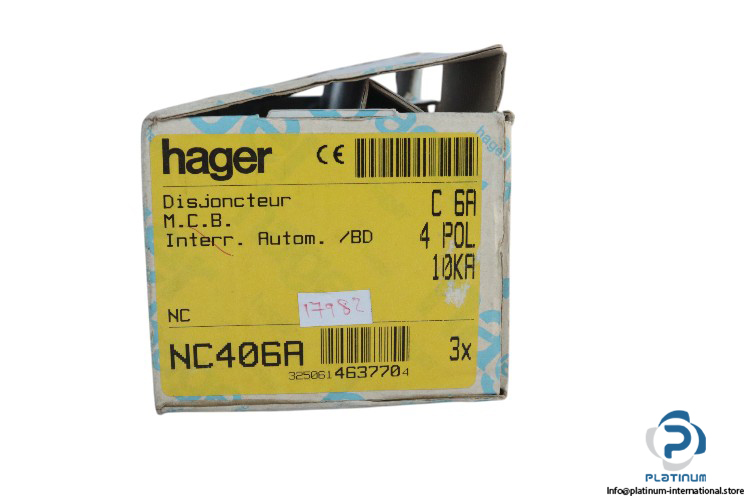

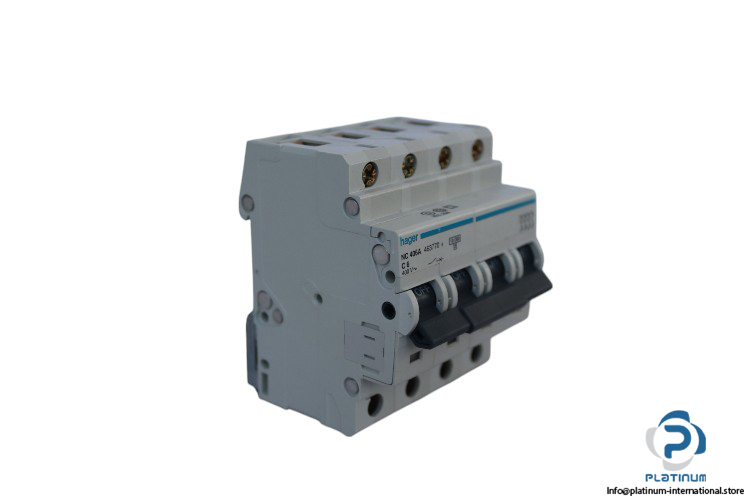

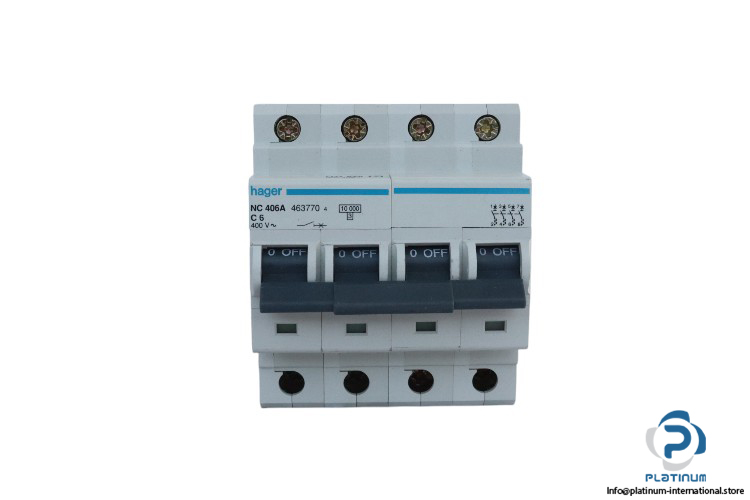

Hager NC406A Miniature Circuit Breaker

Hager NC406A Miniature Circuit Breaker

The Hager NC406A Miniature Circuit Breaker is designed to provide high-performance protection for electrical circuits in industrial and commercial environments. With a 4-pole configuration and a rated current of 6A, this breaker ensures robust protection against short circuits and overloads. It offers a rated short circuit breaking capacity of 10 kA and a rated operational voltage (Ue) of 230/400 V, making it suitable for various voltage conditions. The breaker is equipped with a rated insulation voltage of 500 V and a rated impulse withstand voltage of 4000 V, offering superior protection and durability.

• Manufacturer: Hager
• Type: Miniature Circuit Breaker
• Model: NC406A

Technical Specifications:

• Number of Poles: 4 P
• Rated Short Circuit Breaking Capacity: 10 kA
• Rated Operational Voltage (Ue): 230 / 400 V
• Frequency: 50/60 Hz
• Rated Insulation Voltage: 500 V
• Rated Impulse Withstand Voltage: 4000 V
• Rated Current: 6 A
• Total Power Loss under IN: 5.2 W
• Power Loss per Pole at In: 1.3 W
• Type of Top Connection for Modular Devices: With screw
• Tightening Torque: 2.8 Nm
• Degree of Pollution: 2
• Operating Temperature: -25 / 70 °C
• Dimensions: 83 x 70 x 70 mm

The Hager NC406A Miniature Circuit Breaker is a reliable and efficient solution for protecting electrical circuits. Its high short-circuit breaking capacity, wide operating temperature range, and durable construction make it ideal for use in various industrial applications.
