Hamlin 59105-010 Terminal Flange Sensor
New
In stock10 unitsReady to ship
Terminal Flange Sensor
Magnetic terminal flange sensor with SPST normally open output, suitable for industrial position detection and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

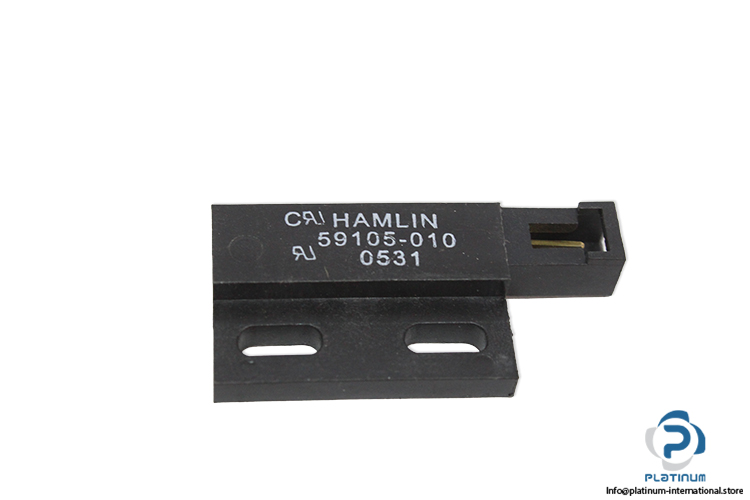

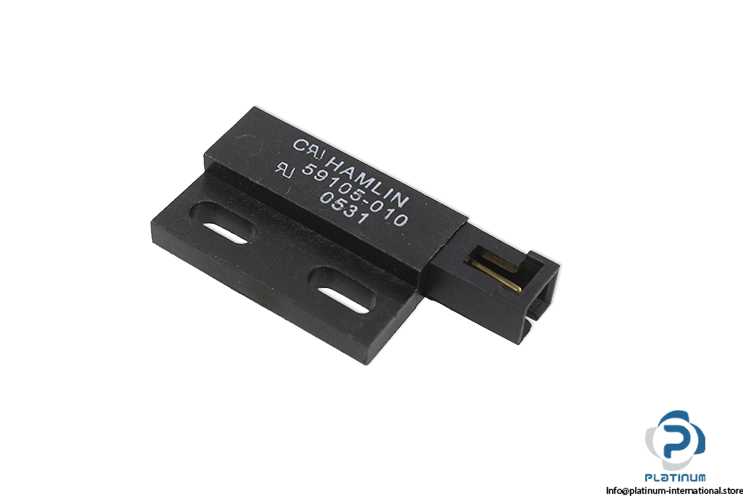

HAMLIN 59105-010 Terminal Flange Sensor
The HAMLIN 59105010 terminal flange sensor from the 59105 series is a magnetic sensing device designed for reliable position and status detection in industrial and automation applications. Its compact flange-mounted design allows easy installation while ensuring stable switching performance across a wide temperature range.
Manufacturer: HAMLIN
Type: Terminal Flange Sensor
Model: 59105-010
Ref. No.: 0531
Series: 59105
Sensing Method: Magnetic
| Switching Voltage (Max.) | 200 V DC |
| Breakdown Voltage (Min.) | 250 V DC |
| Switching Current (Max.) | 0.5 A |
| Carry Current (Max.) | 1.2 A |
| Power Rating (Max.) | 10 W |
| Output Type | SPST Normally Open (NO) |
| Operating Temperature | -40 / 105 °C |
| Dimensions | 19.05 x 40.17 x 6.6 mm |
