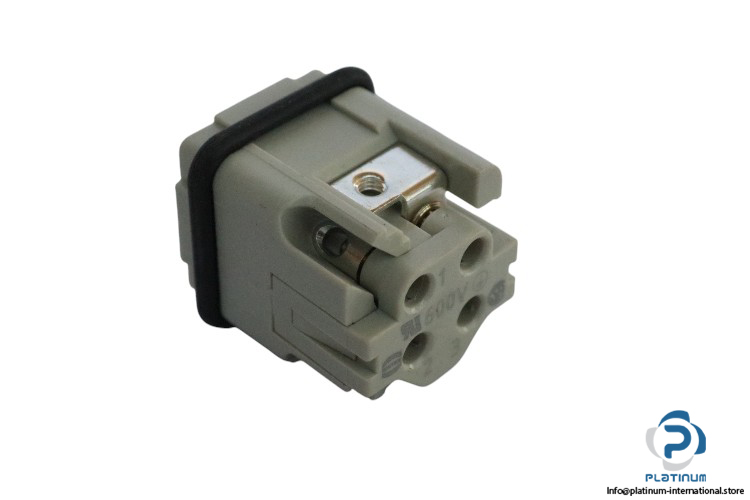

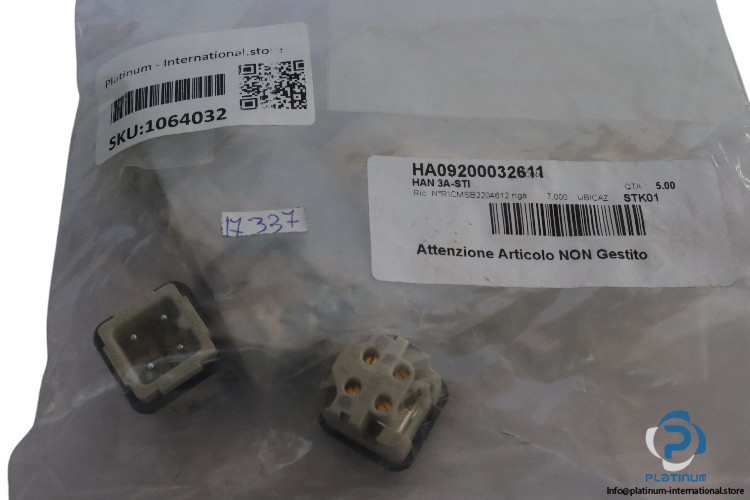

Harting HA09200032611 Plug Connector
Harting Plug Connector HAN 3A-STI “ Male insert connector from the Han A series with 230/400 V voltage, 10 A current, and durable polycarbonate construction. Designed for industrial applications.
Harting Plug Connector HAN 3A-STI
Manufacturer: Harting
Type: Plug Connector
Model: HAN 3A-STI
Part No.: HA09200032611
Series: Han A
The Harting Plug Connector HAN 3A-STI is a reliable and high-performance connector designed for industrial applications. Part of the Han A series, this male insert is engineered for secure and efficient electrical connections, even in demanding environments. The durable polycarbonate construction ensures excellent performance under challenging conditions.
Technical Specifications:
- Design: Male insert
- Size: 3 A
- Rated Voltage: 230/400 V
- Rated Current: 10 A
- Wire Cross Section Max.: 1.5 mm²
- Connection Type: Screw-type terminals
- Number of Contacts: 3
- Material: Polycarbonate
- Tightening Torque: 0.25 Nm
- Stripping Length: 2.5 to 5.5 mm
- Ambient Temperature: -40 to 125 °C
With its robust construction, secure screw-type terminal connections, and wide operating temperature range, the HAN 3A-STI connector is ideal for use in industrial automation, machinery, and power distribution systems.
