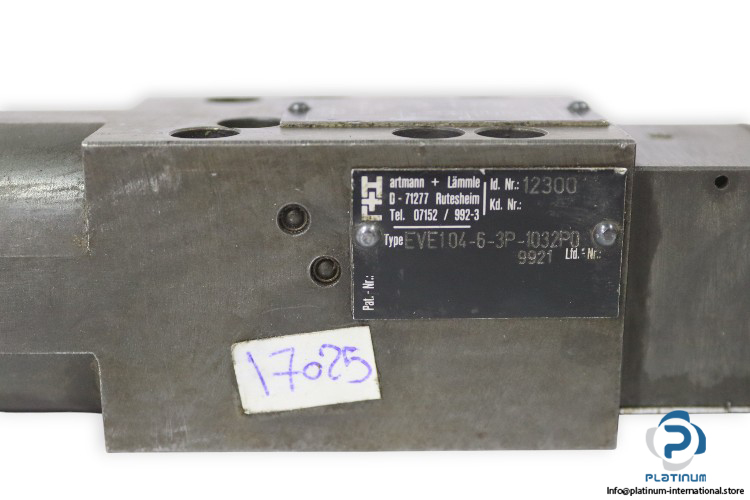

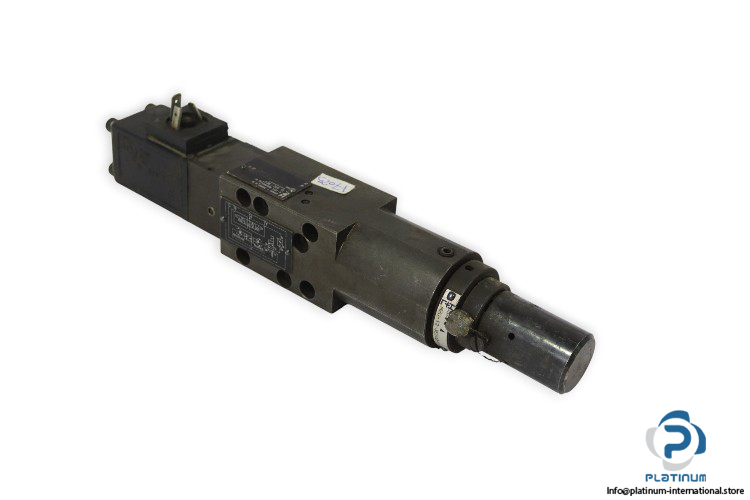

Hartmann + LAMMLE EVE104-6-3P-1032P0 9921 Flow Control Valve
Flow Control Valve
An electrically actuated hydraulic flow control valve assembly for oil systems, supplied with Hartmann + Lammle needle and directional control valves for precise and reliable industrial hydraulic control.HARTMANN + LAMMLE EVE104-6-3P-1032P0 Flow Control Valve Assembly
An electrically actuated hydraulic flow control valve assembly designed for precise oil flow regulation in industrial hydraulic systems. This unit is supplied with compatible Hartmann + Lammle needle and directional control valves, forming a reliable and compact solution for hydraulic control applications. Manufacturer: HARTMANN + LAMMLE
Type: Flow Control Valve
Model: EVE104-6-3P-1032P0 9921
ID No.: 12300
Type of Actuation: Electrically
Fluid: Oil
Hydraulic Connection: Sub-Plate
Attached With: HARTMANN + LAMMLE M20-12-3E242-0P Needle Valve
Part No.: 20296
Fluid: Oil
Attached With: HARTMANN + LAMMLE WE03-12P100 Directional Control Valve
| Directional Control Valve Manufacturer | HARTMANN + LAMMLE |
| Part No. | 11357 |
| LFD No. | 9916 |
| Size | NG 4, ISO 4401 |
| Function | 4/2 Way Valve |
| Maximum Pressure (Ports P, A, B) | 315 bar |
| Maximum Pressure (Port T) | 150 bar |
| Type of Actuation | Electrically |
| Hydraulic Temperature | -10 / +70 °C |

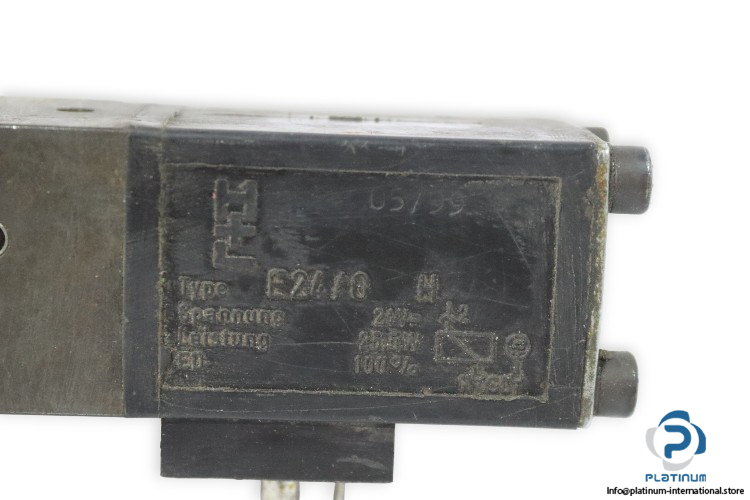

| Attachment | HARTMANN + LAMMLE E24/0 H Solenoid Coil |
| Voltage | 24 VDC |
| Power | 25.5 W |
| Duty Factor | 100% |
| Hydraulic Connection | Mounting Plate |
