Hawe DV4P HR Pressure Limiting Valve
Used
In stock1 unitReady to ship
Pressure Limiting Valve
HAWE DV4PHR pilot-controlled pressure limiting valve with manifold mounting, manual adjustment, and pressure range up to 350 bar for hydraulic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

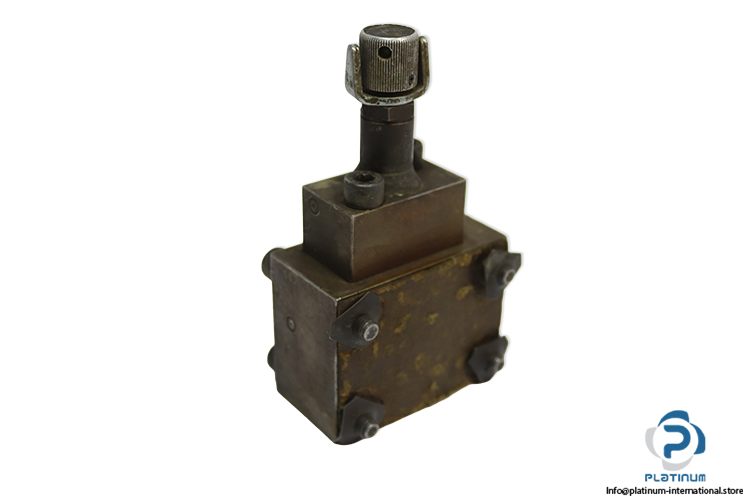

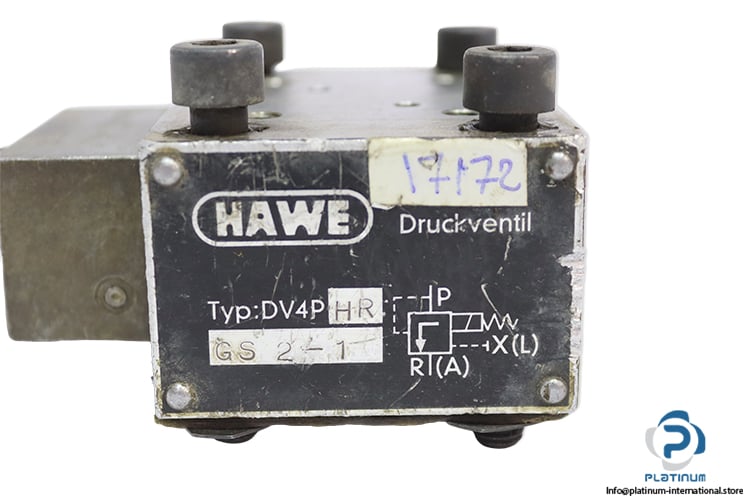

HAWE DV4PHR Pilot-Controlled Pressure Limiting Valve
The HAWE DV4PHR is a pilot-controlled pressure limiting valve designed for precise pressure regulation in hydraulic systems. Built with a robust nitrided steel housing and hardened, ground internal components, it delivers reliable performance under high-pressure operating conditions.
Manufacturer: HAWE
Type: Pilot-Controlled Pressure Limiting Valve
Model: DV4PHR
Code: GS2-1
Attached Components
| Series | DV |
| Size | 4 |
| Line Connection | Manifold Mounting |
| Adjustment | Manually Adjustable |
| Fluid | Oil Drain |
| Material | Steel; Nitrided Valve Housing, Hardened And Ground Functional Inner Parts |
| Setting Pressure | 5 ... 350 bar |
| Opening Pressure For Pump Circulation | 5 bar |
| Ambient Temperature | -40 to +80 °C |
| Max. Flow Rate | 80 LPM |
| Connection | G 1 |
| Attached With | HAWE PV1HR Pressure-Limiting Valve / Pilot Valve |
| Code | 307 |
| Pressure Setting | Manually Adjustable |
| Pressure Range | 15 |
