Hawe HSV22R2 Lifting/Lowering Valve
Used
Available on request
Lifting / Lowering Valve
HAWE HSV 22 R2 electrically actuated lifting and lowering valve with 315 bar working pressure and 30 l/min flow rate. Equipped with HAWE KTS G35 F03 solenoid coil, operating at 24 VDC with integrated pressure limiting and throttle valve.2224ActuatedcoilComponentconeDirectionalHaweHighHSVHydraulicIndustrialLiftingLoweringPressureR2SeatedsolenoidValveVDC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

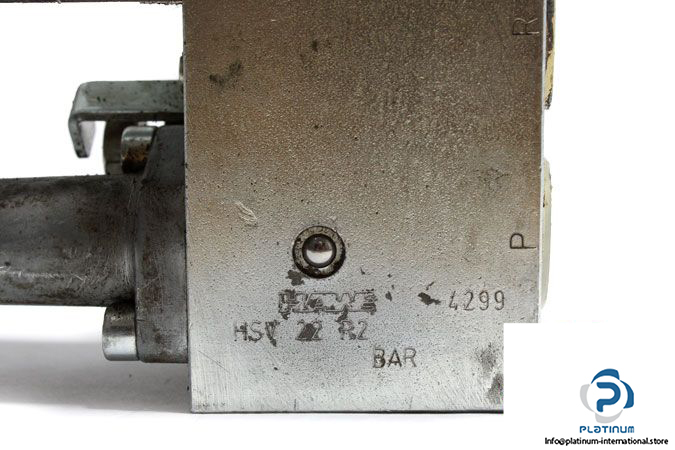

HAWE HSV 22 R2 Lifting / Lowering Valve
The HAWE HSV 22 R2 is a high-performance lifting and lowering valve designed for precise and safe control of hydraulic loads. It features a solenoid-actuated cone-seated directional valve combined with pressure limiting and an integrated throttle valve, ensuring reliable operation under high-pressure hydraulic conditions.
Manufacturer: HAWE
Type: Lifting / Lowering Valve
Model: HSV 22 R2
Solenoid Coil Attachment
Solenoid Coil Technical Data
| Design | 2/2-way directional seated valve (cone seated valve), solenoid actuated, combined with pressure limiting and throttle valve |
| Type of Actuation | Electrically |
| Working Pressure | 315 bar |
| Max. Pressure | 400 bar |
| Max. Flow Rate | 30 l/min |
| Hydraulic Connection (P) | G 3/8, Threaded |
| Hydraulic Connection (A, R, H) | G 1/2, Threaded |
| Fluid Temperature Range | -25 / 80 °C |
| MNR | KTS G35 F03 |
| Nominal Voltage Per Coil | 24 VDC |
| Current Rating Per Coil | 1.10 A |
