Hawe VDM4GHR Pressure Reducing Valve
Pressure Reducing and Limiting Valves

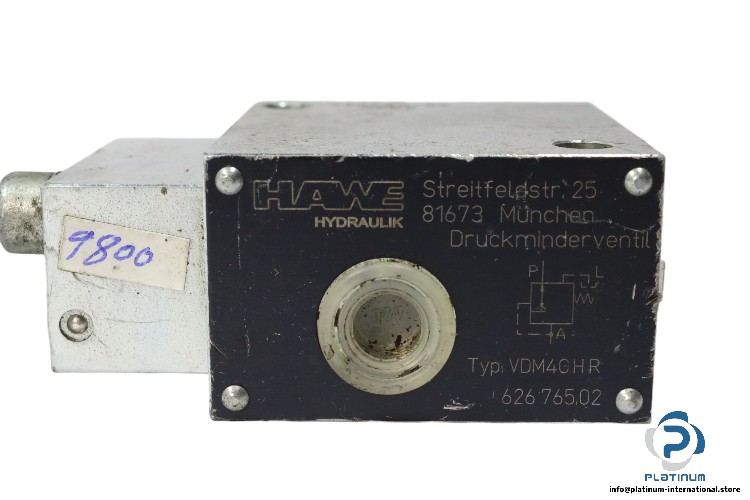

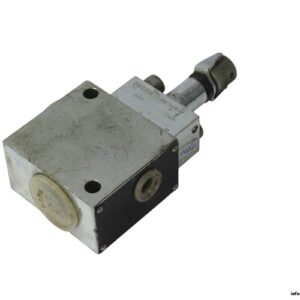

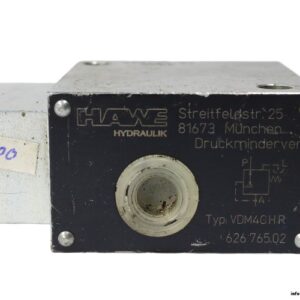

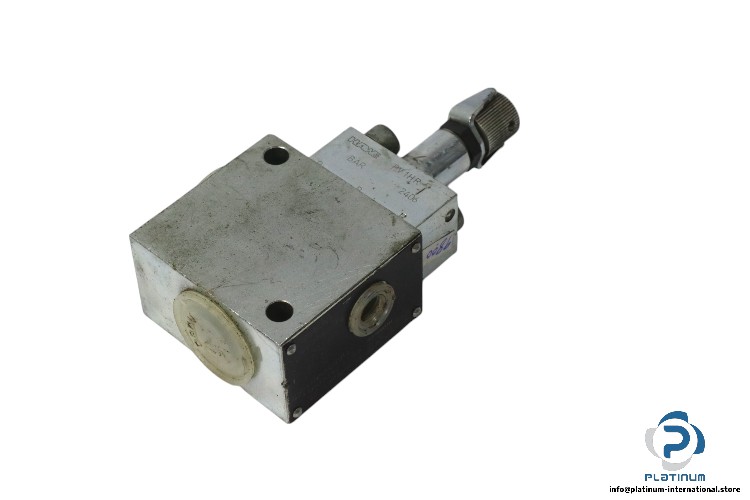

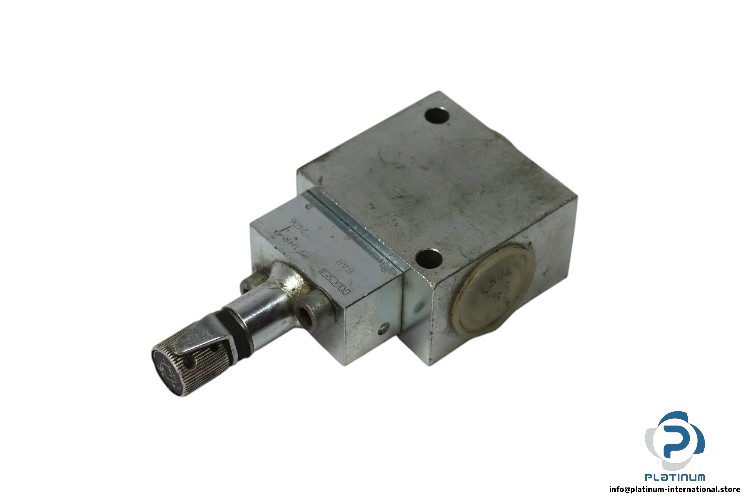

The Hawe VDM4 GHR Pressure Reducing Valve features a 10 to 400 bar pressure range, 40 l/min flow rate, and manual adjustment. The Hawe PV 1HR Pressure-Limiting Valve offers precise pressure control from 5 to 420 bar for hydraulic systems.Hawe VDM4 GHR Pressure Reducing Valve
The Hawe VDM4 GHR Pressure Reducing Valve (Part No. 626 76502) is designed to regulate pressure efficiently in hydraulic systems. With a wide pressure range of 10 to 400 bar, it is ideal for applications requiring precise control and high flow rates up to 40 l/min. The valve features manual adjustment for optimal pressure regulation, ensuring smooth operation and reliable performance in various industries.
Manufacturer: Hawe
Type: PRESSURE REDUCING VALVE
Model: VDM4 GHR
Part No.: 626 76502

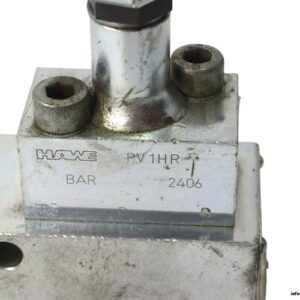

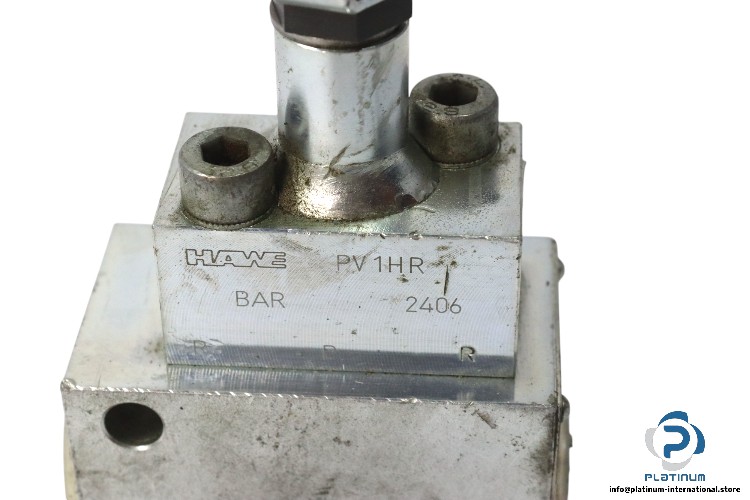

Hawe PV 1HR Pressure-Limiting Valve
The Hawe PV 1HR Pressure-Limiting Valve is a seated valve designed for pressure limitation in hydraulic systems. It has a pressure setting range of 5 to 420 bar, with manual adjustment for precise control. Ideal for use in applications requiring reliable pressure protection.
Technical Information:
| Size | 3 |
| Line Connection | G, Pipe connection size G 1/2 |
| Pressure Range | H, 10 - 400 bar |
| Flow Rate (Q max) | 40 l/min |
| Adjustment | R, manually adjustable |
| Material | Steel; nitride valve housing, hardened and ground functional inner parts |
| Hydraulic Fluid | Oil |
| Fluid Temperature Range | -40 to +80 °C |
| Pressure Range | 5 - 420 bar |
| Pressure Setting | manually adjustable |
