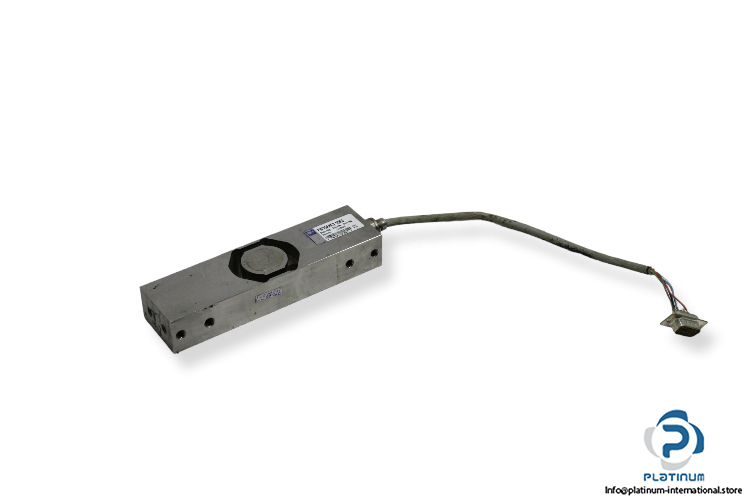

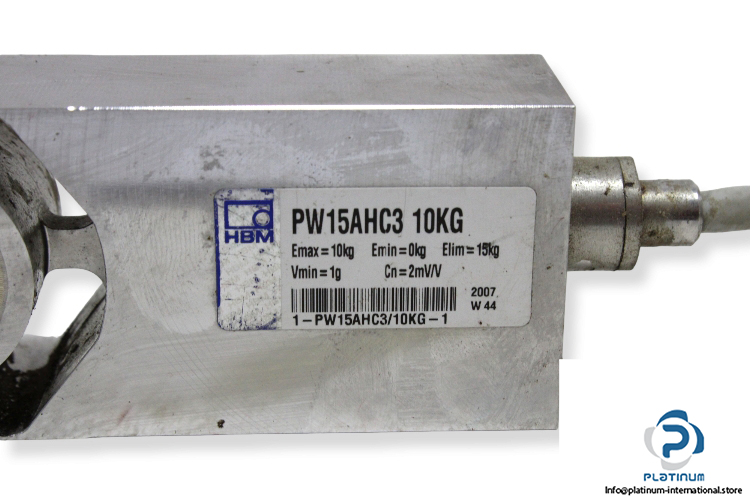

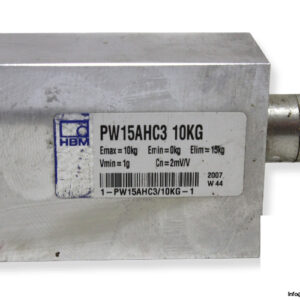

HBM PW15AHC3 Single Point Load Cell

Manufacturer: HBM

Type: Single Point Load Cell

Model: PW15AHC3



Features

– Stainless steel

– High ratio of minimum verification interval Y

– Industrial Footprint (SP4M)

– Degree of Protection IP68; IP69K

Maximum capacity (Emax): 10 Kg

Minimum capacity (Emin): 0 Kg

Nominal temperature range (BT): -10 … +40 °C

Safe load limit (EL): 150 % of Emax

Min. LC verification interval (Vmin): 1 g

Sensitivity (Cn): 2 mV/V

Material: Measuring element Cable sheath PVC

Dimension: 150 x 25 x 40 mm

Accessories

Cable length 3 m (6-wire)
