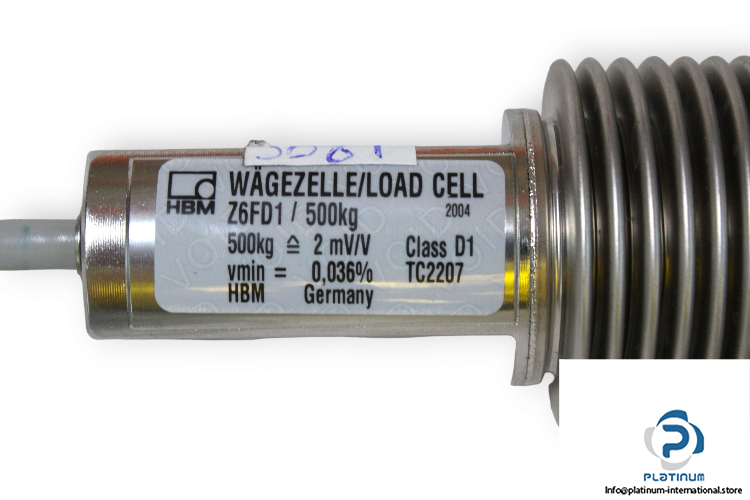

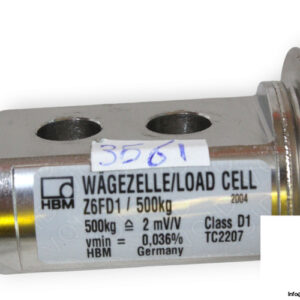

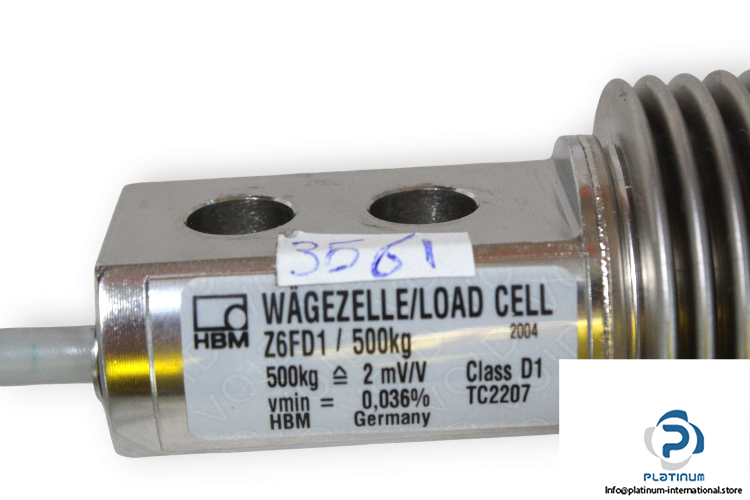

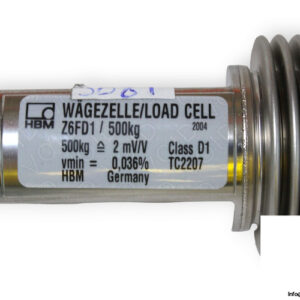

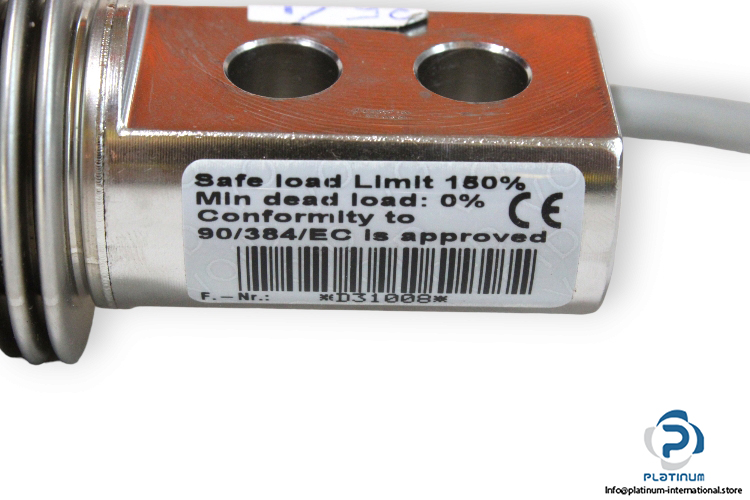

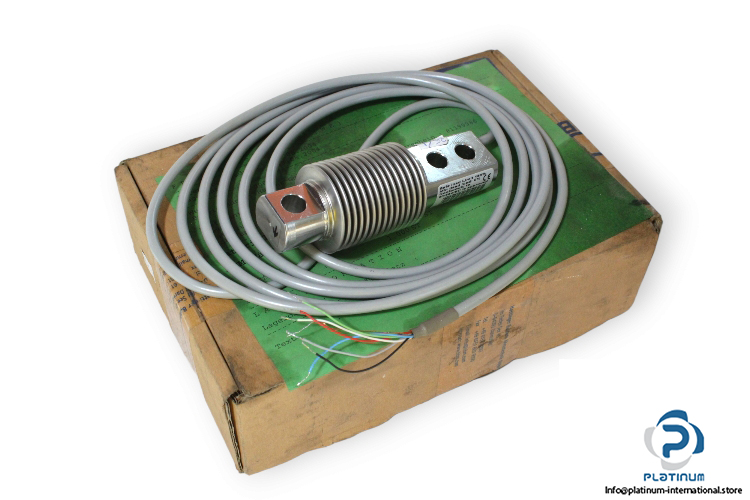

HBM Z6FD1 / 500KG Load Cell

Manufacturer: Hbm
Type: Load cell
Model: Z6FD1 / 500KG

Nominal Rated Load: 500 Kg
Nominal Rated Sensitivity: 2 mV/V
Input Resistance: 350 … 480 Ω
Output Resistance: 356 Ω
Nominal Supply Voltage: 0.5 … 12 V
Operating Temperature: -30 … 70 °C
Measuring Body Material: Stainless Steel
Length: 123 mm
Diameter: 20 mm
