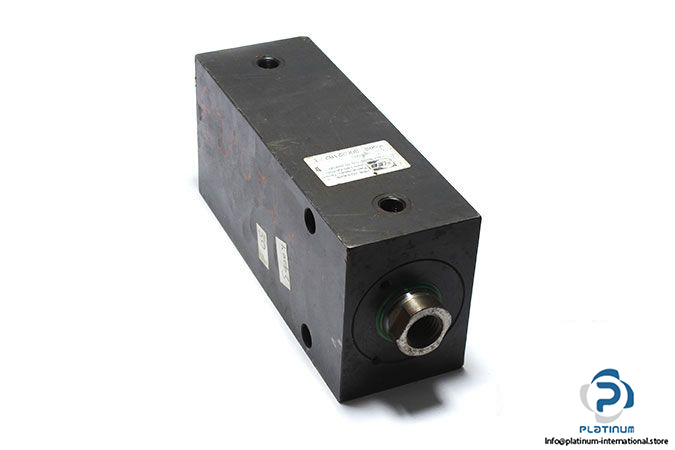

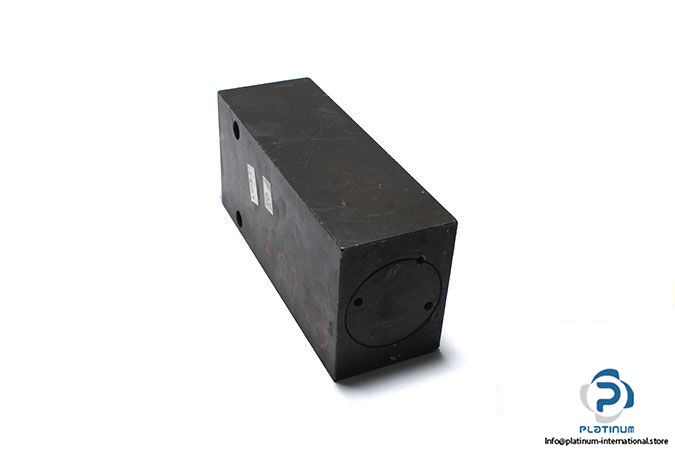

HEB BLZ400-1-50/32/100.00-209/M1 Hydraulic Block ‎Cylinder ‎

Manufacturer: HEB

Type: Hydraulic Block Cylinder

Model: BLZ 400-1-50/32/100.00-209/M1

Alt model: BLZ400-1-50/32/100-209/M1

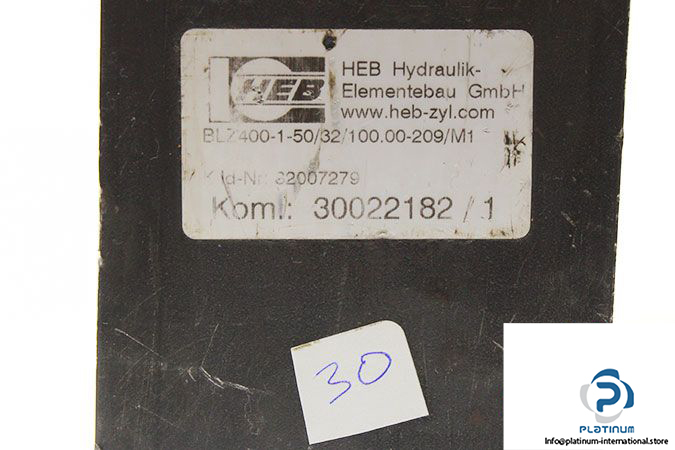

KOM No.: 30022182/1

Piston Diameter: 50 mm

Rod Diameter: 32 mm

Stroke: 100 mm

Cylinder Shape: Rectangle

Construction form: 1 – 2 cross borings, from 160 bar a support is necessary

Mode of operation: Double-acting, stroke-end cushioning at both sides

Maximum operating pressure: 400 bar

Piston rod thread: Female

Temperature range: 0 …. 180 °C

Connection: G ¼”

Weight: 11.1 kg
