Heidenhain ECN 113 2048 27S17-58 Absolute Encoder
Used
In stock1 unitReady to ship
399,99$
ABSOLUTE ENCODER
HEIDENHAIN ECN 113 2048 27S17-58 encoder offers high-resolution EnDat 2.2 interface, 8192 PPR, and reliable performance under harsh industrial conditions.1132/2204827S17-588192AbsoluteCountECNEncoderEnDatFeedbackFlangeHeidenhainIndustrialInterfaceIP64LineM23MotionPPR
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

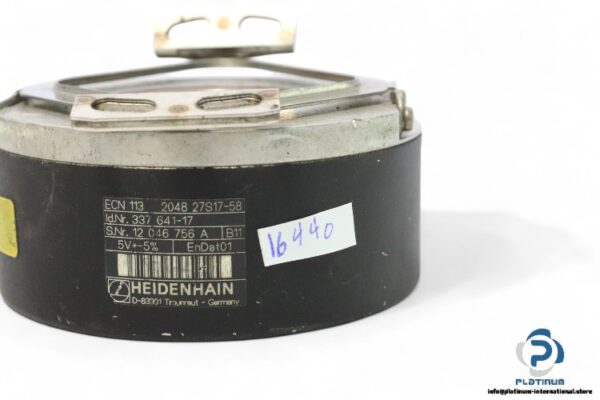

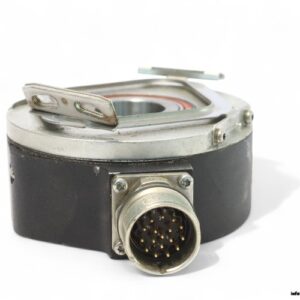

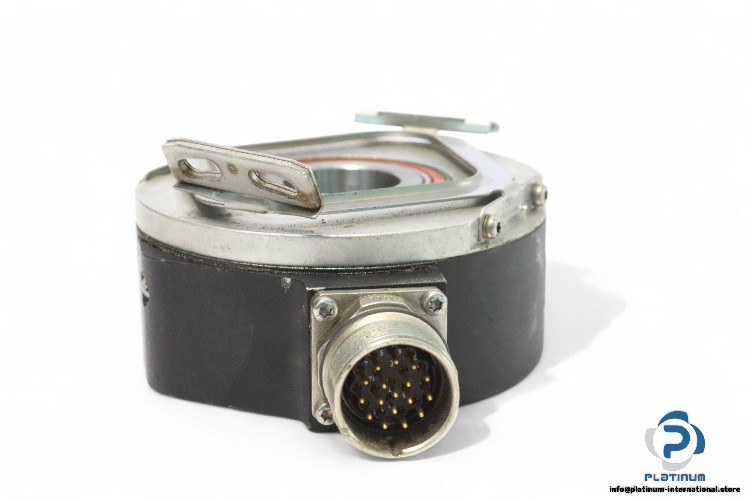

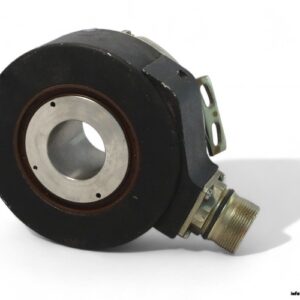

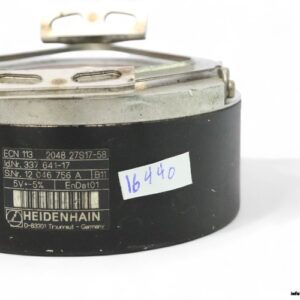

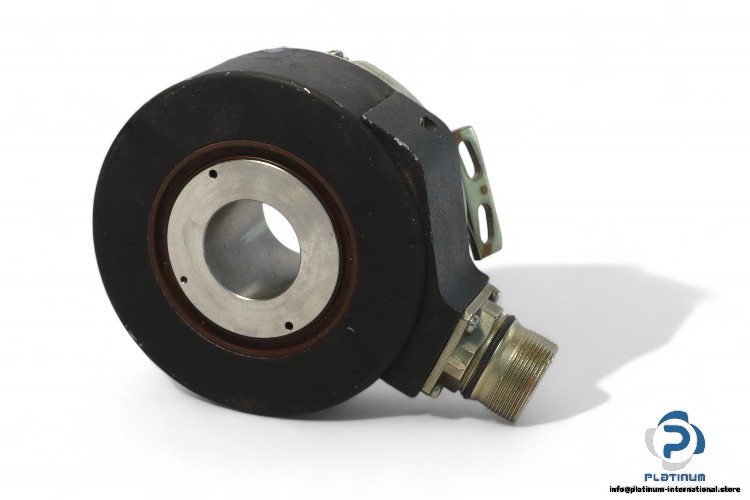

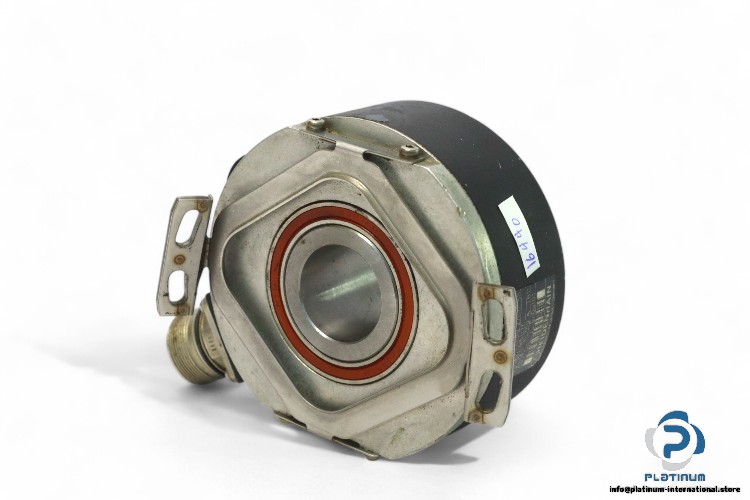

HEIDENHAIN ECN 113 2048 27S17-58 ABSOLUTE ENCODER
The HEIDENHAIN ECN113204827S1758 is a high-resolution absolute encoder designed for precision motion control in advanced automation and industrial environments. With EnDat 2.2 interface, robust build, and excellent temperature and speed tolerance, it delivers superior feedback reliability and durability.
Manufacturer: HEIDENHAIN
Type: Absolute Encoder
Model: ECN 113 2048 27S17-58
Part No.: 337641-17
| Interface | EnDat 2.2 |
| Positions Per Revolution | 8192 PPR (13 bits) |
| Line Counts | 2048 |
| Incremental Signals | 1 VPP |
| Electrical Permissible Speed Deviation | 600 rpm |
| Mechanical Permissible Speed | D > 30 mm: ‰¤ 4000 rpm; D ‰¤ 30 mm: ‰¤ 6000 rpm |
| Supply Voltage | 3.6 / 14 V DC |
| Current Consumption (without Load) | 5 V: ‰¤ 85 mA |
| Power Consumption (Max.) | 3.6 V: ‰¤ 620 mW / 14 V: ‰¤ 720 mW |
| Electrical Connection | Flange socket M23, radial / Cable 1 m or 5 m, with or without M23 coupling |
| Hollow Shaft | 25 mm |
| Connection | M23 flange socket, radial |
| Protection Class | IP64 |
| Operating Temperature | -40 / 100 °C |
