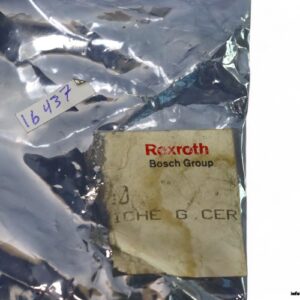

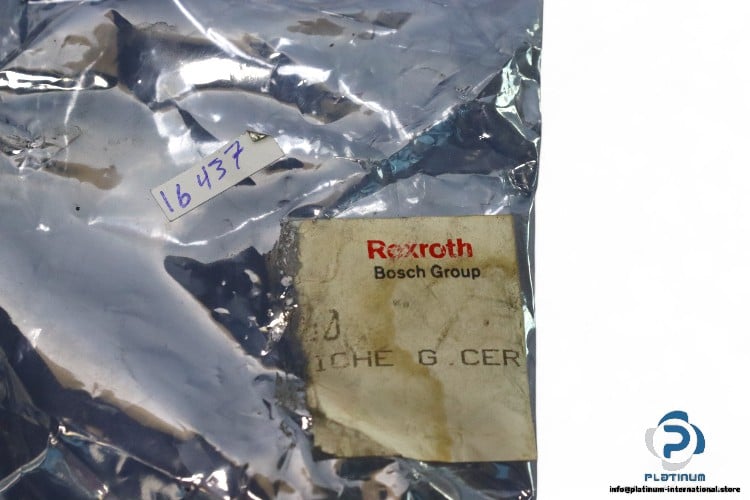

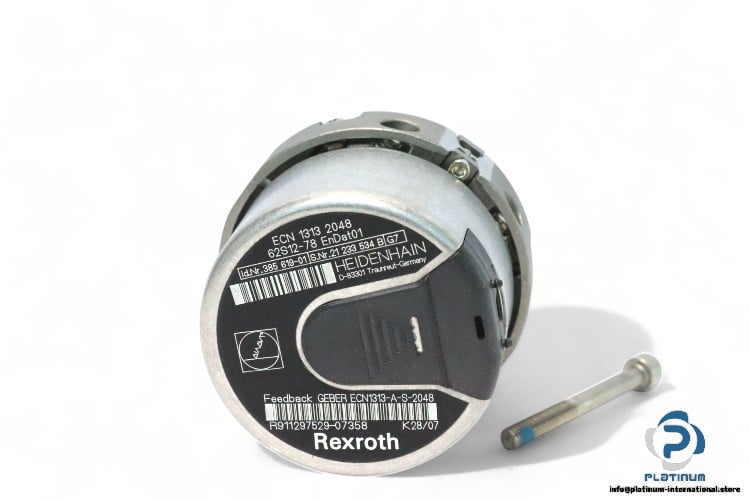

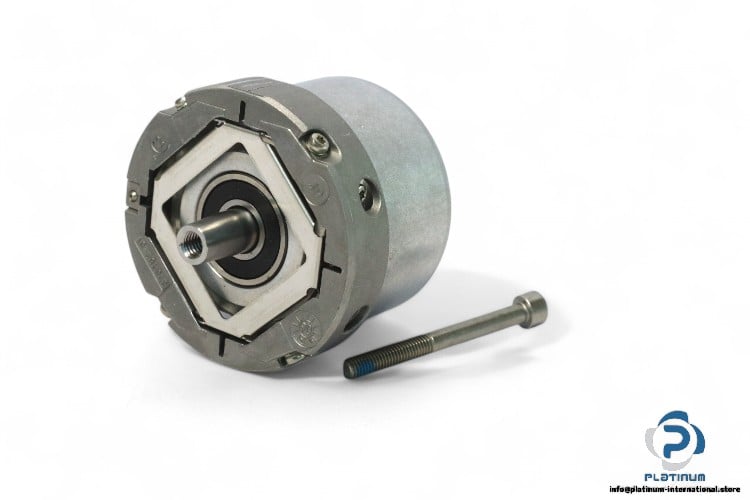

Heidenhain ECN 1313 2048 62S12-78 385 619-01 Incremental Encoder

Available on request

Incremental Encoder

The ECN 1313 by HEIDENHAIN/REXROTH is a 12-pin incremental encoder with EnDat01 protocol, 2048 resolution, and a 9.25 mm shaft for high-speed industrial motion systems.

Manufacturer
HEIDENHAIN/REXROTH
SKU
1059037
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HEIDENHAIN/REXROTH ECN 1313 Incremental Encoder

The HEIDENHAIN/REXROTH ECN 1313 is a high-precision incremental encoder engineered for demanding automation and motion control applications. With EnDat01 interface and compact design, it offers reliable signal transmission and high-speed operation in harsh industrial environments.

Manufacturer: HEIDENHAIN/REXROTH

Type: Incremental Encoder

Model: ECN 1313 2048 62S12-78

MNR: R911297529-07358

Part no.: 385 619-01

Ordering DesignationEnDat01
Calculation Time tcal9 µs
Clock Frequency2 MHz
Incremental Signals1 VPP
Cutoff Frequency “3 dB400 kHz
Electrical Connection12-pin
Supply VoltageDC 3.6 V to 14 V
Current Consumption (Typical)5 V: 85 mA (without load)
Shaft Diameter9.25 mm
Mechanical Permissible Speed n15000 rpm
Operating Temperature“40 / 115 °C
Protection Rating (EN 60529)IP40 when mounted

More From HEIDENHAIN/REXROTH

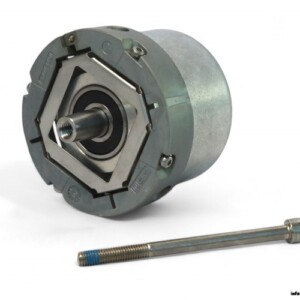

Heidenhain EQN 1325 2048 62S12-78 385 620-01 Absolute Rotary Encoder With Tapered Shaft
