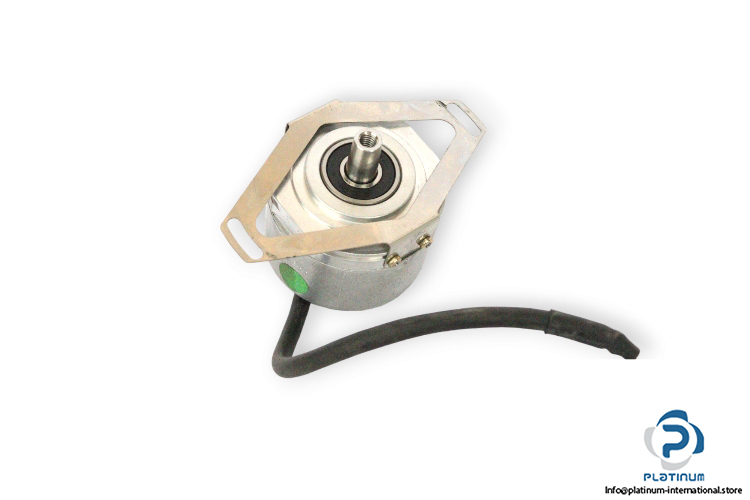

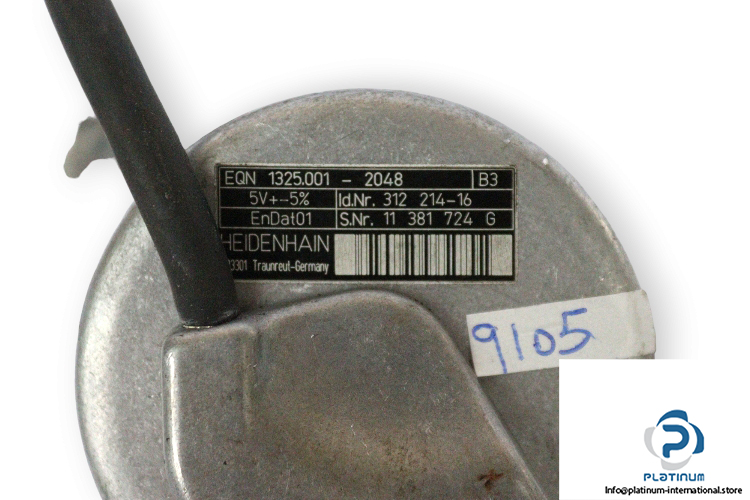

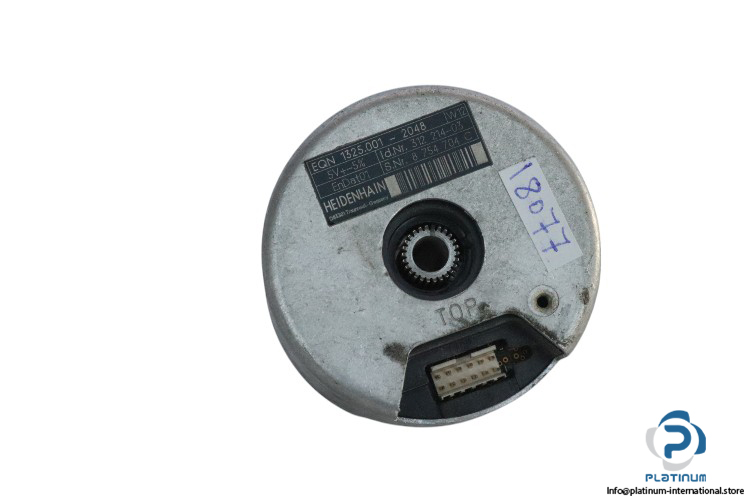

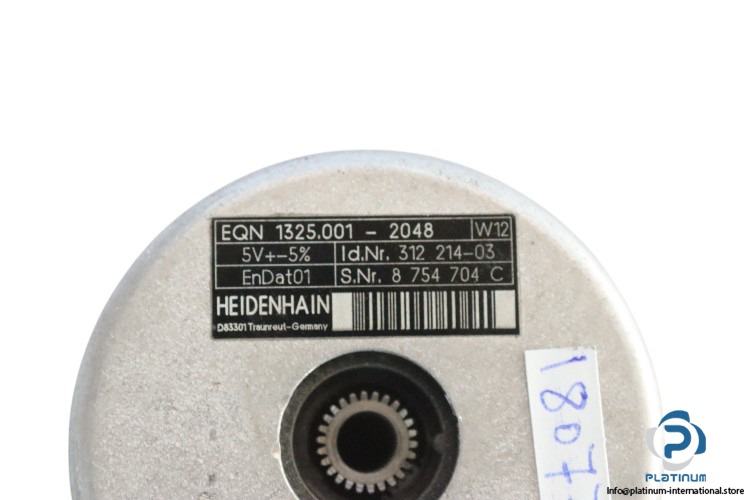

Heidenhain EQN 1325.001-2048 Absolute Rotary Encoder With Tapered Shaft

Available on request

HEIDENHAIN EQN 1325.001-2048 Absolute Rotary Encoder High-precision rotary encoder with tapered shaft, 8192 position values per revolution, 4096 revolutions, low power consumption, and wide operating temperature range of -40°C to 115°C.

Manufacturer
HEIDENHAIN
SKU
1059514
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HEIDENHAIN EQN 1325.001-2048 Absolute Rotary Encoder with Tapered Shaft

The HEIDENHAIN EQN 1325.001-2048 Absolute Rotary Encoder is an advanced encoder designed for precise and reliable position measurement in various industrial applications. With a tapered shaft and a protection rating of IP40, it is built to handle harsh environments while providing excellent accuracy and performance.

This encoder features a 9.25 mm shaft diameter and operates with a supply voltage range from 3.6 V to 14 V DC. It has low power consumption, consuming a maximum of 0.7 W at 3.6 V and 0.8 W at 14 V, and a current consumption of 105 mA at 5V. The encoder provides position values of 8192 per revolution (13 bits) and 4096 revolutions (12 bits), ensuring high precision.

With a fast calculation time of 9 µs and a clock frequency of 2 MHz, the encoder ensures high-speed processing and real-time data feedback. It features a low starting torque of just 0.01 Nm at 20 °C, making it ideal for applications requiring smooth, low-speed operation. The wide operating temperature range from -40°C to 115°C allows for versatility in extreme conditions.

  • Manufacturer: HEIDENHAIN
  • Type: Absolute Rotary Encoder with Tapered Shaft
  • Model: EQN 1325.001-2048
  • Part No.: 312 214-03
  • Shaft Diameter: 9.25 mm
  • Ordering Designation: EnDat01
  • Supply Voltage: 3.6 V to 14 V DC
  • Power Consumption (Maximum): 0.7 W at 3.6 V, 0.8 W at 14 V
  • Current Consumption: 105 mA at 5V
  • Electrical Connection: 12-pin
  • Position Values Per Revolution: 8192 (13 bits)
  • Revolutions: 4096 (12 bits)
  • Calculation Time: 9 µs
  • Clock Frequency: 2 MHz
  • Starting Torque: 0.01 Nm (at 20 °C)
  • Protection Rating: IP40
  • Operating Temperature: -40 to 115 °C

The HEIDENHAIN EQN 1325.001-2048 Absolute Rotary Encoder offers exceptional performance for industrial applications, ensuring high precision and reliability in the most demanding environments.
