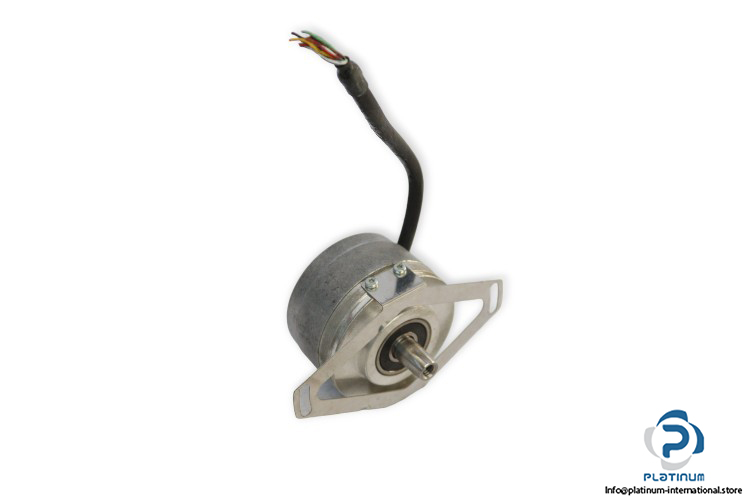

Heidenhain EQN 1325.020-2048/G2 Rotary Encoder
New
In stock2 unitsReady to ship
ROTARY ENCODER
Heidenhain EQN13250202048/G2 is a high-resolution rotary encoder with 8192 position values, 2048 ppr, and robust tapered shaft. Operating across a wide voltage range and temperature spectrum, it ensures accurate motion control in industrial systems.2048EncoderEQN13250202048/G2FeedbackHeidenhainHighIndustrialIP40MotionPositionPPRPrecisionResolutionRotarySensorshafttapered
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HEIDENHAIN EQN13250202048/G2 ROTARY ENCODER
The Heidenhain EQN13250202048/G2 rotary encoder is a high-resolution, precision feedback device designed for demanding industrial automation systems. With 8192 position values per revolution, tapered shaft design, and robust operating temperature tolerance, it ensures reliable performance in dynamic environments.
Manufacturer: Heidenhain
Type: Rotary Encoder
Model: EQN13250202048/G2
ID No.: 538 234-01
SN: 19 808 046 A
| Supply Voltage | 5 V DC (4.75 / 30 V DC) |
| Power Consumption | 675 mW @ 4.75 V, 875 mW @ 30 V |
| Current Consumption (Typical) | 85 mA @ 5 V |
| Calculation Time tcal | <5 µs |
| Incremental Signals | 1 VPP1 |
| Line Count | 512 / 2048 |
| Natural Frequency Fn (Typical) | 1800 Hz |
| Shaft | Tapered shaft ¬ (9.25 mm); taper: 1:10 |
| Electrical Connection | 16-pin (12+4) PCB connector |
| Electrically Permissible Speed/Error | 15000 rpm / ±12 LSB |
| Starting Torque (Typical) | 0.01 Nm |
| Position Values Per Revolution | 8192 (13 bits) |
| Revolutions | 2048 ppr |
| Operating Temperature | -40 / 115 °C |
| Protection Rating | IP40 (when mounted) |
