HEIDENHAIN EQN 424-512-27S17-6F ABSOLUTE ENCODER with POSITION SENSOR
Used
Available on request
ABSOLUTE ENCODER WITH POSITION SENSOR
HEIDENHAIN EQN 424-512-27S17-6F Absolute Encoder with ASM WS19KT-3000-TSSI sensor delivers high-resolution, reliable position feedback for industrial automation systems. Features 512-line count, 10“30 VDC input, and 3000 mm measurement range.3000mm424-512-27S17-6FAbsoluteASMassemblyAutomationEncoderEQNFeedbackHeidenhainHighIndustrialIP67LinearOutputPositionResolutionSensorSerialSynchronousWithWS19KT-3000-TSSI
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

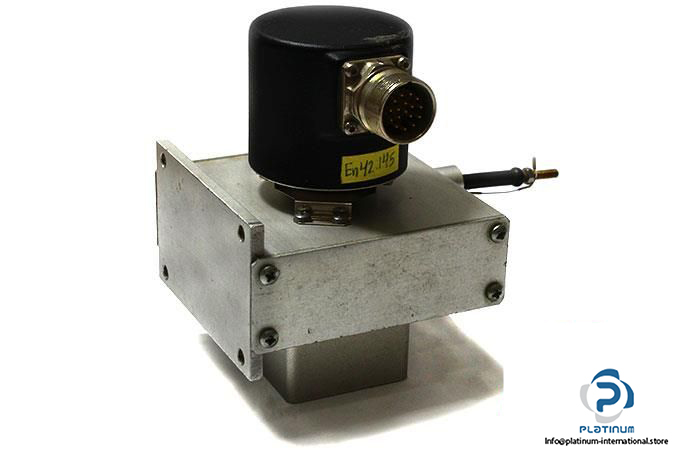

HEIDENHAIN EQN 424-512-27S17-6F ABSOLUTE ENCODER WITH ASM WS19KT-3000-TSSI SENSOR
High-precision absolute encoder from HEIDENHAIN, integrated with a robust position sensor from ASM, designed for accurate feedback in industrial automation and positioning systems. This assembly offers durable construction with IP-rated protection and exceptional resolution for fine motion control.

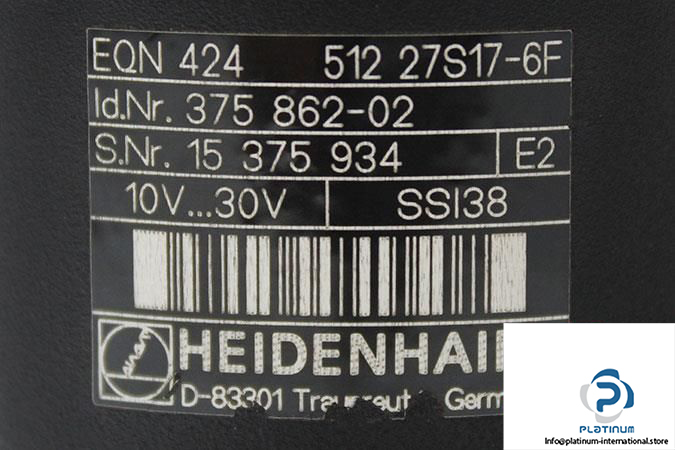

Encoder Specifications:
- Manufacturer: HEIDENHAIN
- Type: Absolute Encoder
- Model: EQN 424-512-27S17-6F
- ID No.: 375 862-02
- SN: 15 375 934 / E2
- Voltage Supply: 10 “ 30 VDC
- Line Counts: 512 lines
- Protection Class: IP67 at housing; IP64 at shaft inlet

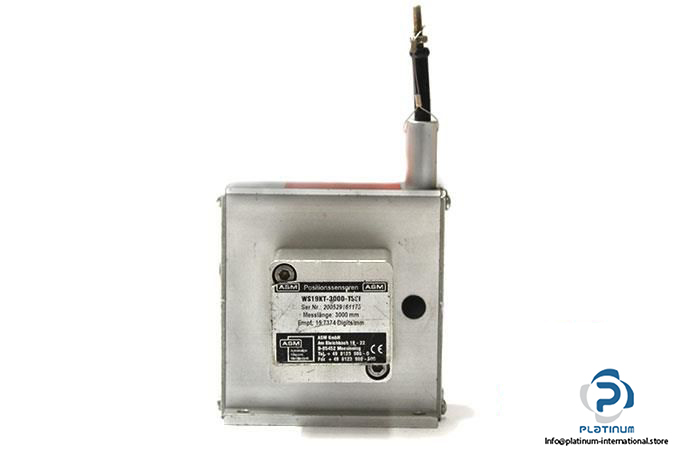

Attached Position Sensor:
- Manufacturer: ASM
- Type: Position Sensor
- Model: WS19KT-3000-TSSI
- SN: 200529161175
- Measurement Range: 3000 mm
- Output Type: Absolute encoder with synchronous serial output
- Resolution: 15.7374 digits/mm
- Resolution for 12-bit/rev: 0.063 mm / 260.09 mm
- Linearity: ±0.05% f.s. (standard)
