Heidenhain ROD 1020 3600 01-03 Incremental Rotary Encoder

In stock1 unitReady to ship

INCREMENTAL ROTARY ENCODER

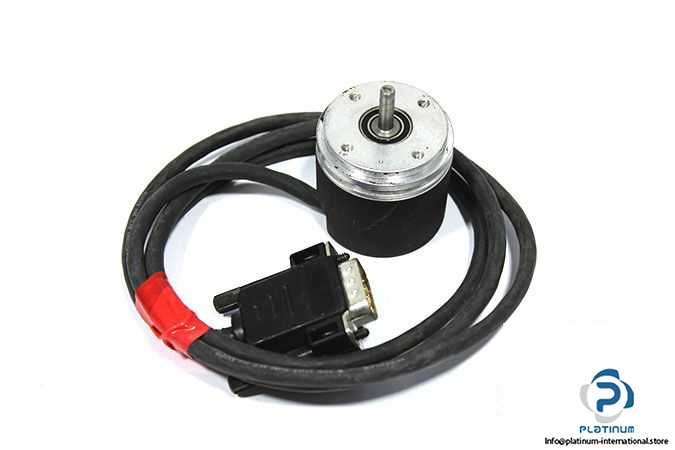

Heidenhain ROD 1020 3600 01-03 is a high-resolution rotary encoder with 3600 lines, solid 4 mm shaft, TTL output, and a 5 V power supply. Engineered for precision motion control applications.

Manufacturer
HEIDENHAIN
SKU
986689
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HEIDENHAIN ROD 1020 3600 01-03 INCREMENTAL ROTARY ENCODER

This high-precision incremental rotary encoder from Heidenhain is engineered for reliability and accuracy in motion control systems. Ideal for demanding industrial environments, the ROD 1020 provides stable TTL output and easy installation via its synchro flange.

Manufacturer: Heidenhain

Type: Incremental Rotary Encoder

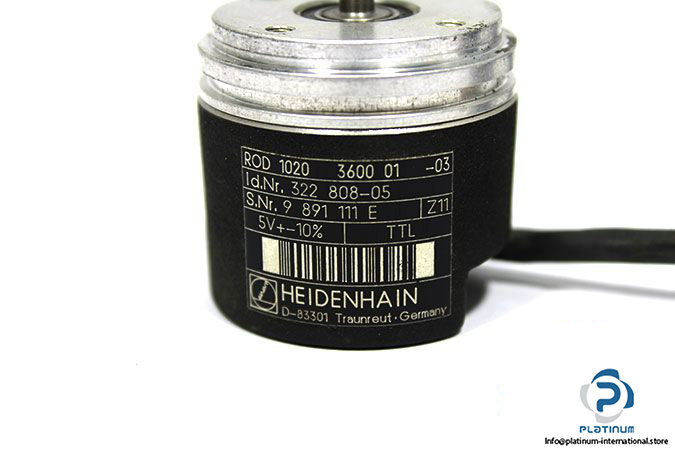

Model: ROD 1020 3600 01-03

ID Number: 322808-05

Serial Number: 9 891 111 E

Shaft Size4 mm
Shaft TypeSolid shaft, length 12.5 mm
Line Count3600
Output SignalTTL

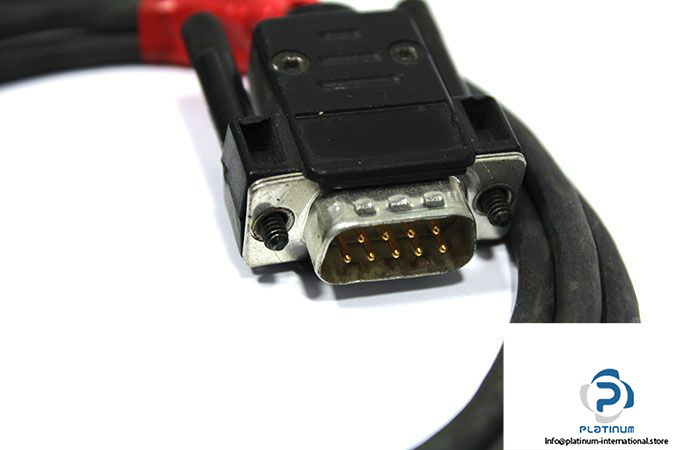

Electrical ConnectionCable; 95 cm length, D294999, male, 9-pin
Supply Voltage5 V (±10%)
Flange VersionSynchro flange DIA 36.5 mm, centering collar 33 mm, bolt circle DIA 26 mm, 4 x M3
