Heidenhain ROD 323.001-1024 Incremental Encoder

Available on request

400,00$

INCREMENTAL ENCODER

HEIDENHAIN ROD 323.001-1024 is a 1024 PPR encoder with TTL (RS 422) output, 15 mm hollow shaft, 5 VDC supply, and up to 8500 rpm speed. Ideal for precision in CNC machine applications.

Manufacturer
HEIDENHAIN
SKU
966167
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

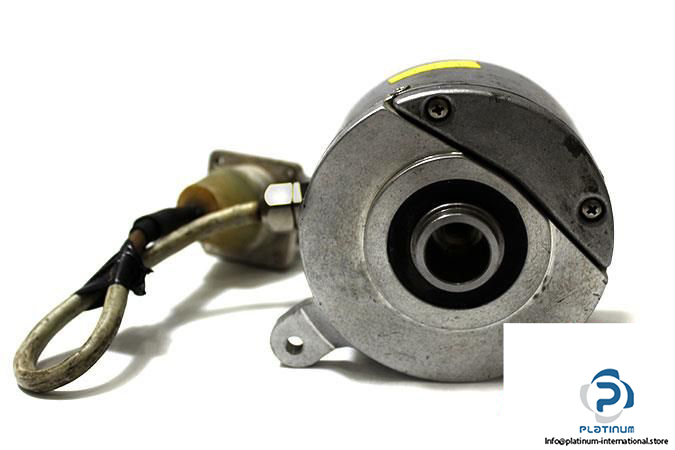

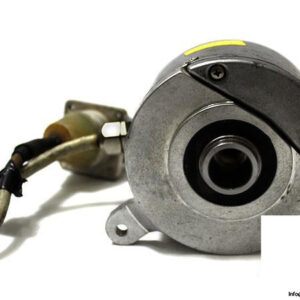

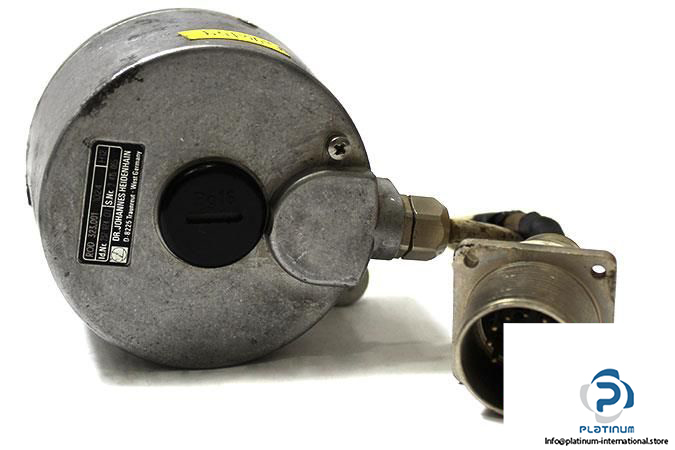

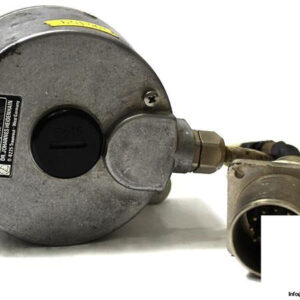

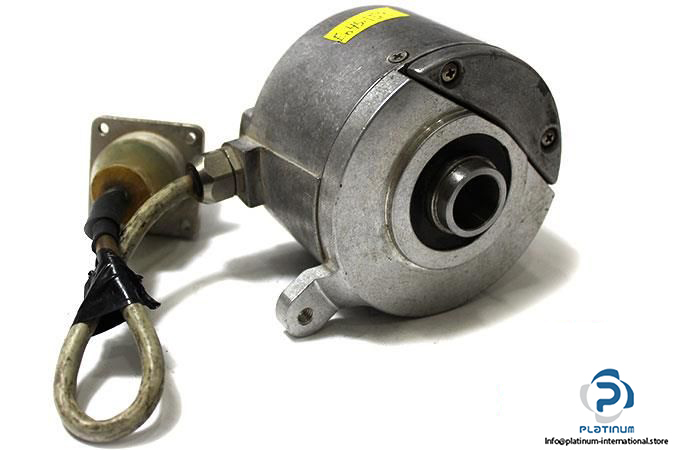

HEIDENHAIN ROD 323.001-1024 INCREMENTAL ENCODER

The HEIDENHAIN ROD 323.001-1024 is a high-resolution incremental encoder designed for high-precision motion control in CNC machinery. Built with a durable hollow shaft design and advanced TTL (RS 422) output, it ensures reliable signal transmission and robust performance in demanding environments.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

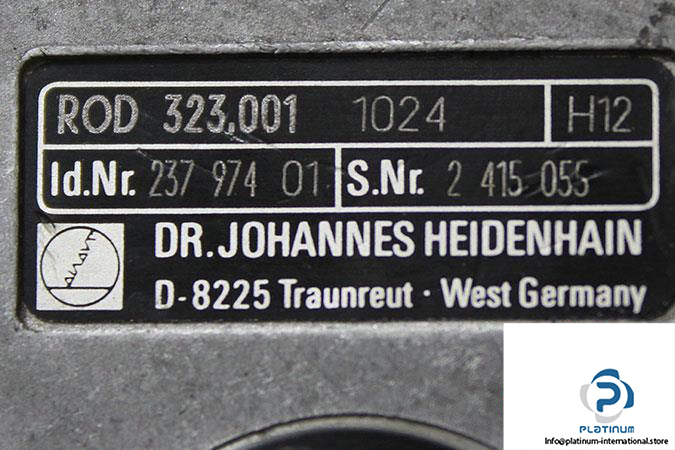

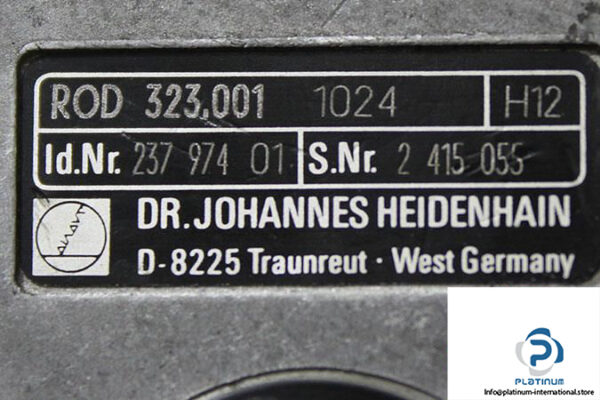

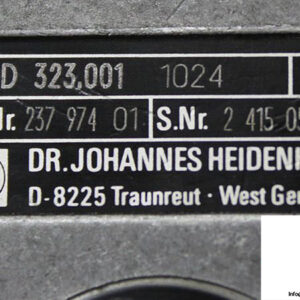

Model: ROD 323.001-1024

ID No.: 237 974 01

Serial No.: 2 415 055

Installed for: Mostly on CNC machine industry

Shaft DesignHollow shaft
Shaft Diameter15 mm
Voltage Supply5 VDC
Resolution1024 Pulses Per Revolution (PPR)
Output SignalsTTL (RS 422)
Maximum Speed8500 rpm
Max. Pulse Frequency300 kHz
Protection ClassIP 64
Max Temperature100 °C
