Heidenhain ROD 420-50-01-03 Incremental Encoder

In stock1 unitReady to ship

325,00$

INCREMENTAL ENCODER

The HEIDENHAIN ROD 420-50-01-03 delivers accurate motion control with a 50 PPR resolution and TTL (RS 422) output. Ideal for precision industrial automation requiring 5 VDC supply and IP67-rated housing protection.

Manufacturer
HEIDENHAIN
SKU
966124
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

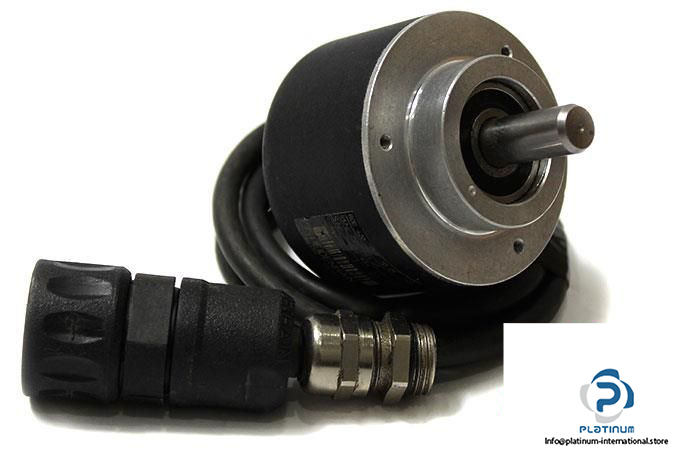

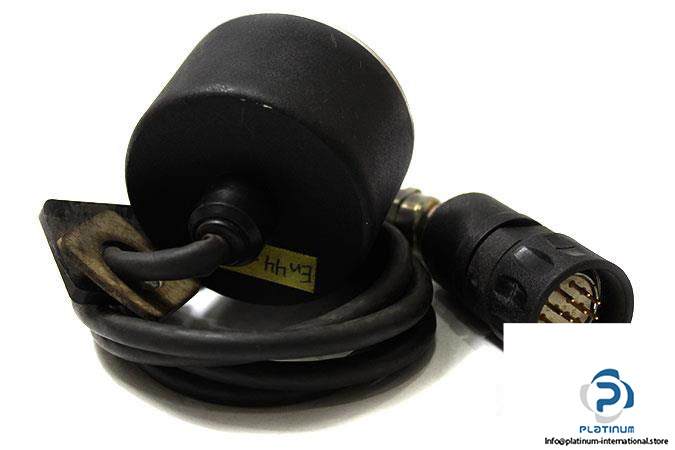

HEIDENHAIN ROD 420-50-01-03 INCREMENTAL ENCODER

Engineered by HEIDENHAIN, the ROD 420-50-01-03 is a precision incremental encoder designed to deliver accurate position feedback in demanding industrial environments. With a durable construction and high resolution, it is ideal for automation systems and motion control applications.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

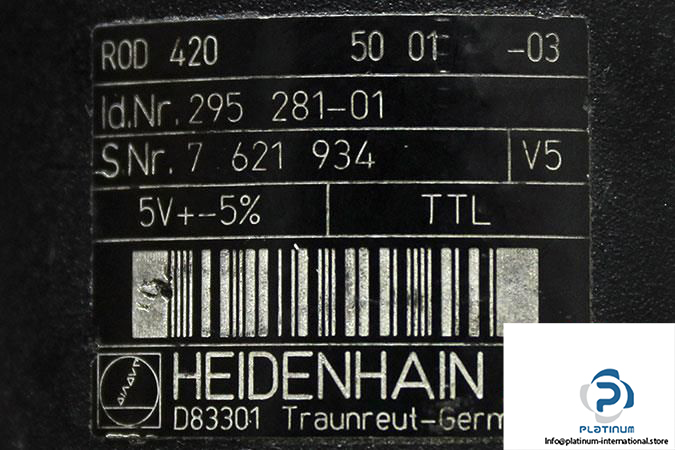

Model: ROD 420-50-01-03

ID No.: 295 281-01

S No.: 7 621 934

Flange DesignSynchro Flange
Shaft DesignSolid Shaft
Shaft Diameter10 mm
Voltage Supply5 VDC
Resolution50 Pulse per Revolution (PPR)
Max. Current Consumption120 mA
Signal OutputTTL (RS 422)
Mechanical Speed16000 rpm
Max. Pulse Frequency300 kHz
Protection ClassIP67 at housing, IP64 at shaft inlet
Max. Operating Temperature100 °C
