Heidenhain ROD 420 900 02S12-03 Incremental Encoder

Available on request

350,00$

INCREMENTAL ENCODER

HEIDENHAIN ROD-420-900-02S12-03 delivers 900 PPR with TTL output, 5 VDC supply, and IP67/IP64 protection, ideal for high-speed industrial motion control systems.

Manufacturer
HEIDENHAIN
SKU
966122
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

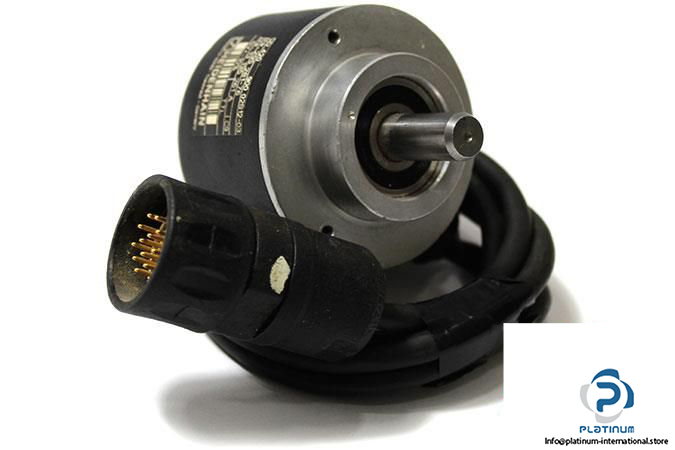

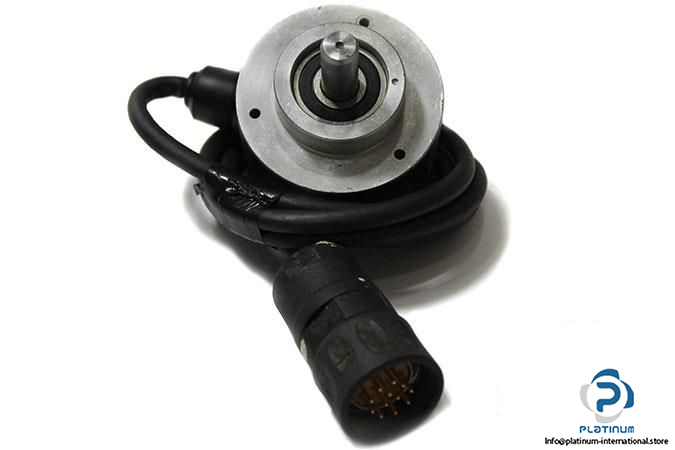

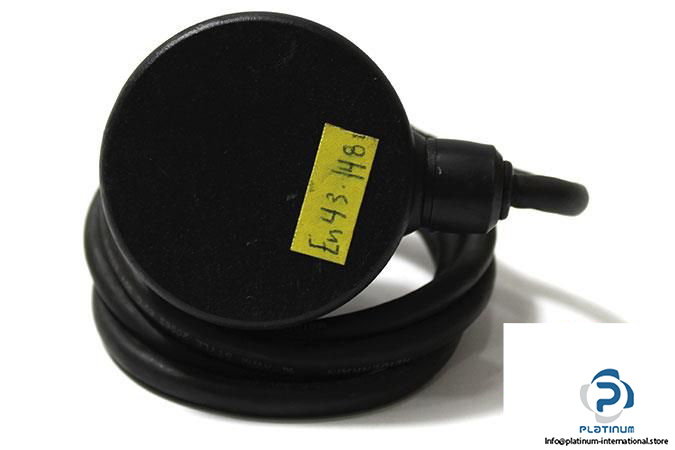

HEIDENHAIN ROD-420-900-02S12-03 INCREMENTAL ENCODER

The HEIDENHAIN ROD-420-900-02S12-03 is a high-precision incremental encoder engineered for accuracy, durability, and high-speed performance. Designed with a synchro flange and solid shaft configuration, it provides reliable pulse feedback for motion control applications in demanding industrial environments.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

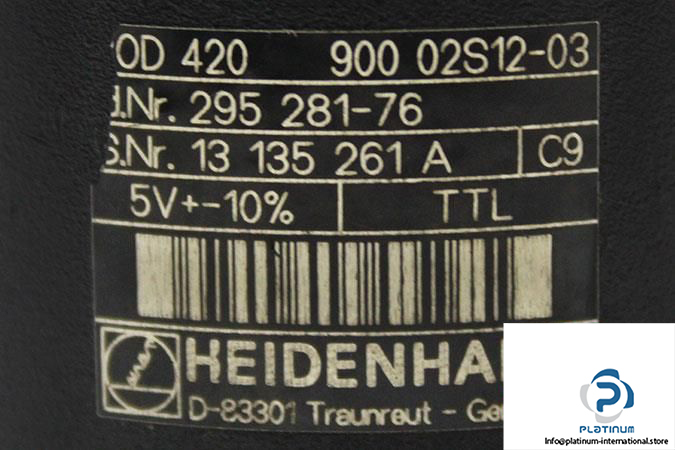

Model: ROD-420-900-02S12-03

ID No.: 295 281-76

S/N: 13 135 261 A

Flange DesignSynchro flange
Shaft DesignSolid shaft
Shaft Diameter10 mm
Voltage Supply5 VDC
Resolution900 PPR (Pulse per revolution)
Max. Current Consumption120 mA
Signal OutputTTL (RS 422)
Mechanical Speed16000 rpm
Max. Pulse Frequency300 kHz
Protection ClassIP67 at housing, IP64 at shaft inlet
Max. Temperature100 °C
