Motion Control Rotary Encoders

Heidenhain ROD 426.011-400 Incremental Encoder

Name: HEIDENHAIN ROD 426.011-400 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966126
Price: 250.00 USD
Availability: InStock





Used

In stock1 unitReady to ship

250,00$

INCREMENTAL ENCODER

HEIDENHAIN ROD 426.011-400 incremental encoder delivers 400 PPR resolution, TTL output, and up to 16000 rpm operation. Features a solid 6 mm shaft, synchro flange, and IP67/IP64 protection for industrial environments.

Manufacturer

HEIDENHAIN

SKU

966126

Category

Rotary Encoders

Condition

Used

400 426.011-400 Control Encoder Flange Heidenhain High-Speed Incremental IP67 Motion PPR ROD RS422 shaft Solid Synchro TTL

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

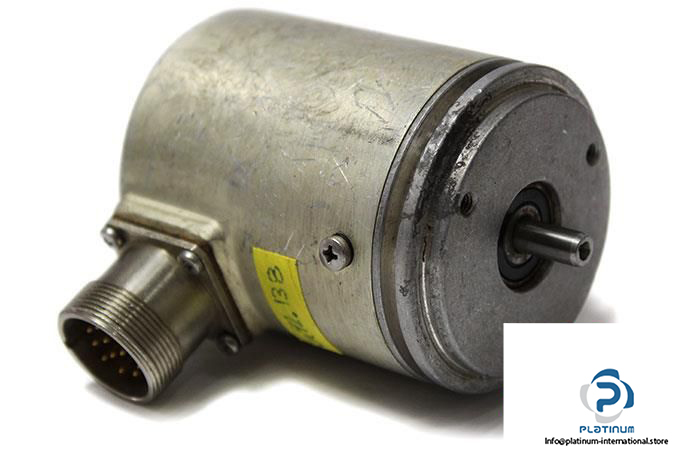

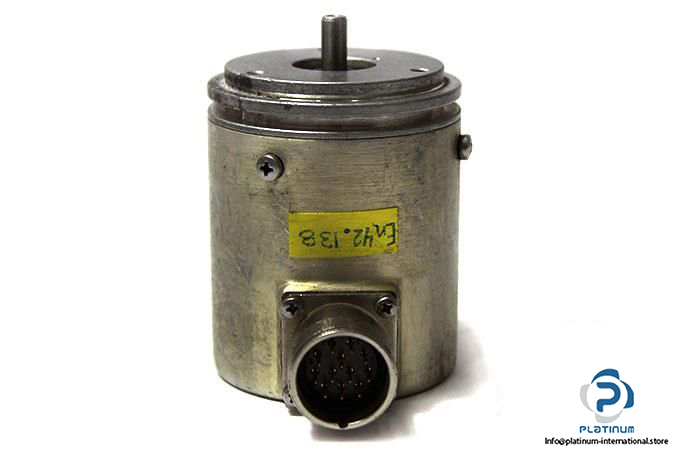

HEIDENHAIN ROD 426.011-400 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426.011-400 is a high-precision incremental encoder built to support high-speed, high-resolution industrial motion control systems. Engineered with a robust solid shaft and synchro flange, this encoder offers outstanding accuracy and environmental resistance.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

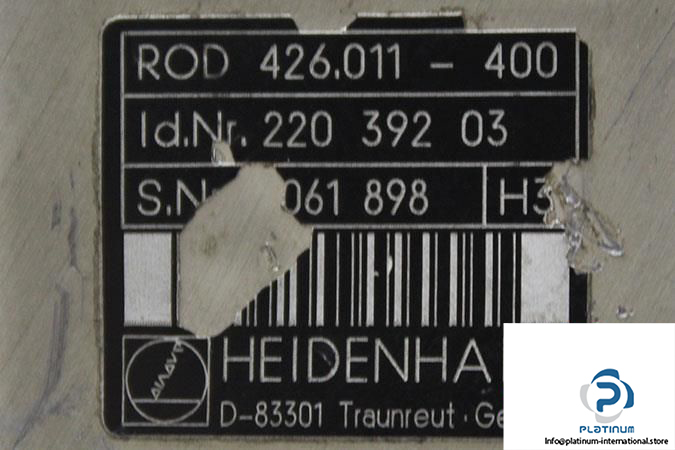

Model: ROD 426.011-400

ID No.: 220 392 03

Flange Design	Synchro flange
Shaft Design	Solid shaft
Shaft Diameter	6 mm
Voltage Supply	5 VDC
Resolution	400 Pulse per Revolution (PPR)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max Speed	16000 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at housing, IP64 at shaft inlet (IP66 upon request)
Max Temperature	100 °C
