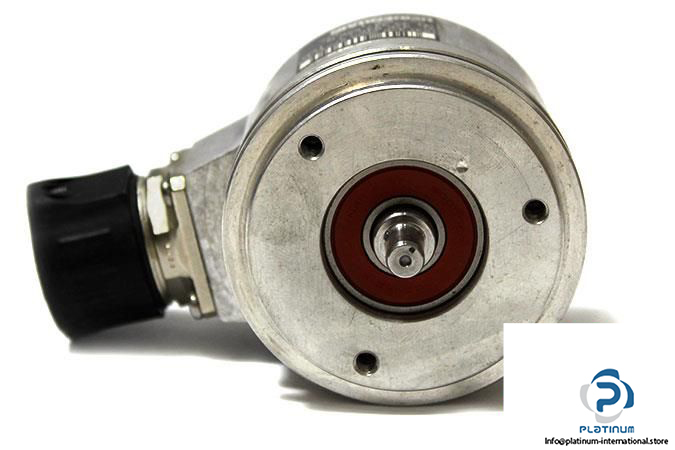

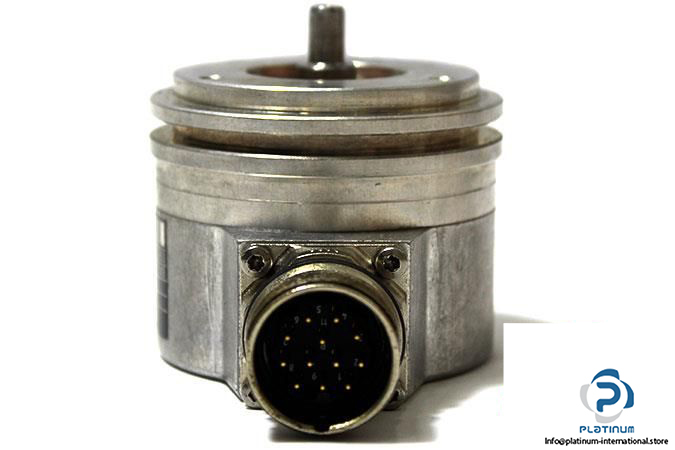

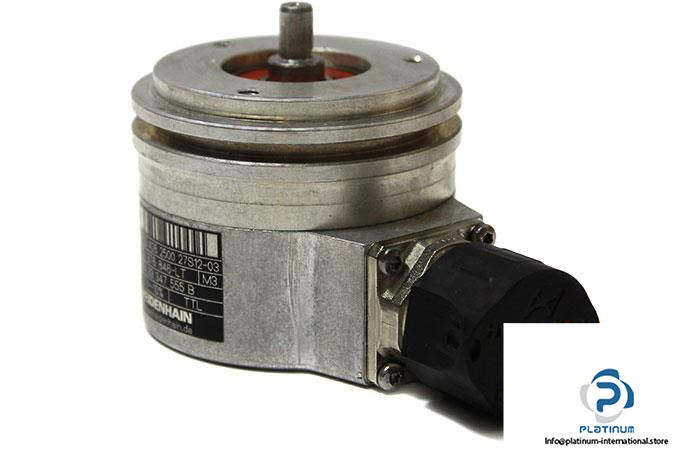

Heidenhain ROD 426 2500 27S12-03 Incremental Encoder

Available on request

400,00$

INCREMENTAL ENCODER

HEIDENHAIN ROD 426 is a high-resolution 2500 PPR incremental encoder with solid shaft and synchro flange, operating at 5 VDC with TTL signal output. Ideal for precision motion systems up to 16000 rpm.

Manufacturer
HEIDENHAIN
SKU
966566
Condition
New
Used In stock
This product is also available used
View Used Version →
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HEIDENHAIN ROD 426 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426 2500 27S12-03 is a high-performance incremental encoder built for precision positioning and motion control in demanding industrial environments. With a robust design and high resolution of 2500 PPR, it ensures reliable signal output and long-term accuracy, suitable for integration into advanced automation systems.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

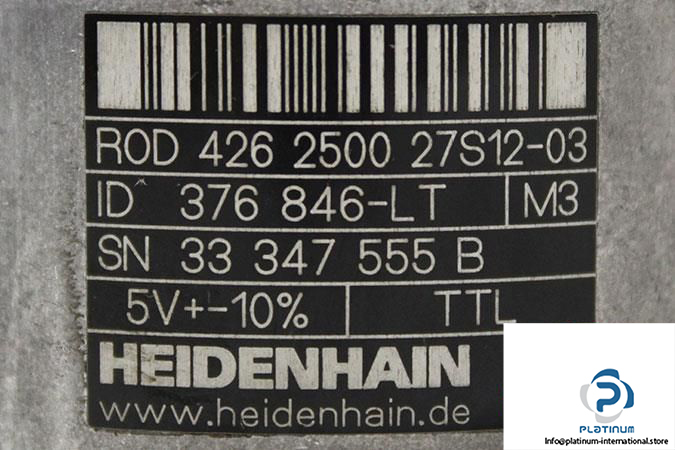

Model: ROD 426 2500 27S12-03

ID: 376 846-LT

S No.: 33 347 555 B

Flange DesignSynchro flange
Shaft DesignSolid shaft
Shaft Diameter6 mm
Voltage Supply5 VDC
Resolution2500 Pulse per revolution (PPR)
Max. Current Consumption120 mA
Signal OutputTTL (RS 422)
Max Speed16000 rpm
Max. Pulse Frequency300 kHz
Protection ClassIP67 at housing, IP64 at shaft inlet
Max Temperature100 °C
