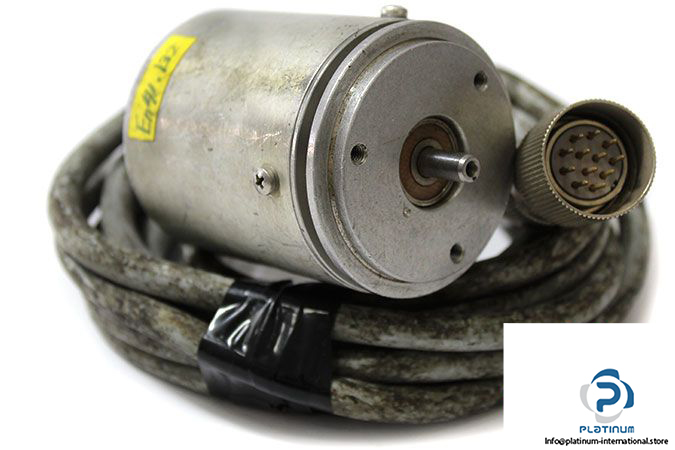

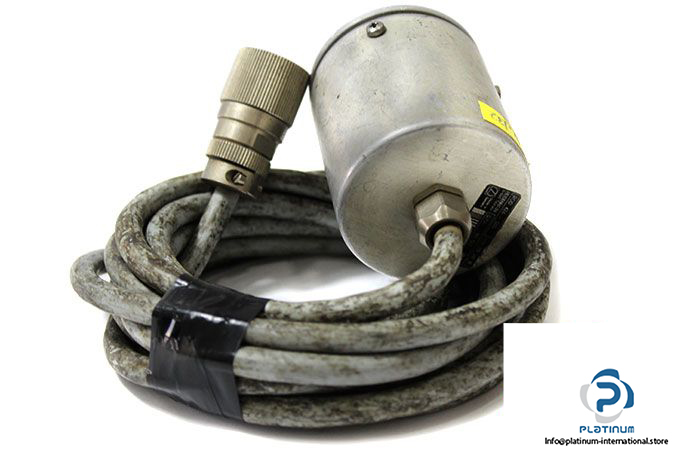

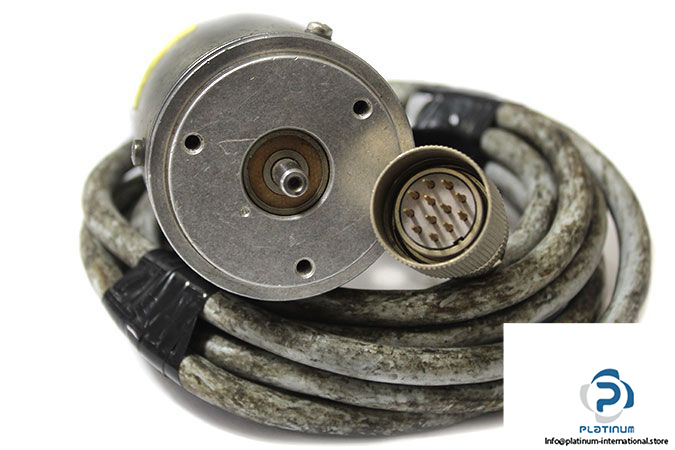

Heidenhain ROD 426–500 Incremental Encoder

In stock1 unitReady to ship

200,00$

INCREMENTAL ENCODER

HEIDENHAIN ROD 426-500 incremental encoder with 500 PPR, 6 mm solid shaft, TTL (RS 422) output, and IP67 protection, ideal for high-speed precision applications.

Manufacturer
HEIDENHAIN
SKU
968925
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

HEIDENHAIN ROD 426-500 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426-500 is a high-precision incremental encoder engineered for demanding industrial environments. With a resolution of 500 pulses per revolution and robust build quality, it ensures reliable position feedback in automation and motion control systems.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

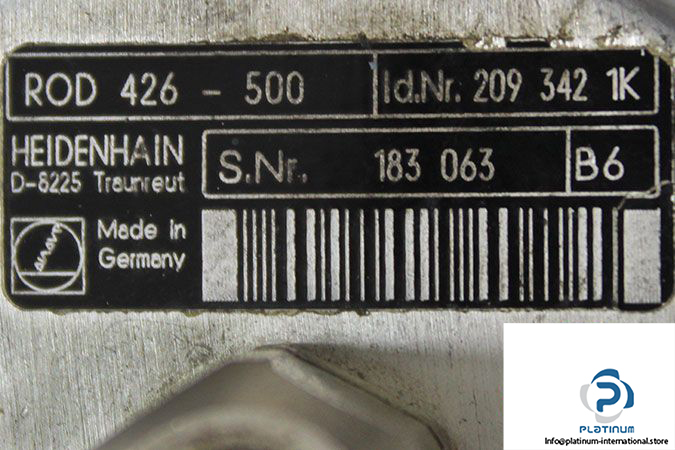

Model: ROD 426-500

ID No.: 209 342 1K

SN: 183 063

Flange DesignSynchro Flange
Shaft DesignSolid Shaft
Shaft Diameter6 mm
Voltage Supply5 VDC
Resolution500 PPR (Pulses Per Revolution)
Max. Current Consumption120 mA
Signal OutputTTL (RS 422)
Max. Speed16000 RPM
Max. Pulse Frequency300 kHz
Protection ClassIP67 at Housing, IP64 at Shaft Inlet (IP66 Upon Request)
Max. Temperature100 °C
