Heidenhain ROD 431.025-1024 Incremental Encoder
Used
Available on request
450,00$
INCREMENTAL ENCODER
HEIDENHAIN ROD 431.025-1024 is a high-speed, high-resolution incremental encoder with a solid 6 mm shaft, IP66 protection, and 1024 PPR output”ideal for precision automation.1024431.025-10246AutomationEncoderHeidenhainHighHTLIncrementalIndustrialIP66mmOutputPPRRODshaftSolidSpeed
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

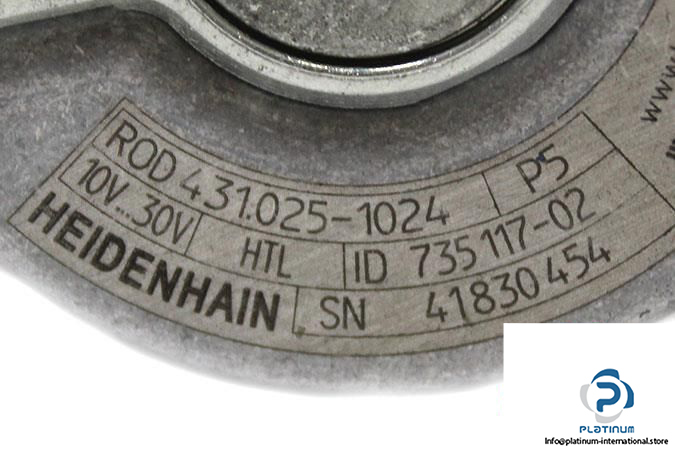

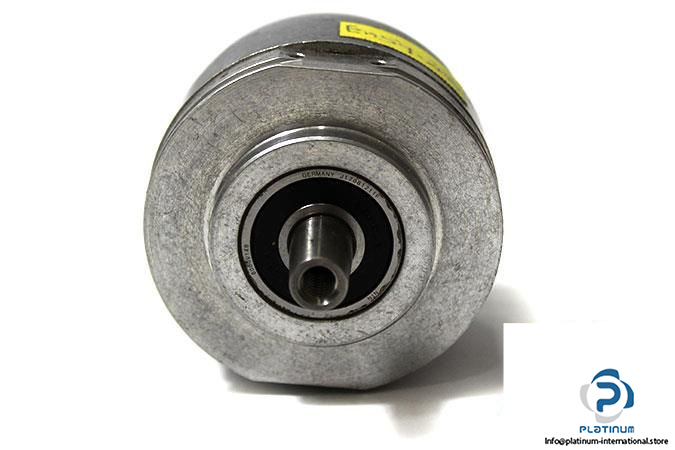

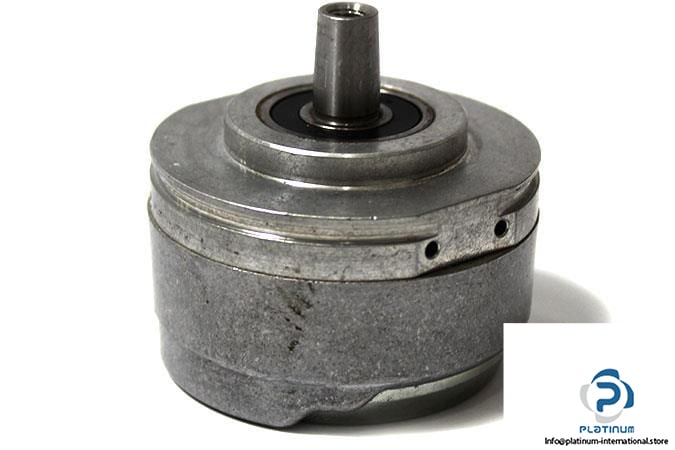

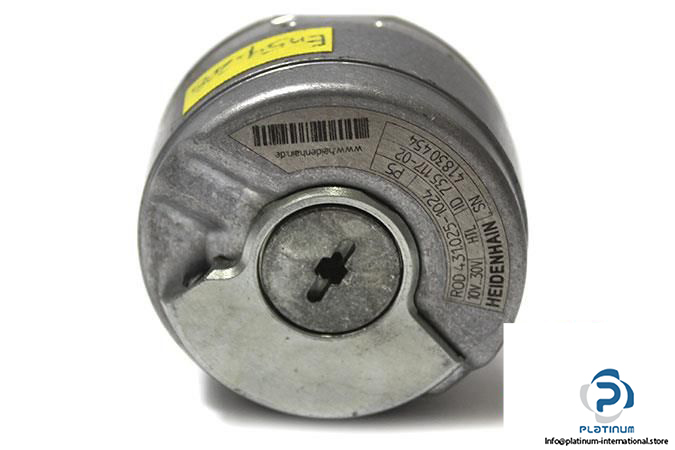

HEIDENHAIN ROD 431.025-1024 INCREMENTAL ENCODER
The HEIDENHAIN ROD 431.025-1024 is a precision incremental encoder engineered for high-speed and high-resolution industrial applications. With a robust IP66 rating and push-pull HTL output, it ensures accurate feedback in demanding environments.
Manufacturer: HEIDENHAIN
Type: Incremental Encoder
Model: ROD 431.025-1024
ID.Nr.: 735 117-02
Serial No.: 41830454
| Shaft Design | Solid shaft |
| Shaft Diameter | 6 mm |
| Voltage Supply | 10 / 30 VDC |
| Resolution | 1024 Pulse per Revolution (PPR) |
| Max. Current Consumption | 120 mA |
| Signal Output | Push pull (HTL) |
| Max Speed | 16000 rpm |
| Max. Pulse Frequency | 300 kHz |
| Protection Class | IP 66 |
| Max Temperature | 100 °C |
