Heidenhain ROD 486 1000 03S12-03 295 466-0Z Incremental Encoder

Name: HEIDENHAIN ROD 486 1000 03S12-03 295 466-0Z INCREMENTAL ENCODER
SKU: 1059034
Availability: LimitedAvailability

heidenhain-ROD-486-1000-03S12-03-295-466-0Z-incremental-encoder-(new)

heidenhain-ROD-486-1000-03S12-03-295-466-0Z-incremental-encoder-(new)-1

heidenhain-ROD-486-1000-03S12-03-295-466-0Z-incremental-encoder-(new)-2

heidenhain-ROD-486-1000-03S12-03-295-466-0Z-incremental-encoder-(new)-3

New

In stock1 unitReady to ship

INCREMENTAL ENCODER

HEIDENHAIN ROD486100003S12-03 delivers 1000 ppr resolution with a 6 mm shaft, high-speed tolerance (up to 16000 rpm), and IP67 protection”ideal for industrial automation systems.

Manufacturer

HEIDENHAIN

SKU

1059034

Category

Rotary Encoders

Condition

New

1 1000 6mm Control Encoder Heidenhain High-Speed Incremental Industrial Interface IP67 Motion PPR Protection ROD486100003S12-03 Rotary shaft Vpp

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

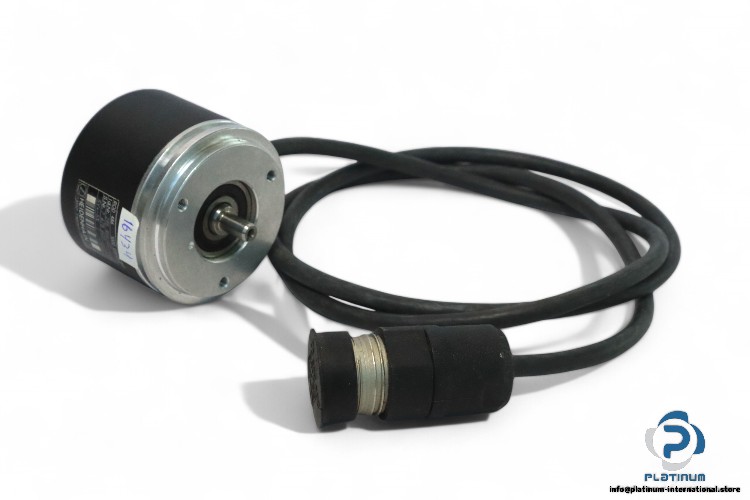

HEIDENHAIN ROD486100003S12-03 INCREMENTAL ENCODER

The HEIDENHAIN ROD486100003S12-03 is a high-precision incremental encoder built for industrial environments demanding reliability and accuracy. With a compact design and high-speed capability, it delivers consistent performance in challenging conditions.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

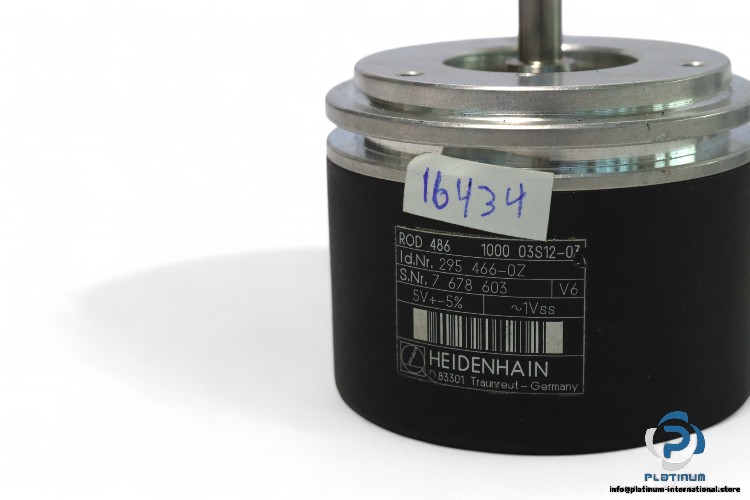

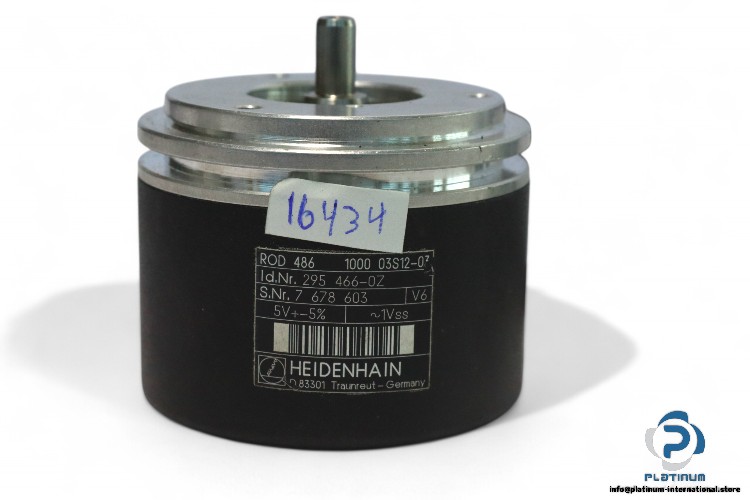

Model: ROD486100003S12-03

Part No.: 295466-0Z

Serial No.: 7 678 603

Line Counts	1000 ppr
Shaft Diameter	6 mm
Interface	1 VPP
Mechanical Permissible Speed N	16000 rpm
Cutoff Frequency “3 dB	180 kHz
Supply Voltage	DC 5 V ±0.5 V
Current Consumption Without Load	120 mA

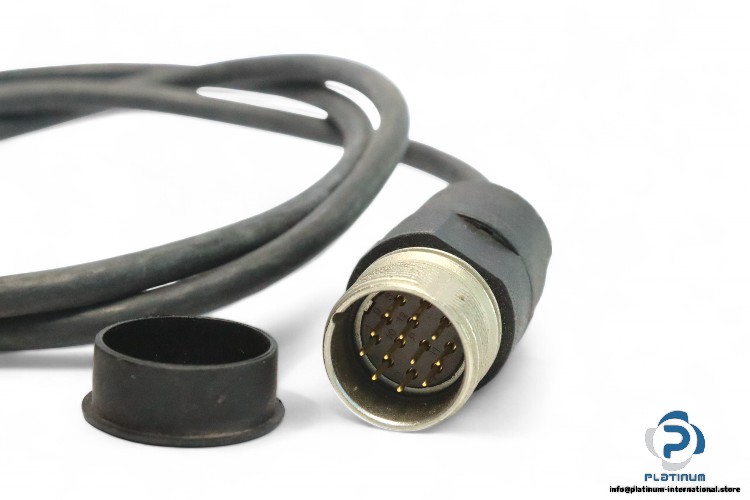

Electrical Connection	Cable (1 m) with M23 coupling (12 pin)
Protection Rating	IP67 at housing; IP64 at shaft inlet (IP66 upon request)
