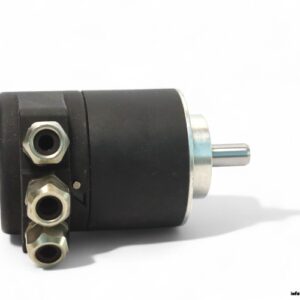

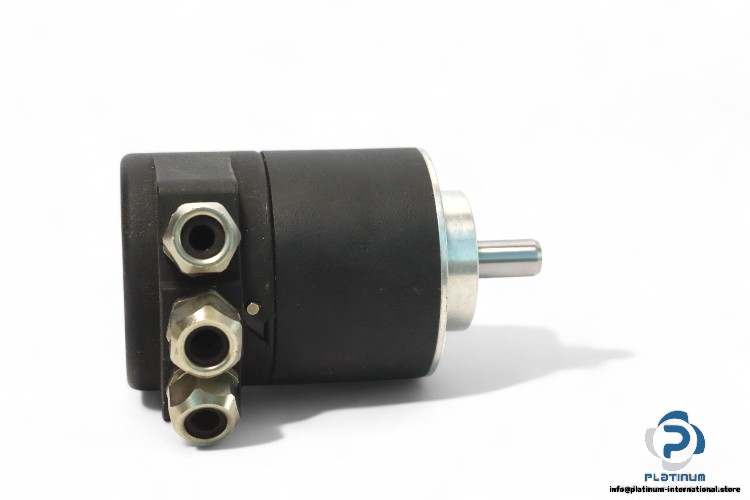

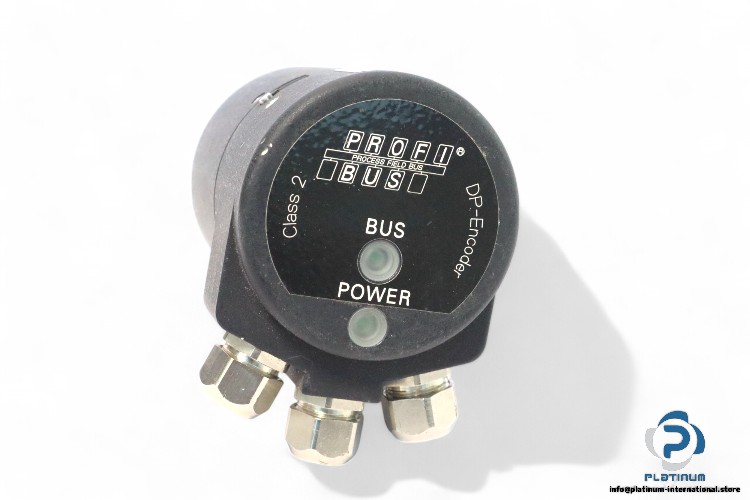

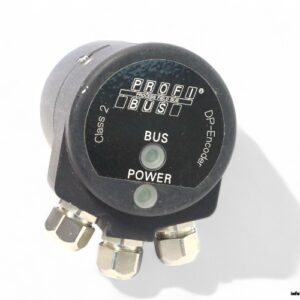

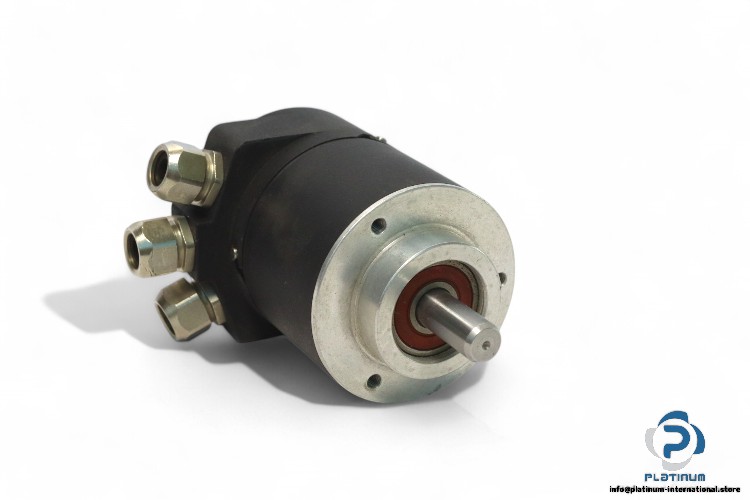

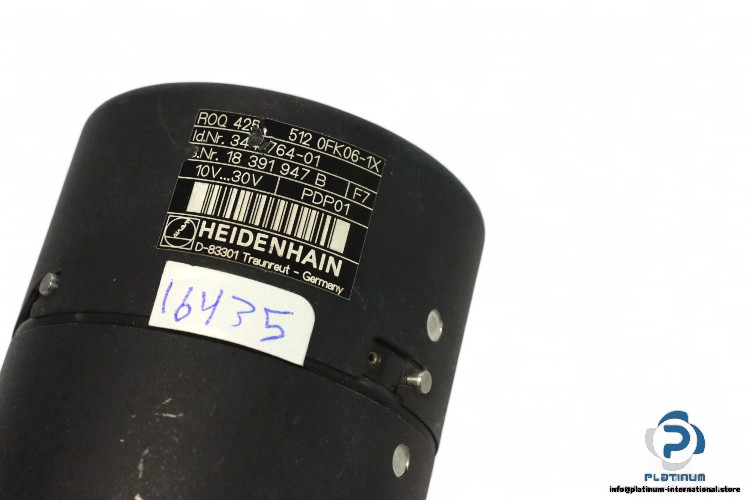

Heidenhain ROQ 425 512 0FK06-1X 344 764-01 Absolute Encoder
Used
In stock1 unitReady to ship
999,99$
Absolute Encoder
HEIDENHAIN ROQ-425-512-0FK06-1X Absolute Encoder is designed for high-precision applications with a 6 mm shaft diameter, 512 line counts, and an output frequency of 52 kHz. Features IP67 protection and a voltage supply range of 10 V to 30 V DC.512526AbsoluteCountsdiameterEncoderFeedbackFrequencyHeidenhainhigh-precisionIndustrialIP67kHzLinemmOutputPositionROQ-425-512-0FK06-1XRotaryshaftWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
HEIDENHAIN Absolute Encoder ROQ-425-512-0FK06-1X
The HEIDENHAIN ROQ-425-512-0FK06-1X Absolute Encoder offers precise position feedback with high resolution and durability. Designed for industrial applications, it provides excellent performance with an IP67 housing protection and operates at a maximum speed of 15,000 rpm. With 512 line counts and 52 kHz output frequency, this encoder is an ideal choice for precision motion control systems.
Manufacturer: HEIDENHAIN
Type: Absolute Encoder
Model: ROQ-425-512-0FK06-1X
Part No.: 344 764-01
Technical Specifications
- Voltage Supply: 10 V to 30 V DC
- Line Counts: 512
- Shaft Diameter: 6 mm
- Mechanical Permissible Speed (n): 15,000 rpm
- Protection (EN 60 529): IP67 at housing, IP64 at shaft inlet (IP66 upon request)
- Positions per Revolution: 8192 (13 bits)
- Revolutions: 4096 (12 bits)
- Output Frequency: 52 kHz
- Electrical Connection: M23 flange socket (male), 17-pin, radial
- Cable Length: 100 mm
