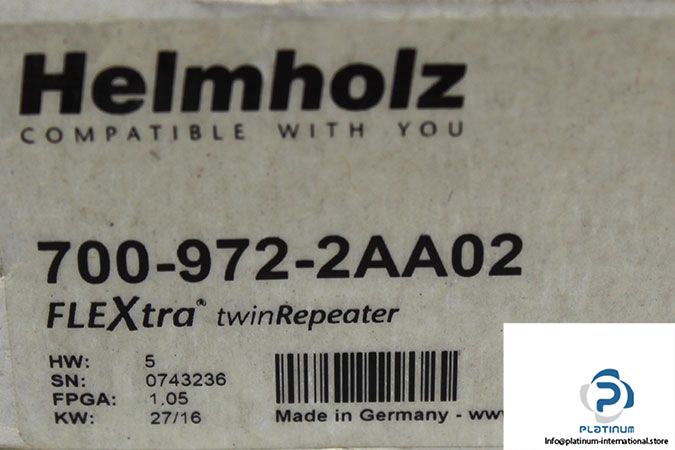

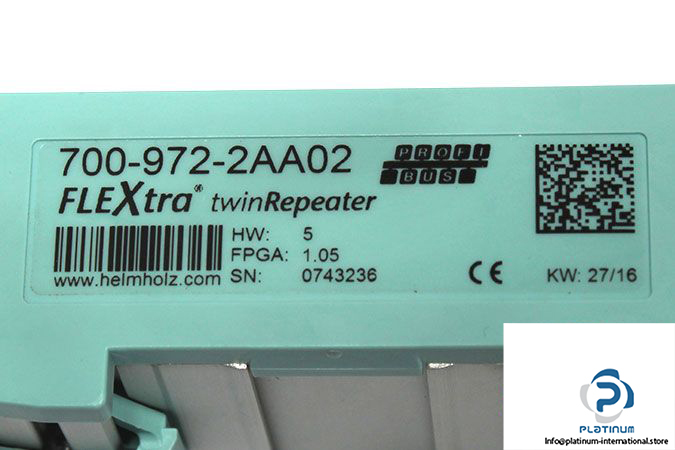

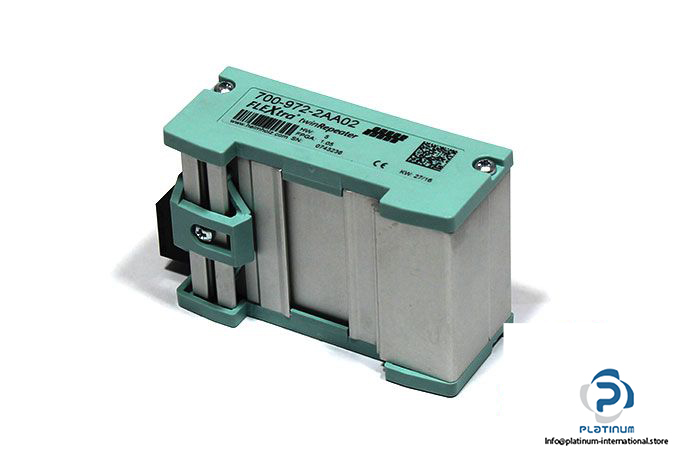

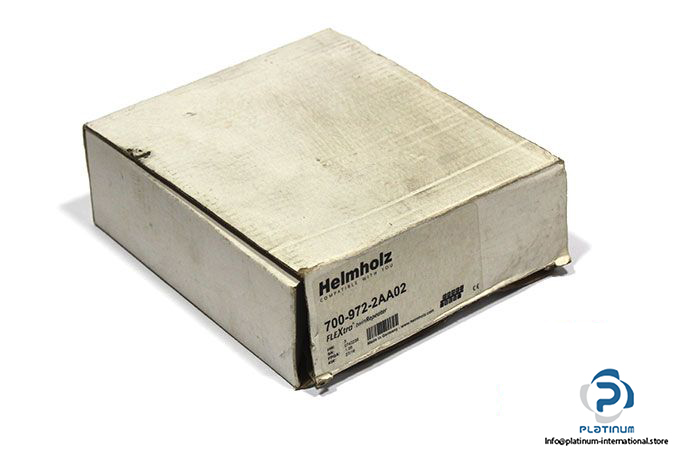

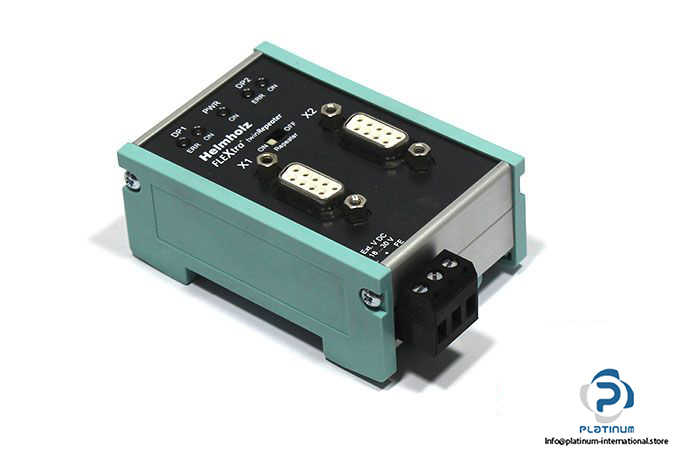

HELMHOLZ FLEXtra® 700-972-2AA02 TWIN REPEATER

Manufacturer: Helmholz

Type: Twin Repeater

Model: 700-972-2AA02

Voltage Supply: 24 V DC, 18–30 V DC

Current Draw: Typ. 60 mA with DC 24 V, without load

Output Voltage Per Segment: 5 V, 150 mA

Electrical Isolation: 500 V, Between the Segments

PROFIBUS Interface

• Protocol: PROFIBUS-DP
• Number: 2
• Transmission Rate: 12 Mbps, Autom. Detection

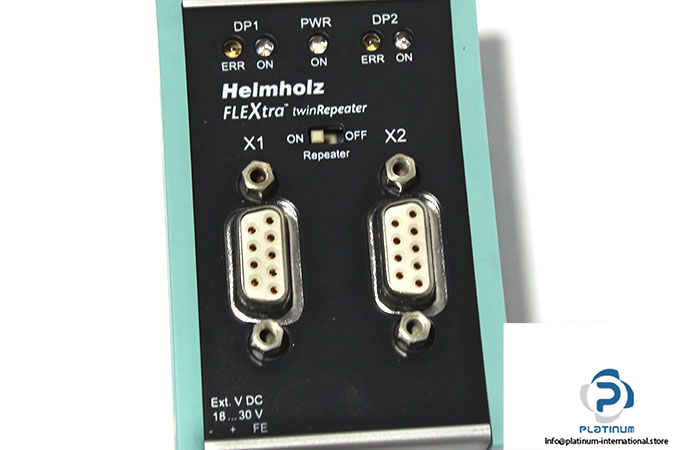

• Connection: SUB-D Female Connector, 9-pin

Dimensions: 31 x 51 x 72 mm

Ambient Temperature: 0…60 °C

Protection Class: IP20

Weight: 0.16 kg
