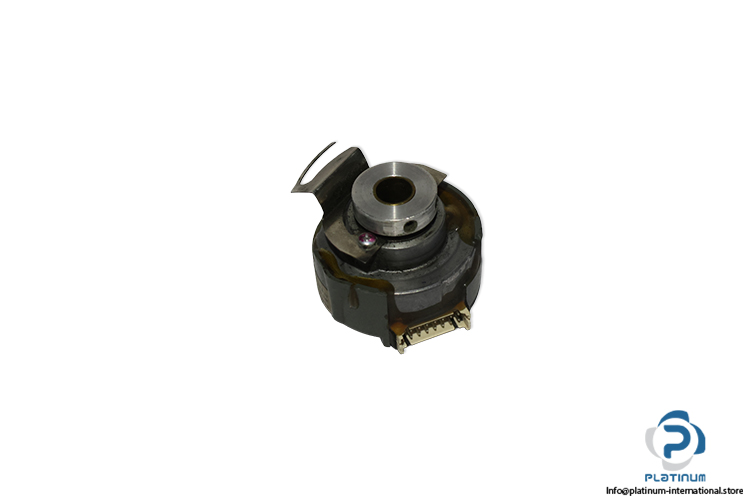

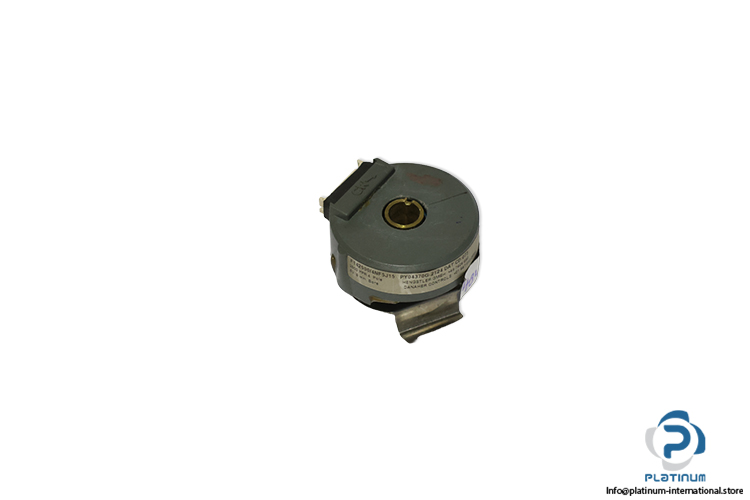

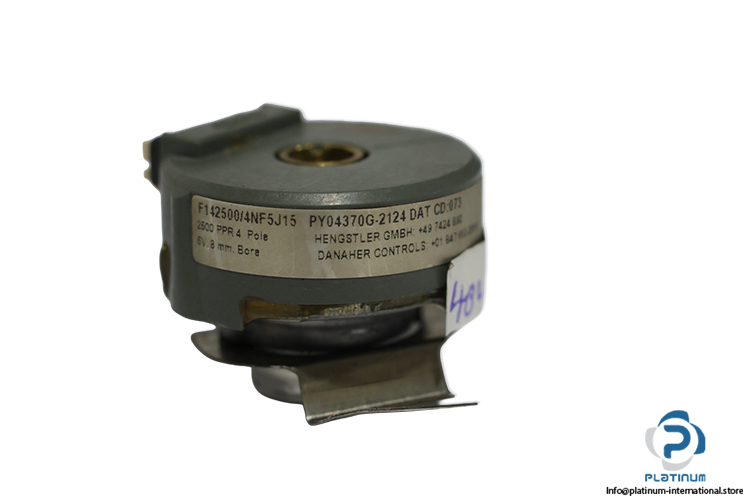

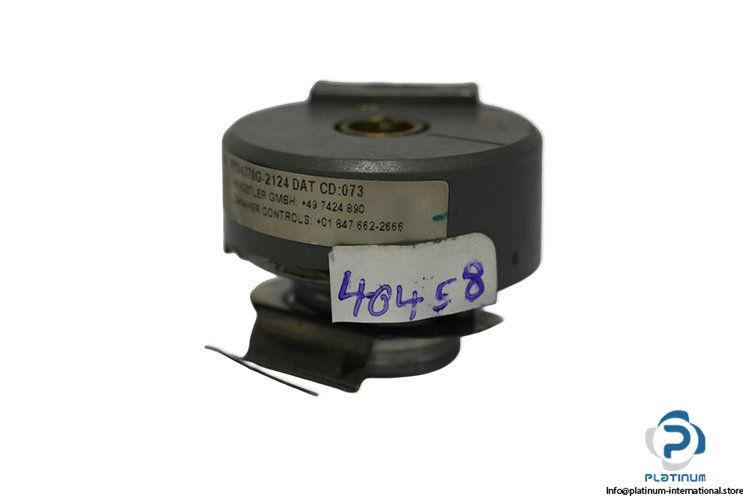

Hengstler F142500/4NF5J15 Servo Motor Encoder
Used
In stock1 unitReady to ship
Hengstler F142500/4NF5J15 F14 Servo Motor Encoder is a precision optical encoder designed for industrial servo motor feedback and motion control. Featuring 2500 pulses / 4 pole, 5V DC supply voltage, 175 mA current rating, 8 mm shaft, 10,000 RPM maximum speed, 500 kHz frequency rating, aluminium housing, and IP40 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | F14 |
| Voltage Rating | 5V dc |
| Current Rating | 175 mA |
| Technology | Optical |
| Number of Pulses | 2500 / 4 pole |
| Shaft Size | 8mm |
| Speed Rating | 10000rpm |
| Frequency Rating | 500 kHz |
| IP Rating | IP40 |
| Material | Aluminium |
| Includes | Metric Screw |
| Operating Temperature | 0 to +120°C |
| Dimensions | 55.88 x 39.37 x 32.41 mm (With Cover)/ 55.88 x 36.83 x |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1105027 |
| Weight | 0,05 |
