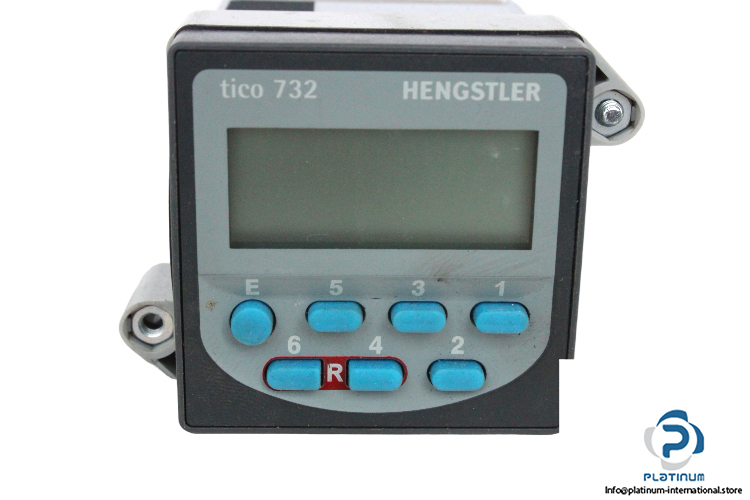

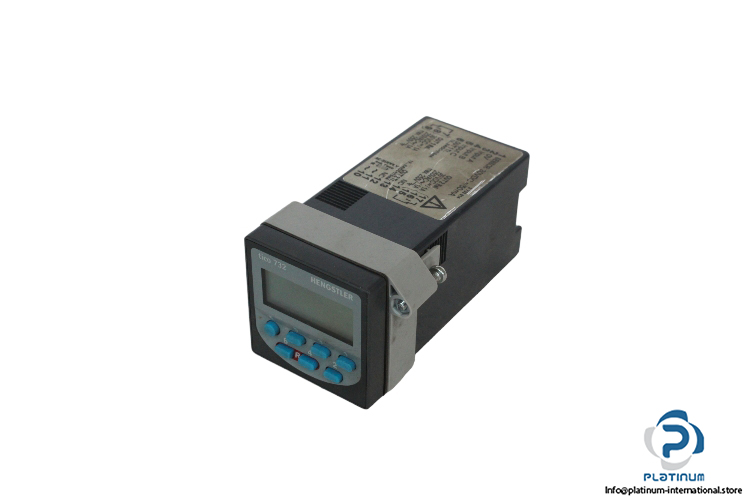

Hengstler Tico 732 Counter

Manufacturer: Hengstler

Type: Multifunctional counter

Model: TICO 732

Part No.: 0732013

Supply Voltage: 230 V AC

Current Consumption: 20 mA

Frequency: 50 … 60 Hz

Display: LED or LCD, 6 digits, leading zero suppression, decimal point

Sensor Supply: 30 VDC, max 50 mA

Operating Temperature: 0 … +50 °C

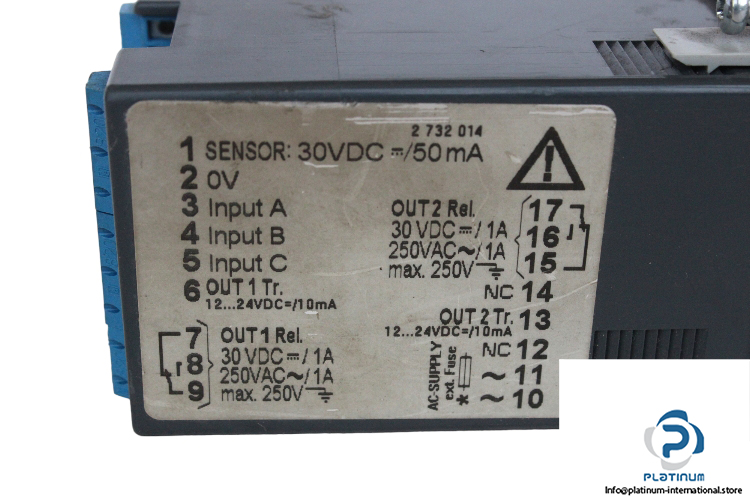

Electrical connection: screw terminals

Relay: 2 changeover contact single pole double through, 250 VAC / 30 VDC, 5A

Transistor: PNP output 12…24 VDC, 30 mA

Mounting: with clamping frame

Alarms: 2 alarms with programmable start-up-suppression

Degree of Protection:  front side IP 65, terminals IP 20

Dimensions: 48 x 48 x 108 mm
