Herion S10W02G004001300 Solenoid Operated Directional Valve
The Solenoid Operated Directional Valve (Model: S 10 W 02 G 004 001 3 00) by IMI Herion controls oil flow with a nominal size of NG 10, max. working pressure of 200 bar, and electrically actuated operation. It comes with a sup-plate connection and HERION 7700 solenoid coil (220 VAC, 50 Hz).

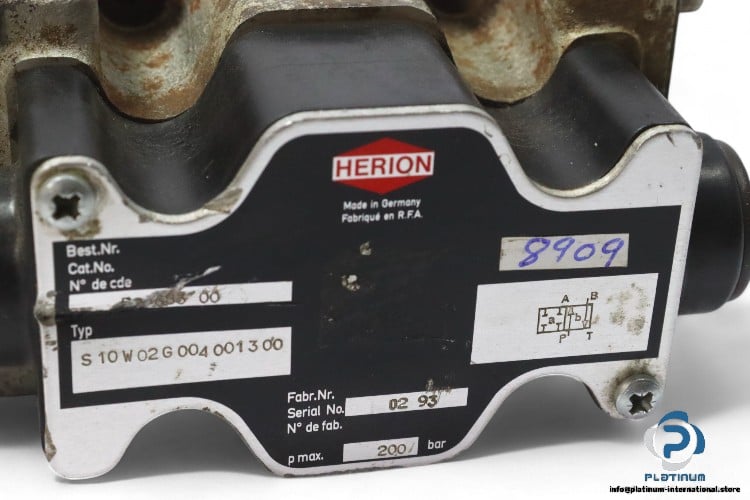

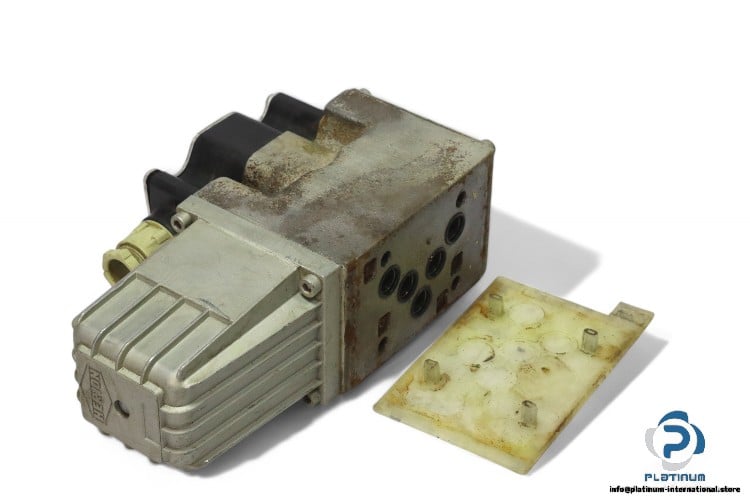

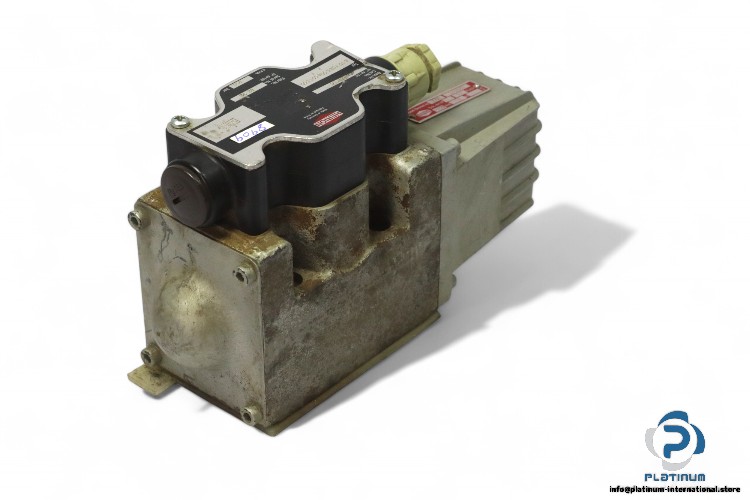

Solenoid Operated Directional Valve – Model: S 10 W 02 G 004 001 3 00
The Solenoid Operated Directional Valve (Model: S 10 W 02 G 004 001 3 00) by IMI Herion is a high-quality valve designed to control the flow of oil in hydraulic systems. It features a nominal size of NG 10 and is actuated electrically for precise control. With a maximum working pressure of 200 bar on Ports P, A, and B, this valve is built to perform efficiently in high-pressure environments. It comes with a sup-plate connection for easy integration into systems.
Technical Specifications:
- Model: S 10 W 02 G 004 001 3 00
- Nominal Size: NG 10
- Fluid: Oil
- Type of Actuation: Electrically
- Max. Working Pressure (Port P, A, B): 200 bar
- Connection: Sup-plate

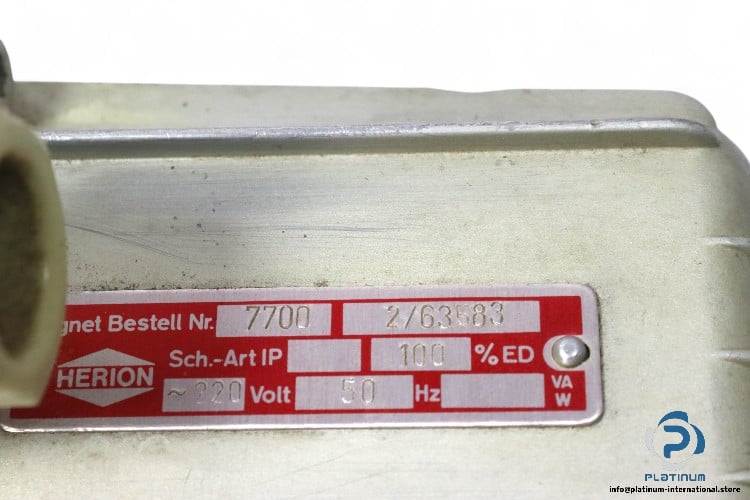

Attachment – Solenoid Coil:
The valve is paired with a solenoid coil for actuation:
- Manufacturer: IMI Herion
- Model: 7700
- Part No.: 2/63583
- Voltage: 220 VAC
- Frequency: 50 Hz
