Hikvision DS-KH6320-WTE1 IP Video Intercom Indoor Station
New
In stock1 unitReady to ship
IP Video Intercom Indoor Station
Hikvision DS-KH6320-WTE1 7-inch indoor station with capacitive touch screen, IP communication, Wi-Fi support, and advanced audio/video intercom functionality.7AccessCDeviceDoorDS-KH6320-WTE1HikvisioninchindoorIntercomIPIP65NetworkPhoneScreenSecuritySIPSmartStationSystemTouchVideoWiFi
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

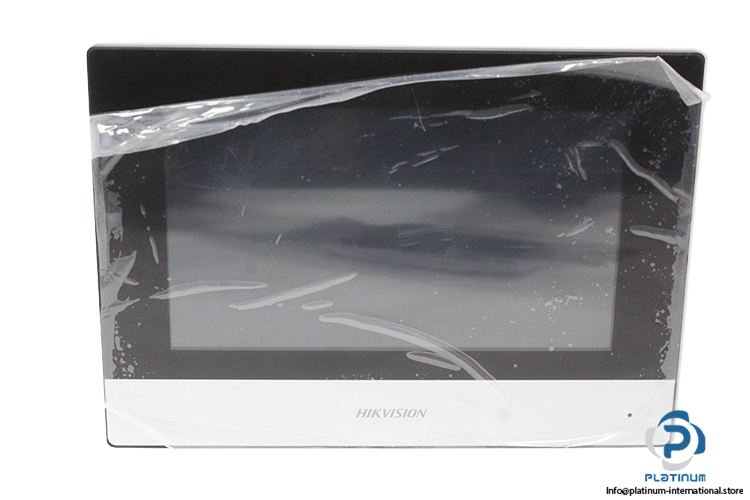

Hikvision DS-KH6320-WTE1 IP Video Intercom Indoor Station
The Hikvision DS-KH6320-WTE1 is an advanced IP video intercom indoor station designed for secure communication, monitoring, and access control in residential and industrial environments. It features a high-resolution touch display and supports multiple network and audio protocols.
Manufacturer: HIKVISION
Type: IP Video Intercom Indoor Station
Model: DS-KH6320-WTE1
Serial No.: Q05487513
Lot No.: 22960949 / 2018597547/140
Material Code: 305301487
Range: PanelView 550
Message Capacity:
| Screen Size | 7-Inch |
| Operation Method | Capacitive Touch Screen |
| Display Resolution | 1024 × 600 Pixel |
| Display Type | Colorful TFT |
| Supply Voltage | 12 V DC |
| Rated Current | 1 A |
| Audio Input | 1 Built-In Omnidirectional Microphone |
| Audio Compression Standard | G.711 U, G.711 A, G.722.1 |
| Audio Output | 1 Built-In Loudspeaker |
| Audio Compression Bitrate | 64 Kbps |
| Audio Quality | Noise Suppression And Echo Cancellation |
| Volume Adjustment | Adjustable |
| Operation System | Linux |
| ROM | 32 Mb |
| RAM | 128 Mb |
| Processor | Embedded High Performance Processor |
| TF Card Inserted | 200 Captured Pictures, |
| 200 Alarm Records Without TF Card | 2 MB RAM For Picture Storage; The Storage Number Is Decided By The Picture Size, 200 Alarm Records |
| Notice Capacity | 200 |
| Linked Indoor Extensions Capacity | 16 |
| Linked Door Phone Capacity | 17 |
| Linked Network Camera Capacity | 16 |
| Network Protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Alarm Input | 8 |
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive |
| RS-485 | 1 RS-485 (Half Duplex) |
| TF Card | Support TF Card, Up To 128 G |
| Alarm Output | 2 |
| Lock Control | 2 Relays, Max. 30 VDC, 0.3 A |
| Protection Class | IP65 |
| Operating Temperature | -10 / 55 °C |
| Dimensions | 200 × 140 × 15.1 mm |
