Hiquel TCL Level Control
Used
In stock2 unitsReady to ship
Level Control
The HIQUEL TCL level control offers precise monitoring with a 5.3V measuring voltage, 6A relay output, and 100m cable support for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

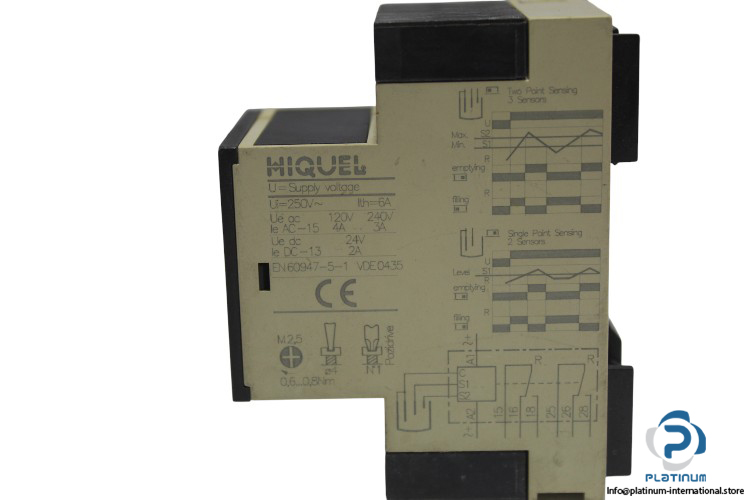

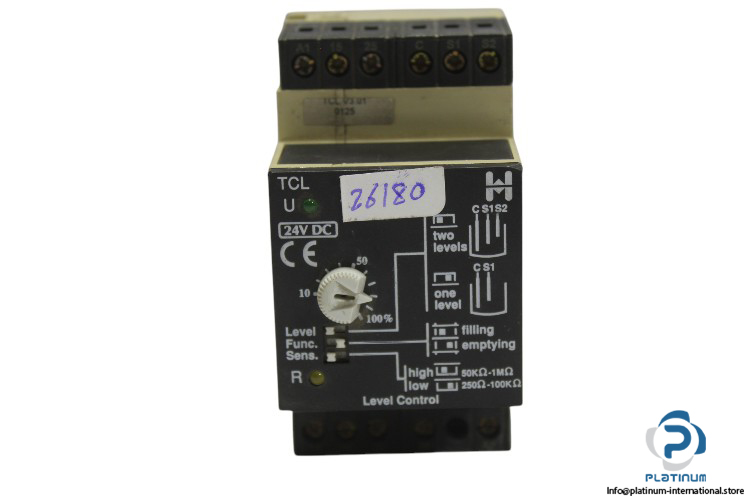

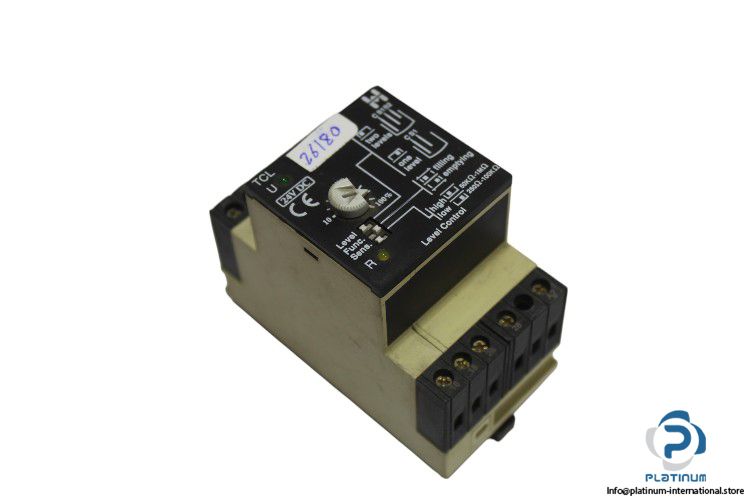

HIQUEL TCL Level Control
The HIQUEL TCL is a compact and efficient level control device designed for accurate liquid level detection and control in industrial environments. It offers reliable performance with low measuring voltage and extended cable reach, making it suitable for a wide range of applications.
Manufacturer: HIQUEL
Type: Level Control
Model: TCL
| Max Measuring Voltage | 5.3 V |
| Max Measuring Current | 5 mA |
| Frequency Range | 48 - 63 Hz |
| Cable Length Max | 100 m |
| Output Relay Specification | Max 6A 230V AC |
| Ue/Ie AC-15 | 120V/4A, 240V/3A |
| Ue/Ie DC-13 | 24V/2A |
| Screw Tightening Torque | 0.6 - 0.8 Nm |
| Operating Conditions | -20 to +60 °C |
