Hiwin EGW25CC Linear Guideway Block

In stock25 unitsReady to ship

68,66$

LINEAR GUIDEWAY BLOCK

Flange-type Hiwin EGW 25CC linear block with 25 mm size, high load capacity, and dual mounting options, ideal for heavy-duty linear motion systems.

Manufacturer
HIWIN
SKU
965326
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

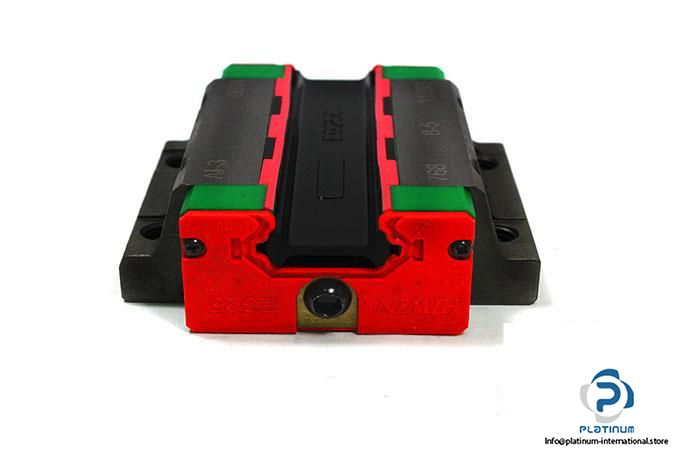

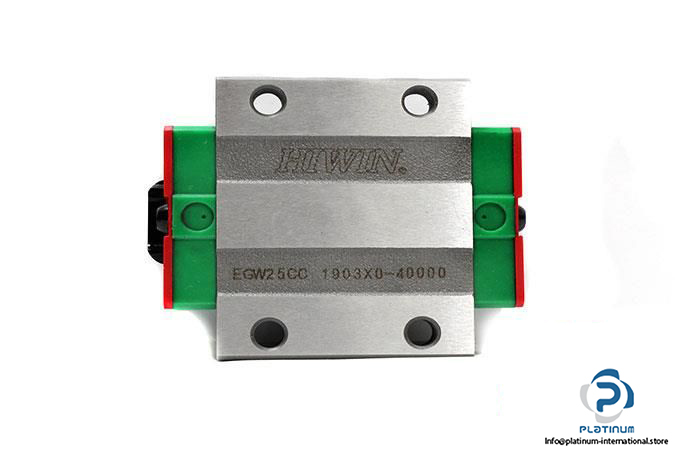

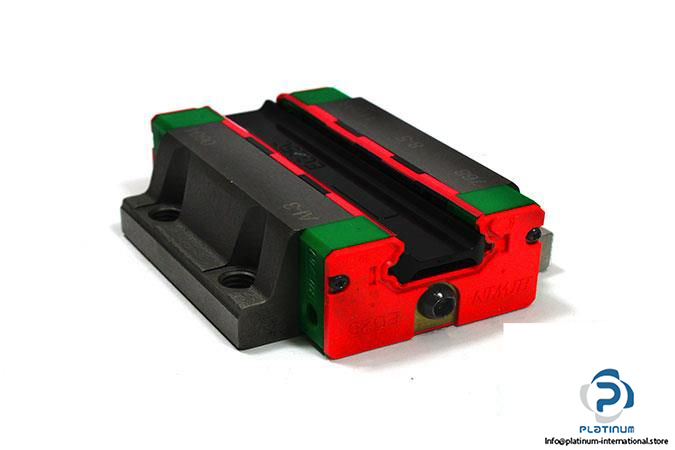

HIWIN EGW 25CC LINEAR GUIDEWAY BLOCK

The Hiwin EGW 25CC linear guideway block is a heavy-duty flange-type unit engineered for precise linear motion under high loads. With dual mounting options and robust load ratings, it is ideal for demanding industrial automation systems and machine applications.

Manufacturer: Hiwin

Type: Linear Guideway Block

MNR: EGW 25CC 1903X0-40000

Size25 mm
Total Height H33 mm
Block Width W73 mm
Block Length L82.6 mm
Block Height26 mm
Distances Between Holes60 mm, 35 mm
Thread SizeM8
Basic Dynamic Load Rating C16.27 kN
Basic Static Load Rating C032.4 kN
Rail Width23 mm
Rail Height18 mm
Block TypeFlange
Load TypeHeavy Load
Block Mounting TypeFrom Above or Below
