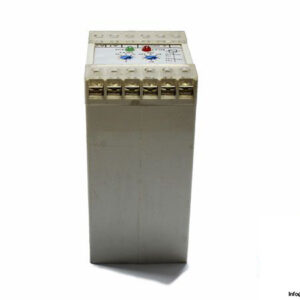

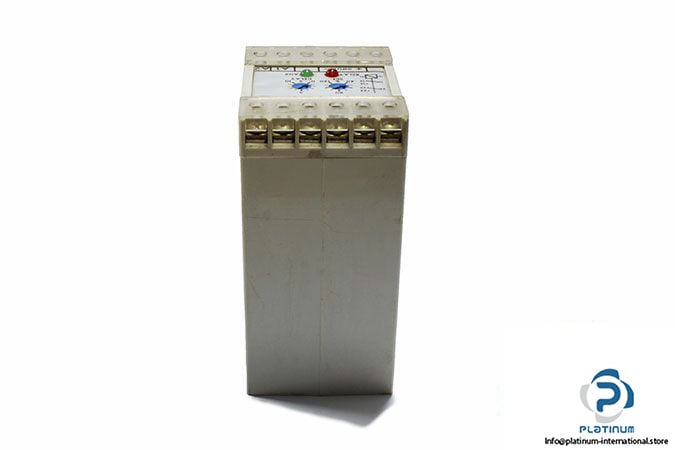

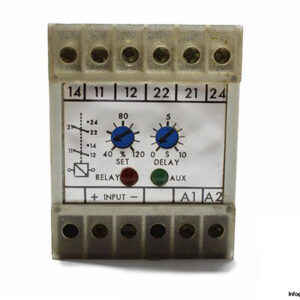

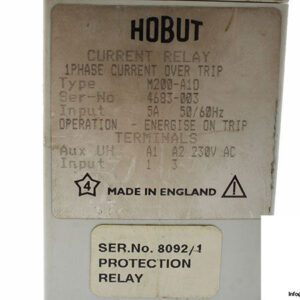

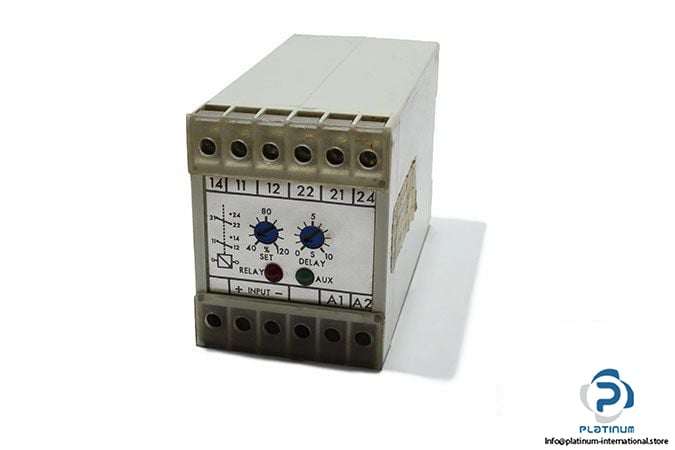

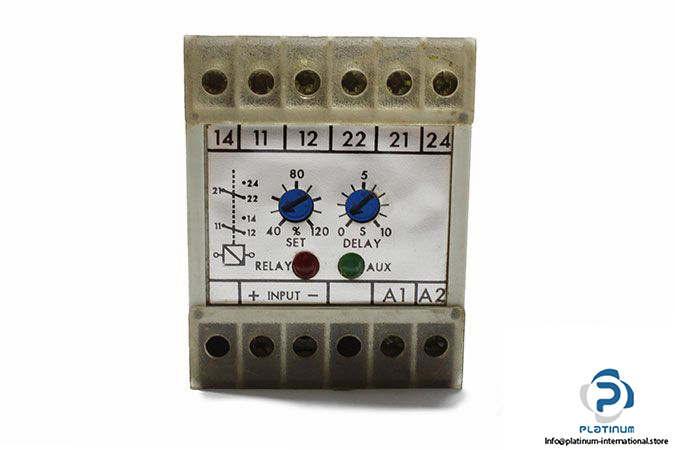

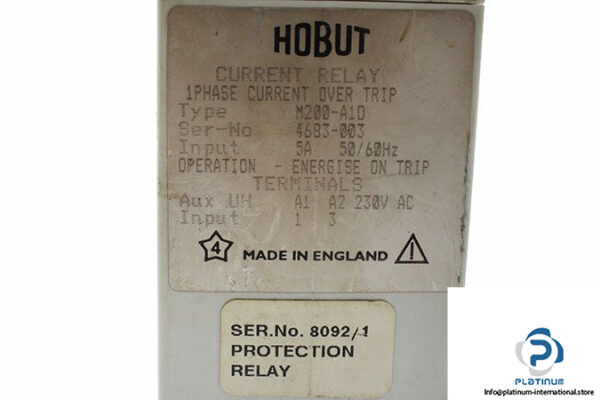

Hobut M200-A1O Single Phase Over Current

Manufacturer: PILZ

Type: Single Phase Over Current

Model: M200-A1O

Input:

Rated Value  5 A from CT 0.2 … 10 A direct connected

Frequency: 50 /60 /400 Hz

Burden: <0.5 VA per phase Setpoint:

Range Over: Adjustable 40% to 120% In

Range Under: Adjustable 0% to 80% In

Repeatability: Better than 0.5% of full span

Time Delay: Adjustable 200 ms … 10 s

Auxiliary:

Voltage:

• 115/230/400 VAC (± 25% /45 … 65 Hz / <2 VA)
• 24 VDC (± 20% /galvanically isolated) <3 W

Dimensions: 55 X 112 X 70 mm

Weight: Approx. 0.4 Kg
