Motion Control Rotary Encoders

Hohner 10I1 H33Z4A1 500 Incremental Encoder

Name: HOHNER 10I1 H33Z4A1 500 INCREMENTAL ENCODER
SKU: 1044973
Availability: LimitedAvailability

hohner-10I1-H33Z4A1-500-incremental-encoder-(used)

hohner-10I1-H33Z4A1-500-incremental-encoder-(used)-1

hohner-10I1-H33Z4A1-500-incremental-encoder-(used)-2

hohner-10I1-H33Z4A1-500-incremental-encoder-(used)-3

Used

In stock1 unitReady to ship

INCREMENTAL ENCODER

Hohner 10I1H33Z4A1500 stainless steel encoder with 500 ppr resolution, solid shaft, NPN output, IP67 protection, and wide voltage range. Ideal for industrial automation systems.

Manufacturer

HOHNER

SKU

1044973

Category

Rotary Encoders

Condition

Used

10I1H33Z4A1500 10mm 500 Encoder Hohner Incremental Industrial IP67 NPN Output PPR Sensor shaft stainless Steel

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

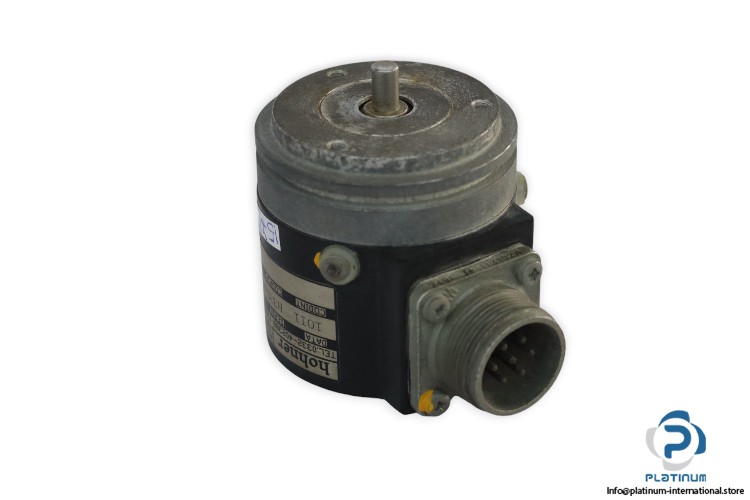

HOHNER 10I1H33Z4A1500 INCREMENTAL ENCODER

The Hohner 10I1H33Z4A1500 is a robust incremental encoder designed for high precision and durability in industrial automation environments. Built with stainless steel housing and IP67 protection, this encoder offers reliable performance in demanding applications.

Manufacturer: Hohner

Type: Incremental Encoder

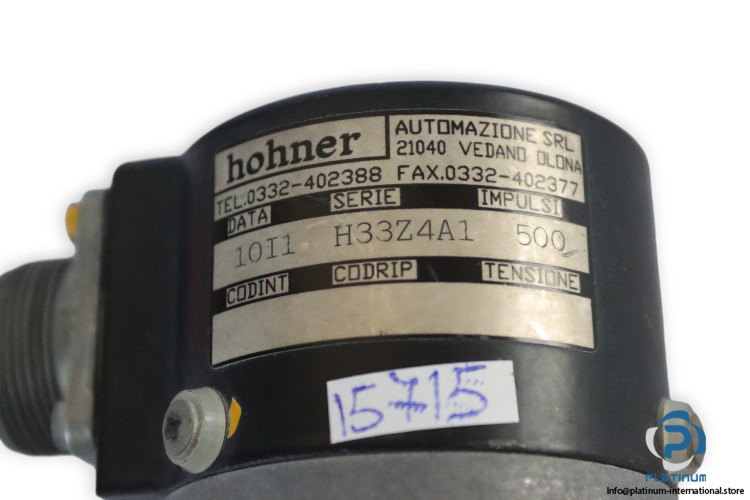

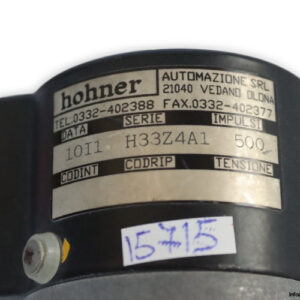

Model: 10I1H33Z4A1500

Series: 10I

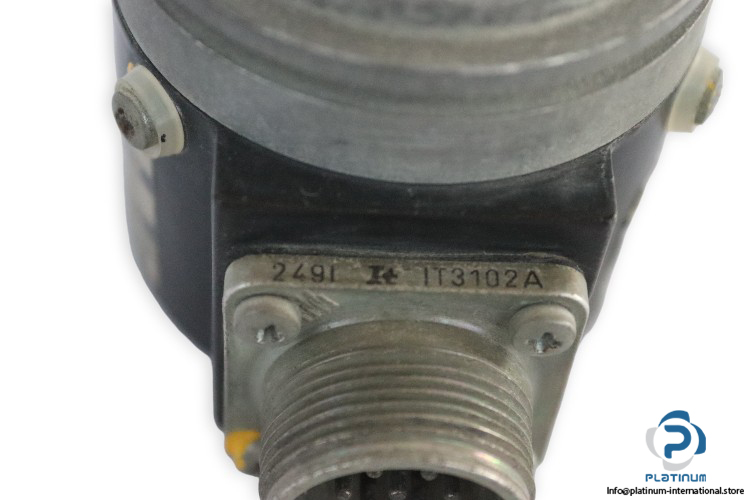

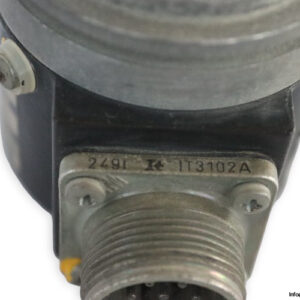

REF NO: 249I / IT3102A

Input Voltage	11 / 30 V DC
Consumption	40 mA
Frequency	100 kHz
Principle of Operation	Incremental
Shaft Type	Solid Shaft
Output	NPN Standard (Pull-up Resistor Included)
Resolution	500 ppr
External Diameter	58 mm
Shaft Diameter	10 mm
Protection Degree	IP67
Material	Stainless Steel

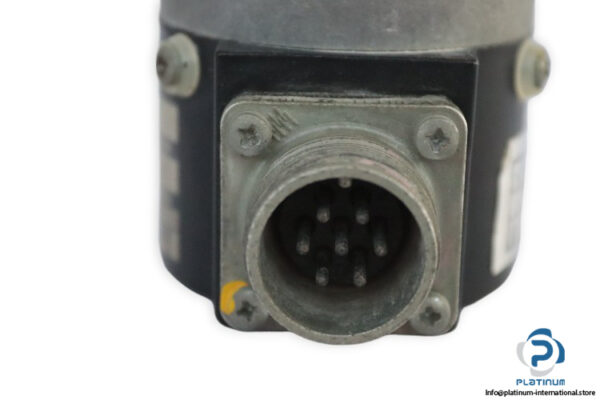

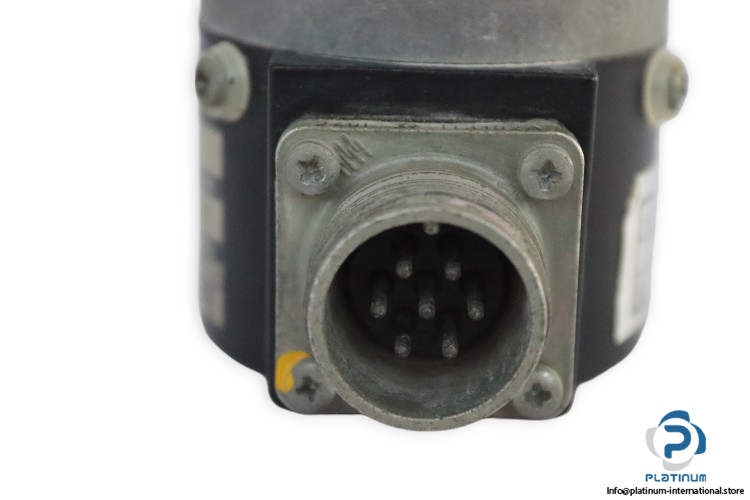

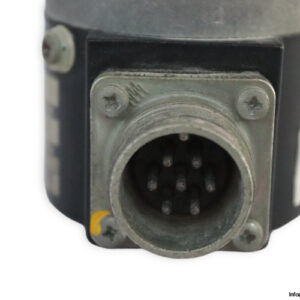

Output Type	Connector (8 Pins)
Operating Temperature	-20 / +85°C
