Hohner H1165W/1024 Incremental Encoder
New
In stock1 unitReady to ship
400,00$
INCREMENTAL ENCODER
Hohner H1165W/1024 is a high-resolution incremental encoder with 1024 PPR, IP67 protection, solid stainless steel shaft, and aluminum housing”ideal for demanding industrial environments.1024DeviceEncoderFeedbackH1165W/1024HighHohnerIncrementalIndustrialIP67MotionPPRPrecisionResolutionshaftSolidstainlessSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

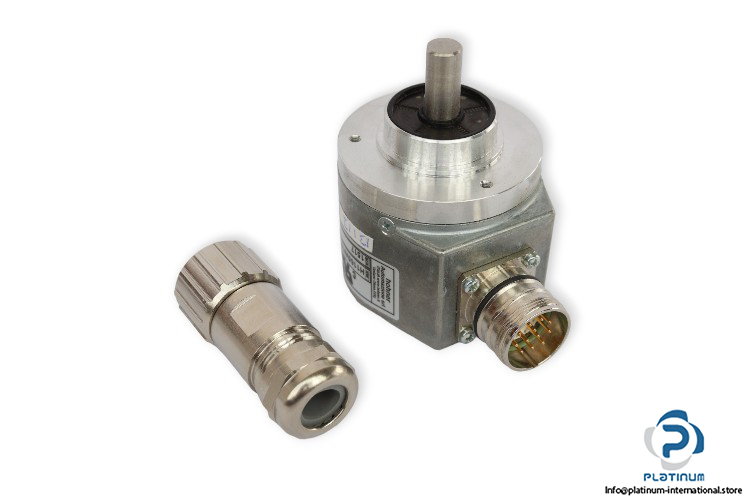

HOHNER H1165W/1024 HIGH RESOLUTION INCREMENTAL ENCODER
The Hohner H1165W/1024 is a high-precision incremental encoder built for industrial applications requiring reliable and accurate motion feedback. With a robust IP67 protection degree, solid shaft design, and high pulse rate, it delivers outstanding performance even in harsh environments.
Manufacturer: Hohner
Type: High Resolution Incremental Encoder

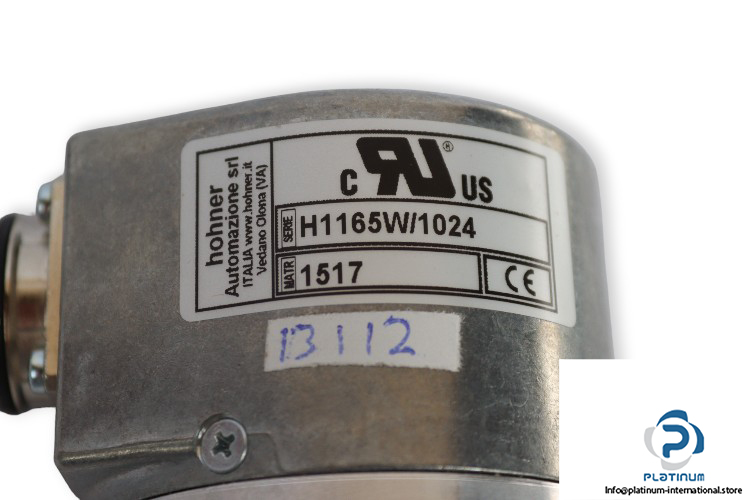

Model: H1165W/1024
Part No.: 1517
Series: H
| Shaft Type | Solid Shaft |
| Shaft Diameter | 10 mm |
| Power Supply | 5 / 28 V DC |
| Current Consumption | 40 / 80 mA |
| Connections | 9416 Radial |
| Pulses | 1024 PPR |
| Flange | Ø58,00 mm round flange with 3xM3 mm holes |
| Output | AB0+nAB0 “ LD5V |
| Option | Synchronized zero pulse to 90° only for LD |
| Cover Material | Aluminum |
| Shaft Material | Stainless Steel |
| Torque | 5 Ncm |
| Inertia | 100 gcm² |
| Protection Degree | IP67 |
| No. of Pins | 12 |

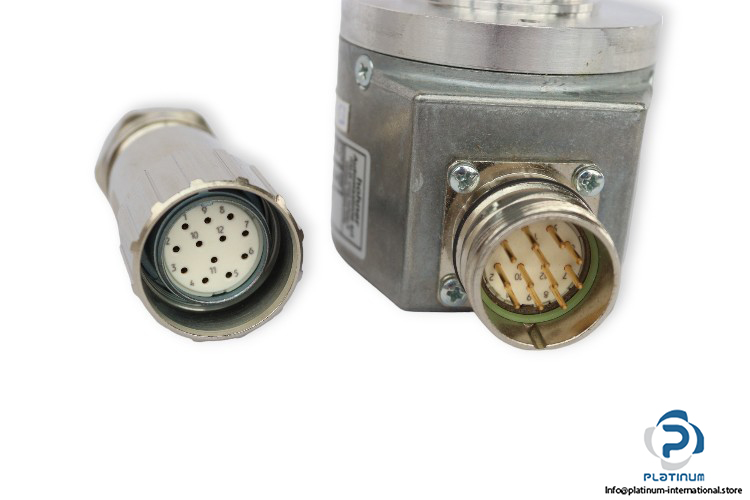

| Connection | Plug with 12 holes |
| Operating Temperature | -20 / +70°C |
