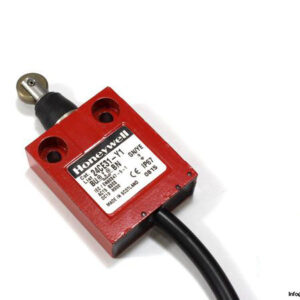

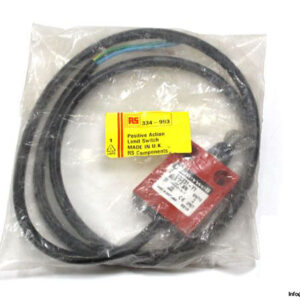

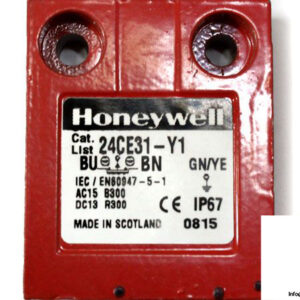

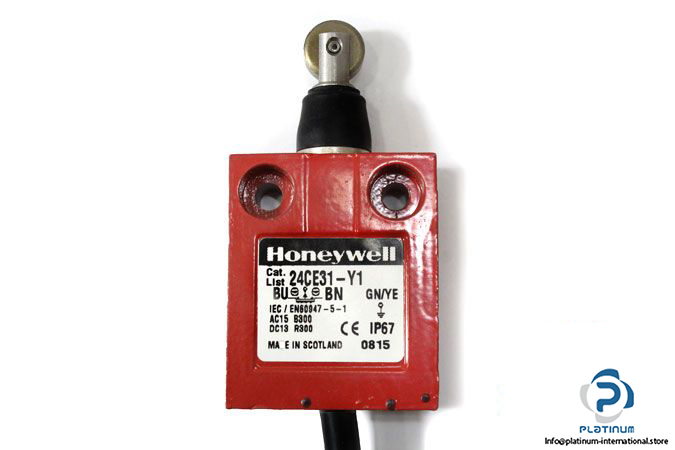

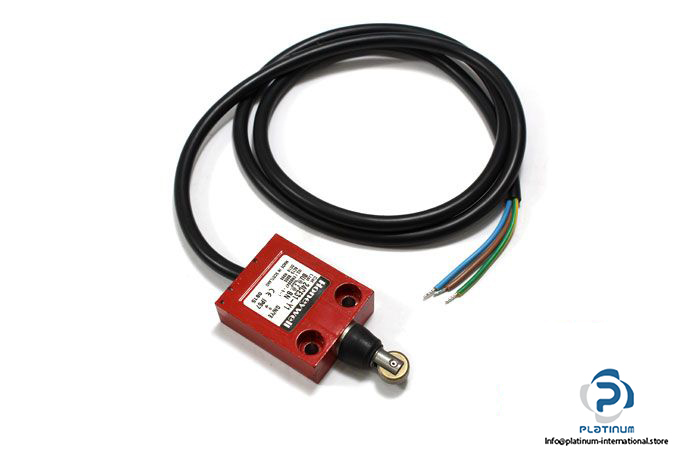

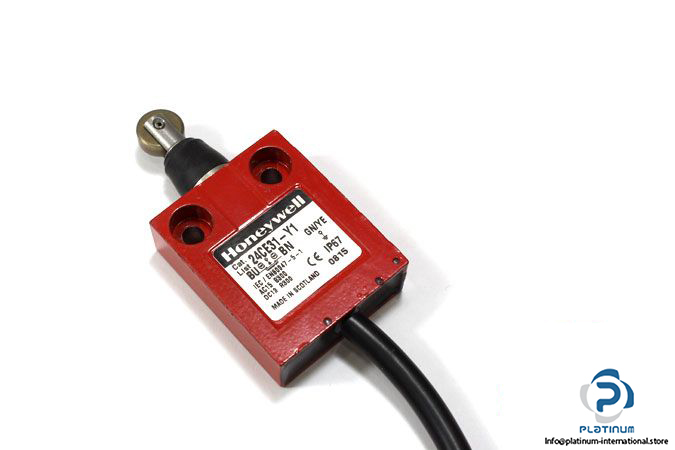

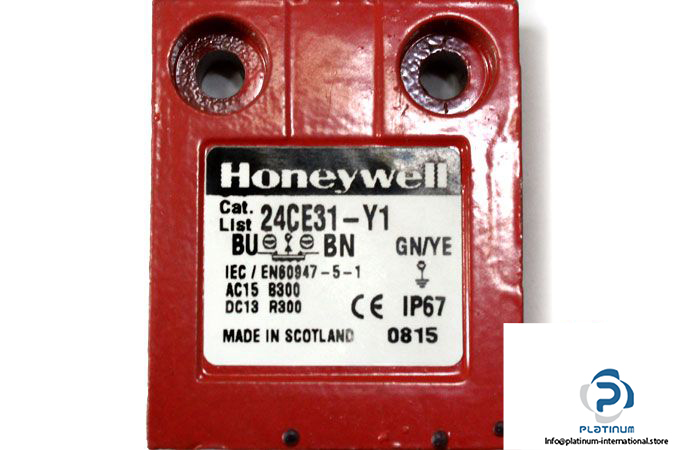

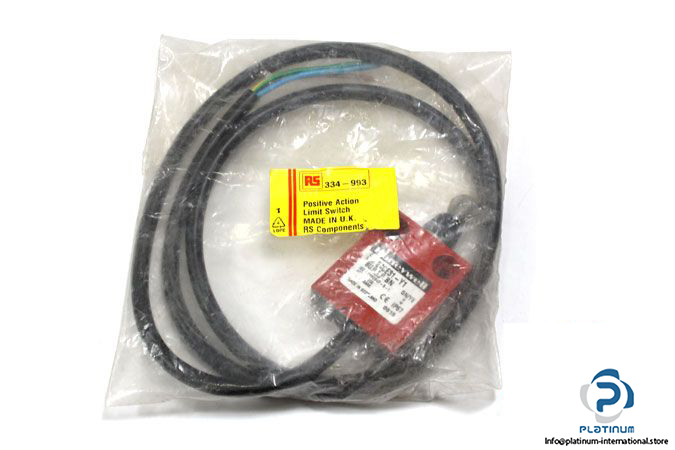

Honeywell 24CE31-Y1 Safety Limit Switch

Manufacturer: HONEYWELL

Series: 24CE

Type: MINIATURE SAFETY LIMIT SWITCH

Model: 24CE31-Y1

Application: Two 24CE roller plunger switches to monitor gate position, closed or open

Contact Type: 1 Normally closed direct opening, Slow action

Head Type: Top roller plunger parallel, Ø12.7 x 4.7 wide (steel), boot seal

Operating Voltage: 240 V AC/DC

Rated Operating Current: 1 … 1.5 A

Connector Type: Cable, 1 m

Enclosure Rating: IP67

Ambient Operating temperature: 0 … 70°C

Dimensions: 40 x 16 x 78 mm

Weight: 20 g

Housing Material: Epoxy coated Zinc Die-cast

Contact Material: Silver alloy
