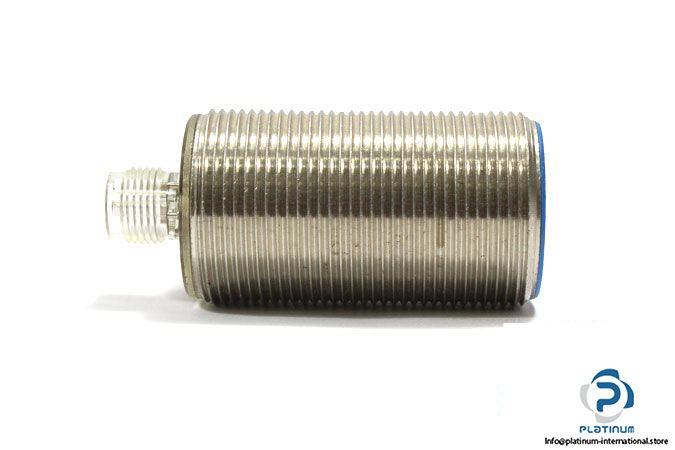

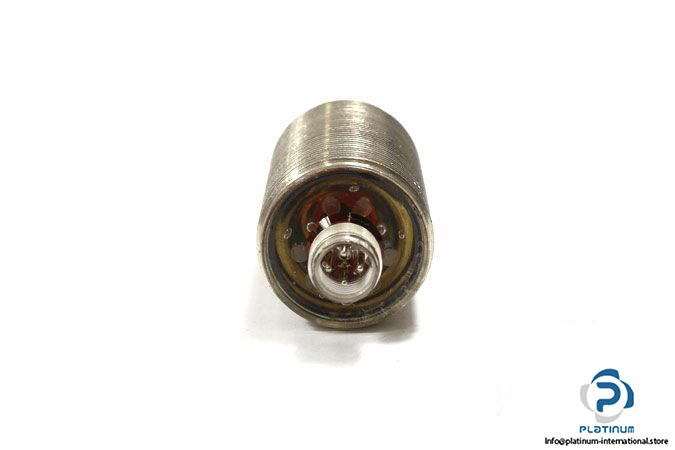

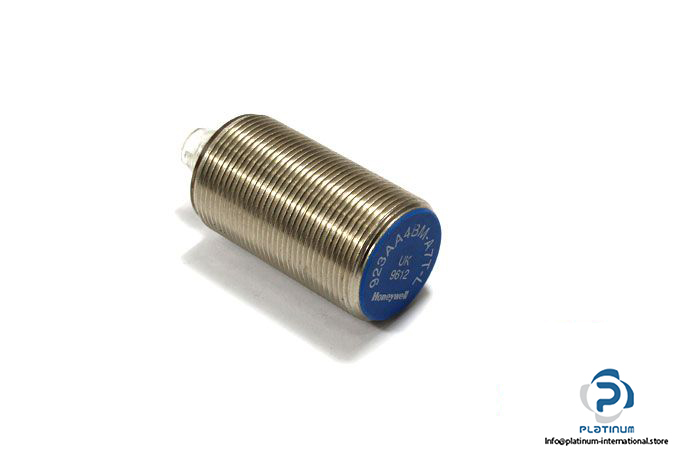

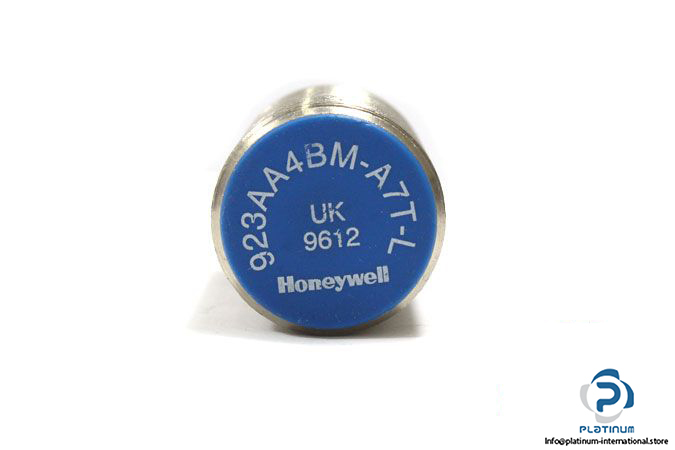

Honeywell 923AA4BM-A7T-L Inductive Sensor

Manufacturer: HONEYWELL

Type: INDUCTIVE SENSOR

Model: 923AA4BM-A7T-L

Sensing range: 10 mm

Operating Voltage: 20 … 260 V DC

Load Current: 5 … 500 mA

Switching frequency: 20 Hz

Switching output: Normally open/ normally closed

Connector type: M12 Connector, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -25 … 85°C

Indicator: LED

Diameter, housing length: 30, 53 mm

Housing material: Nickel-plated brass

Sensing face material: Polyamide

Mounting: Flush-mountable
