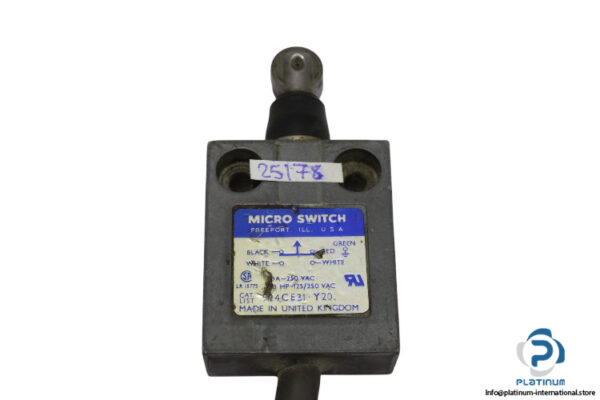

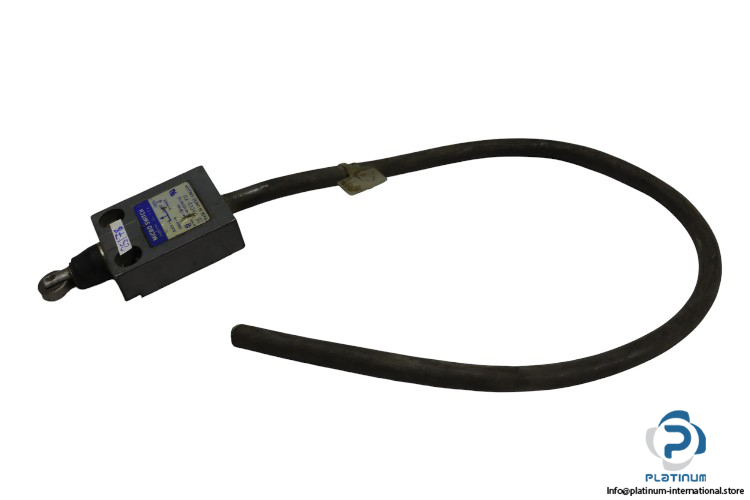

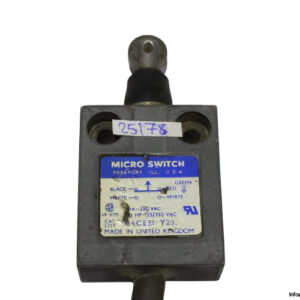

Honeywell 924CE31-Y20 Miniature Micro Switch
The Honeywell 924CE31-Y20 is a compact, industrial-grade miniature micro switch designed for precise actuation and harsh environments. With IP66 protection and a 20 ft cable, it is suitable for demanding control and automation applications.
Manufacturer: Honeywell
Type: Miniature Micro Switch
Model: 924CE31-Y20
| Head Type | Top roller plunger parallel, Ø12.7 x 4.7 wide (steel), boot seal |
| Rated Insulation Voltage (Ui) | 250 V |
| Rated Impulse Withstand Voltage (Uimp) | 2500 V |
| Rated Thermal Current (Ith) | 10 A |
| Contact Options | 1NC/1NO |
| Contact Type | Slow action |
| Contact Material | Silver alloy |
| Cable Length | 20 ft |
| Degree of Protection | IP66 |
| Operating Temperature | -40 to 70 °C |
