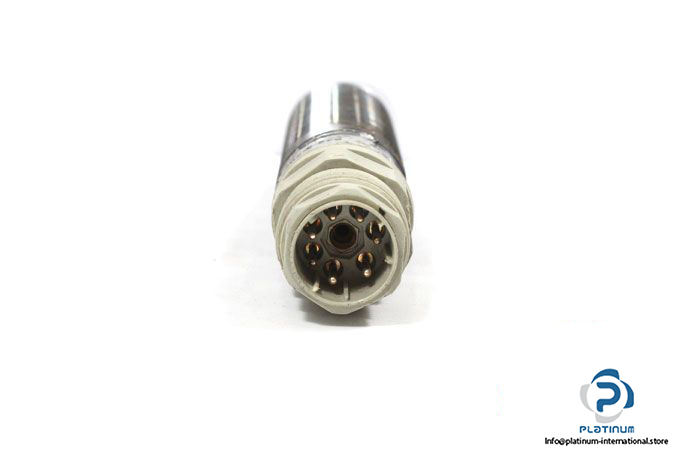

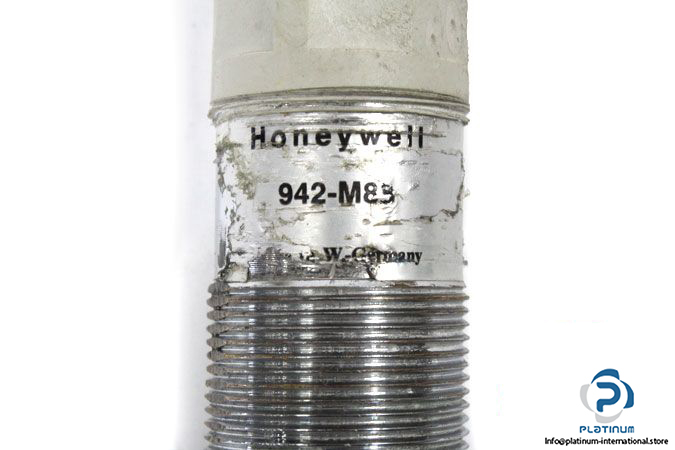

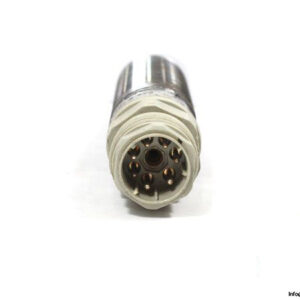

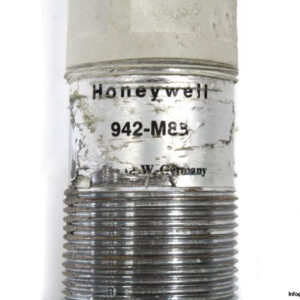

Honeywell 942-M88 Ultrasonic Sensor

Manufacturer: HONEYWELL

Type: ULTRASONIC SENSOR

Model: 942-M88

Configured with: Amplifier 942-M3A-2D-1G1

Successor Model: 942-M96

Sensing Range: 150 … 1500 mm

Operating Voltage: 19 … 30 V DC

Supply Current (without load): 130 mA

Switching Frequency: 8 Hz

Electrical Design: Two PNP

Switching Output: Normally open or normally closed

Resolution: 1 mm

Connector Type:  M26 Connector, 7-pin

Enclosure Rating: Sensor IP65, Amplifier IP54

Ambient Operating temperature: -0 … 70°C

Diameter, Housing length: 30, 142 mm

Housing Material: Stainless steel

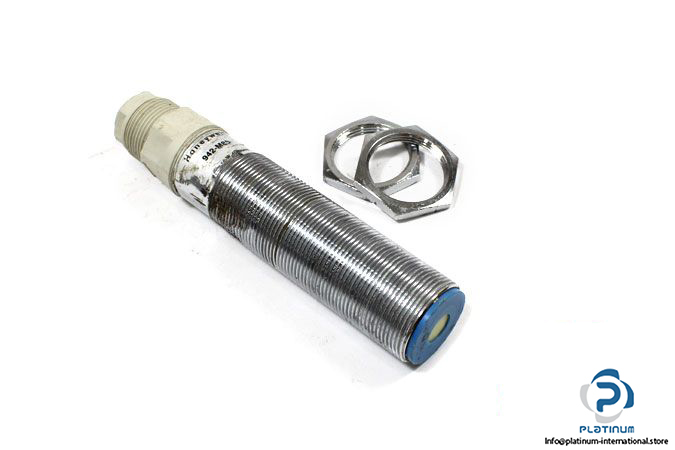

Supplied Items: 2 lock nuts
