Honeywell ML7420A8088-E Electric Linear Valve Actuator
New
Available on request
Electric Linear Valve Actuator
Honeywell ML7420A8088-E electric linear actuator with 24 Vac supply, modulating 0“10 VDC / 2“10 VDC control, 20 mm stroke, and 600 N close-off force. Designed for precise proportional valve control in HVAC and industrial systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

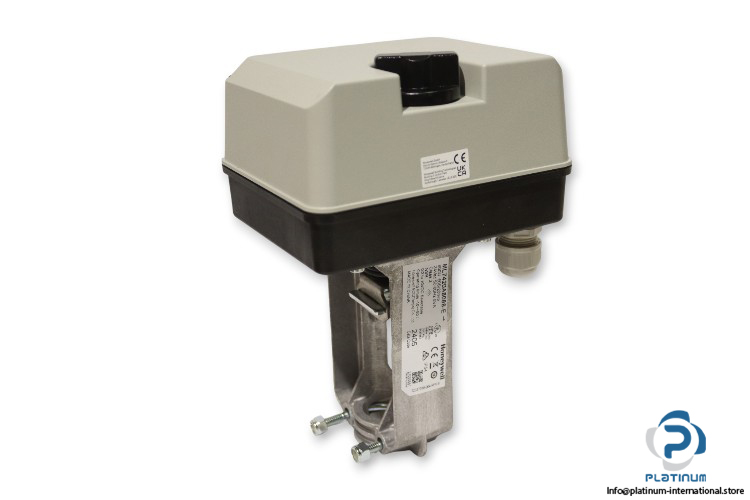

Honeywell ML7420A8088-E Electric Linear Valve Actuator
The Honeywell ML7420A8088-E is an electric linear valve actuator designed for precise modulating control in HVAC and industrial valve applications. It offers proportional control with selectable input signals and running direction, ensuring accurate positioning and reliable performance.

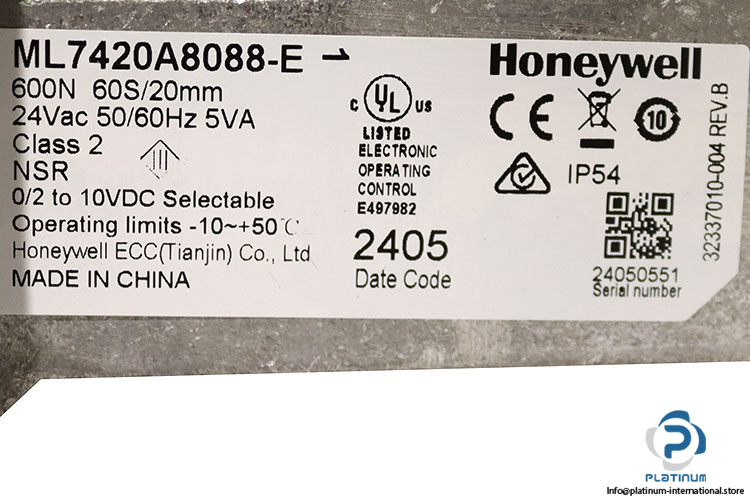

Manufacturer: Honeywell
Type: Electric Linear Valve Actuator
Model: ML7420A8088-E
Serial Number: 24050551
Code: 32337010-004
Class: 2
Revision: B
| Supply Voltage | 24 Vac |
| Frequency | 50 / 60 Hz |
| Power Consumption | 5 VA |
| Control Signal | 0“10 VDC selectable, 2“10 VDC selectable |
| Signal Input 0 (2) VDC | Actuator stem retracted; two-way valve open; three-way valve port A-AB closed |
| Signal Input 10 VDC | Actuator stem extended; two-way valve closed; three-way valve port A-AB open |
| Rated Stroke | 20 mm |
| Run Time at 50 Hz | 1 min |
| Close-Off Force | 600 N |
| Control Type | Modulating (Proportional) |
| Running Direction | Selectable (NSR “ Non Spring Return) |
| Protection Class | Class 2 |
| Enclosure Rating | IP54 |
| Operating Temperature Range | -10 °C to +50 °C |
