HUBERT & SALZER 8024 A263643/41/2022 HIGH TEMPERATURE SLIDING GATE VALVE
New
In stock5 unitsReady to ship

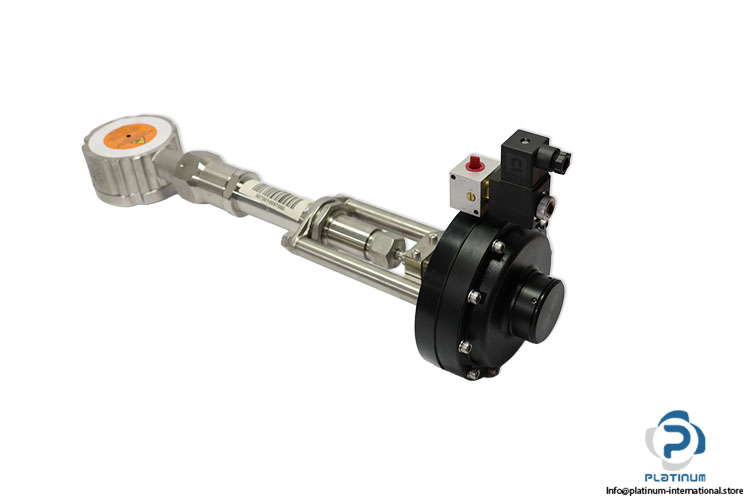

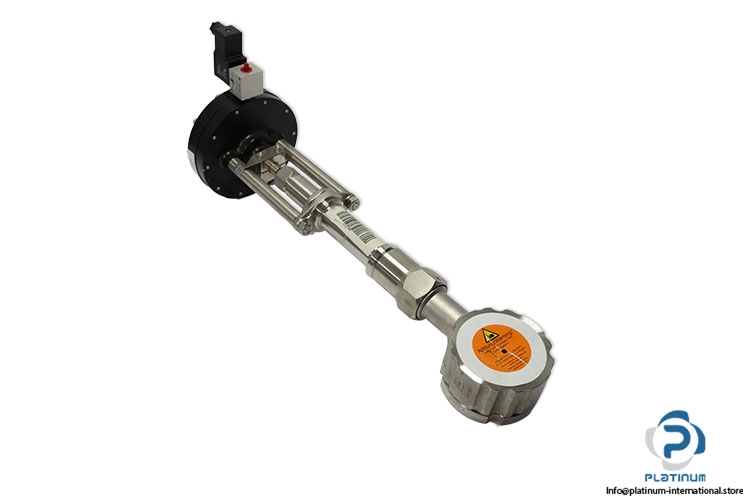

High Temperature Sliding Gate Valve The SCHUBERT & SALZER 8024 high temperature sliding gate valve is designed for precise air flow control in industrial process systems. Manufactured from stainless steel and supplied with a 4077005 pilot valve and MA 30 S13 24 VDC solenoid coil, it is suitable for temperatures up to 450°C.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

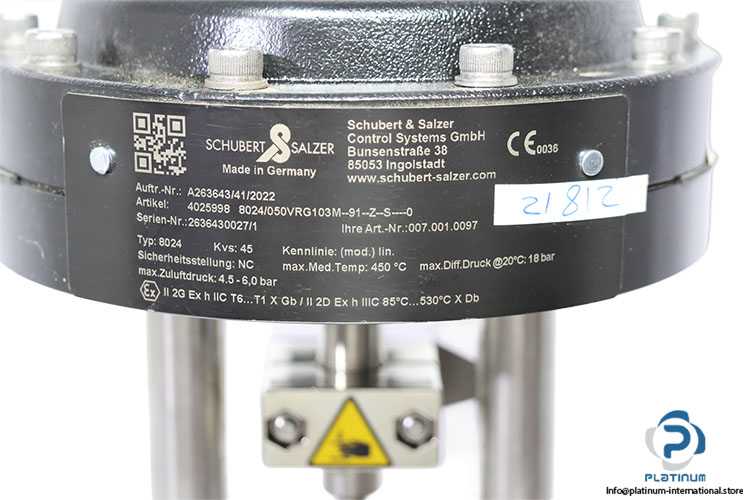

| Part No. | A263643/41/2022 |
| Art. No. | 4025998 8024/050VRG103M-91--Z--S----0 |
| Ser. No. | 2636430027/1 |
| Ihre Art. No. | 007.001.0097 |

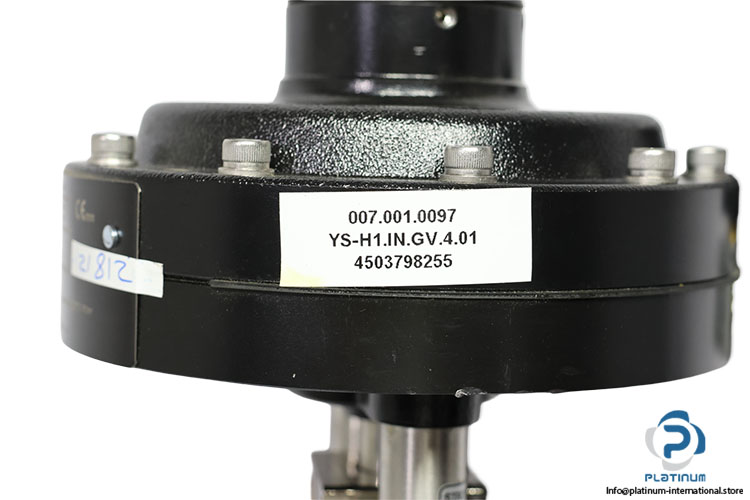

| Ref No. | 007.001.0097 / YS-H1.IN.GV.4.01 / 4503798255 |
| Medium | Air |
| Nominal Pressure | PN 40 |
| Intake Air Pressure | 4.5 … 6,0 bar |
| Input Signal | 0 - 10 V |
| Security Position | NC |
| Material | Stainless Steel 1.4408 |
| Port Size | G1/4 |
| Media Temperature | -60 … 450°C |

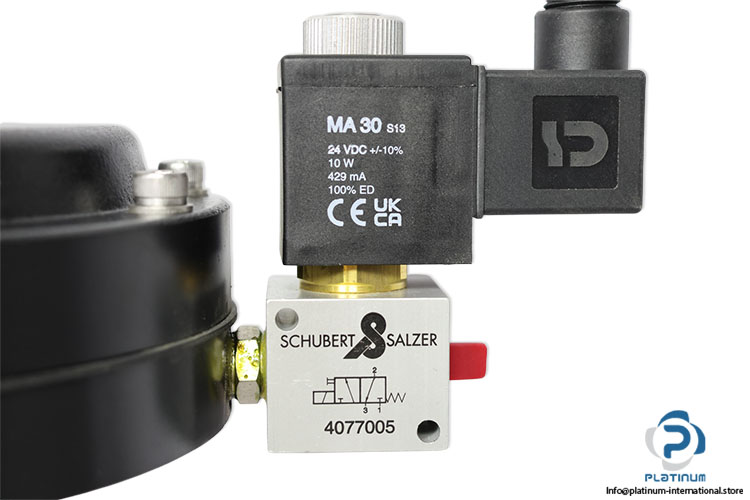

| Attachment | SCHUBERT & SALZER 4077005 PILOT VALVE |
| Pilot Valve Manufacturer | SCHUBERT & SALZER |
| Attachment 1 Type | Pilot Valve |
| Pilot Valve Model | 4077005 |
| Pilot Valve Medium | Air |
| Pilot Valve Function | 3/2 Way |
| Pilot Valve Pressure Max. | 10 bar |
| Pilot Valve Material | Aluminum |
| Pilot Valve Connection Size | G1/4 |
| Pilot Valve Protection Class | IP65 |
| Attachment 2 | SCHUBERT & SALZER MA 30 S13 SOLENOID COIL |
| Solenoid Coil Manufacturer | SCHUBERT & SALZER |
| Attachment 2 Type | Solenoid Coil |
| Solenoid Coil Model | MA 30 S13 |
| Solenoid Coil Supply Voltage | 24 VDC |
| Solenoid Coil Current Consumption | 429 mA |
| Solenoid Coil Power Consumption | 10 W |
| Stock Key | AK-005 |
| Condition | New |
| SKU | 1102934 |
| Weight | 11,64 |
