Hydac OK-EL10L-S/2.1/400V-50HZ Cooling System ABB Motor
3 899,99$

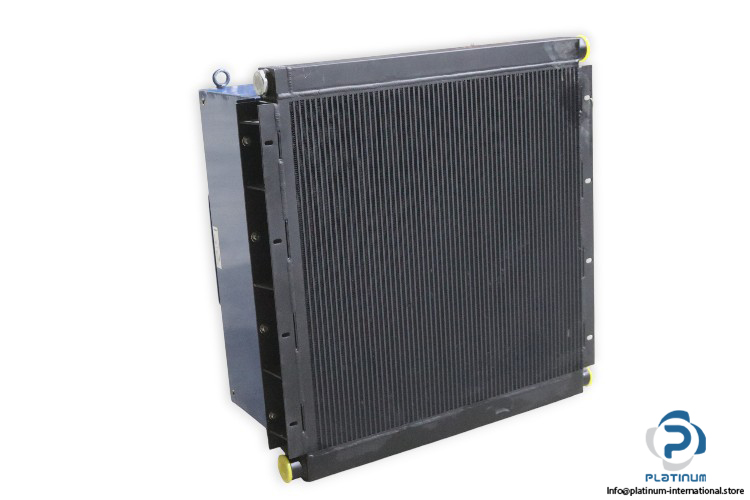

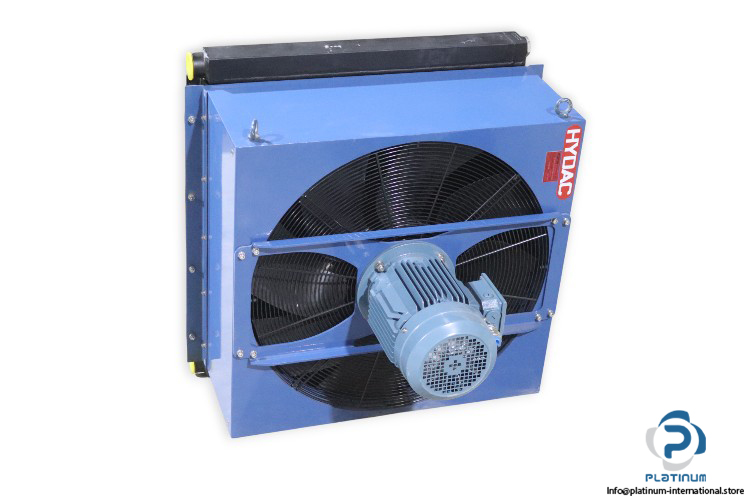

Cooling System with ABB Motor
High-performance Hydac cooling system equipped with a durable ABB electric motor. Offers strong torque output, high protection class, and excellent thermal stability for hydraulic and industrial machinery.Hydac OK-EL10L-S/2.1/400V-50Hz Cooling System with ABB Motor
The Hydac OK-EL10L-S/2.1/400V-50Hz is a high-performance cooling system equipped with a durable ABB electric motor, engineered for continuous operation in demanding industrial environments. This system is designed to maintain optimal temperatures, protect machinery, reduce downtime, and extend equipment lifespan. Its combination of strong mechanical build, high torque capability, and reliable Hydac cooling technology makes it ideal for hydraulic units, power packs, and industrial automation systems.

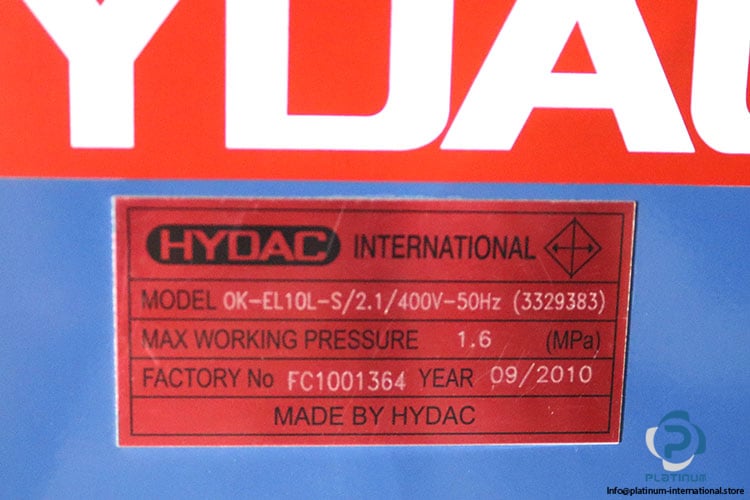

Manufacturer: Hydac
Type: Cooling system with ABB motor
Model: OK-EL10L-S/2.1/400V-50Hz
Factory No.: FC1001364
Part No.: 3329383

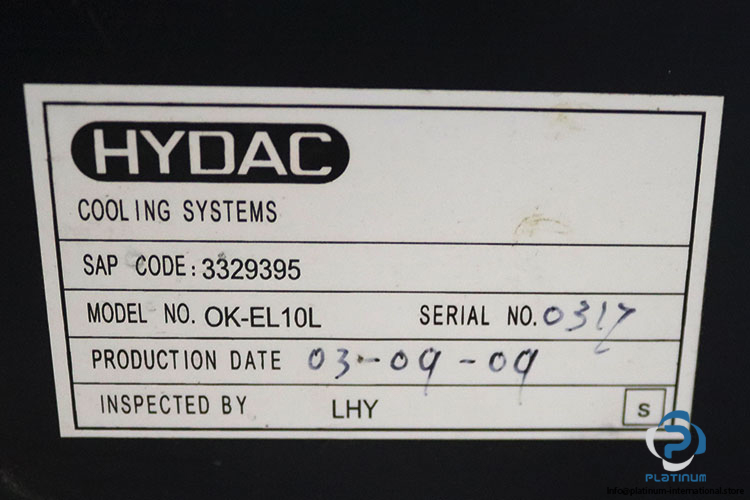

Code: 3329395 / 2506453
Serial No.: 0317
Attachment

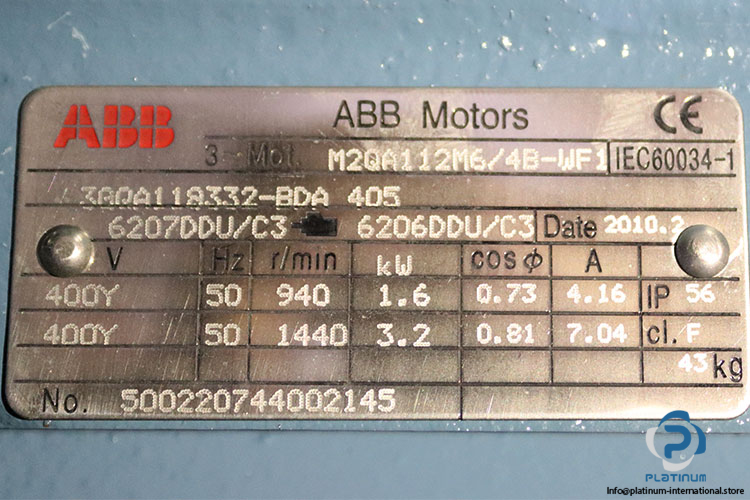

ABB M2QA112M6/4B-WF1 ELECTRIC MOTOR
| Max Working Pressure | 1.6 MPa |
| Voltage | 400 V AC, 50 Hz |

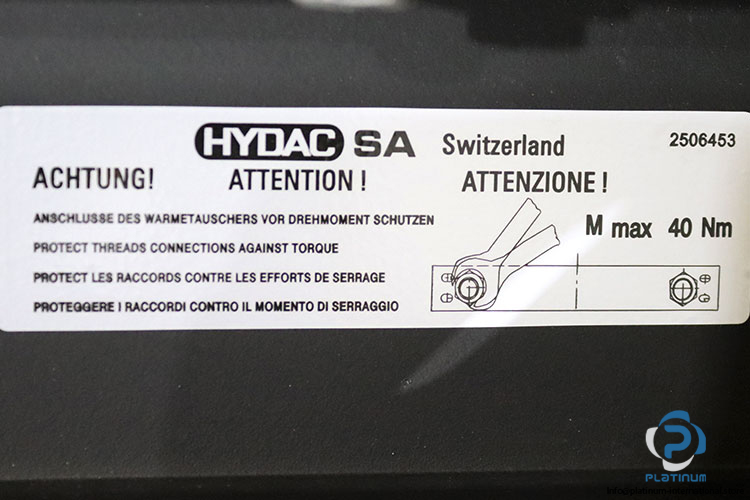

| Maximum Torque | max 40 Nm |
| Serial No. | 500220744002145 |
| Code | 3GQA118332-BDA 405 |
| Bearings | 6207DDU/C3, 6206DDU/C3 |
| Voltage | 400 V (Y) - 3 phase |
| Frequency | 50 Hz |
| At Speed 940 r/min | Power 1.6 kW, cos φ 0.73, Current 4.16 A |
| At Speed 1440 r/min | Power 3.2 kW, cos φ 0.81, Current 7.04 A |
| Protection & Insulation | IP56, cl. F (Insulation Class F) |
| Standard | IEC60034-1 |
| Recommendation | This cooling system is an excellent choice for customers seeking long-term reliability, reduced overheating risks, and stable machine performance. The integrated ABB motor provides exceptional efficiency and durability, making this unit ideal for heavy-duty hydraulic systems, industrial cooling loops, and continuous production environments. Its strong construction and high protection class deliver outstanding performance even in harsh working conditions. |
