Hydac SAB20 E12V1T200A Shut-OFF Valve
New
In stock1 unitReady to ship
344,44$
Shut-Off Valve
The HYDAC SAB20 E12V1T200A is a high-pressure shut-off valve with solenoid and manual discharge, rated up to 400 bar and supplied with a Flutec 2SV5A8Y.0 24 V DC solenoid coil for precise hydraulic control.22824v2SV5A8Y.0400barBSPCarboncoilComponentsdcE12V1T200AFlutecHydacHydraulicIndustrialISONBRSAB20Sealshut-offsolenoidSteelValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

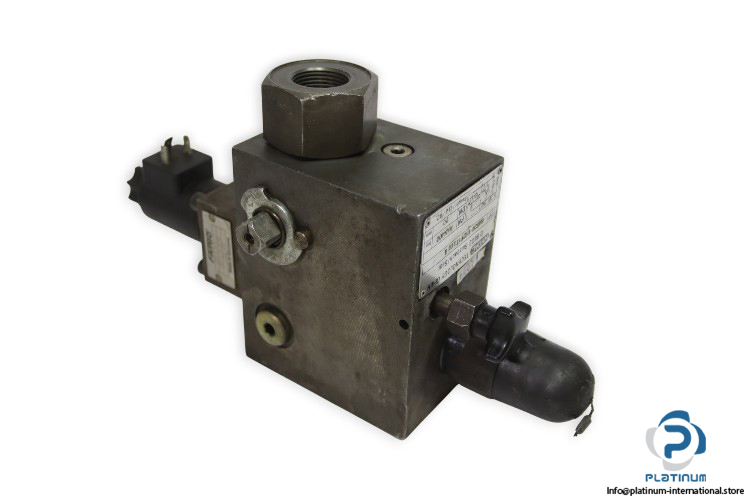

HYDAC SAB20 E12V1T200A Shut-Off Valve With Flutec 2SV5A8Y.0 Solenoid Coil
The HYDAC SAB20 E12V1T200A Shut-Off Valve is a robust, high-pressure unit designed for hydraulic applications requiring solenoid operation with manual discharge capability. It ensures reliable oil flow control and safety in demanding industrial environments. The valve is equipped with a Flutec 2SV5A8Y.0 solenoid coil for precise electrical actuation.

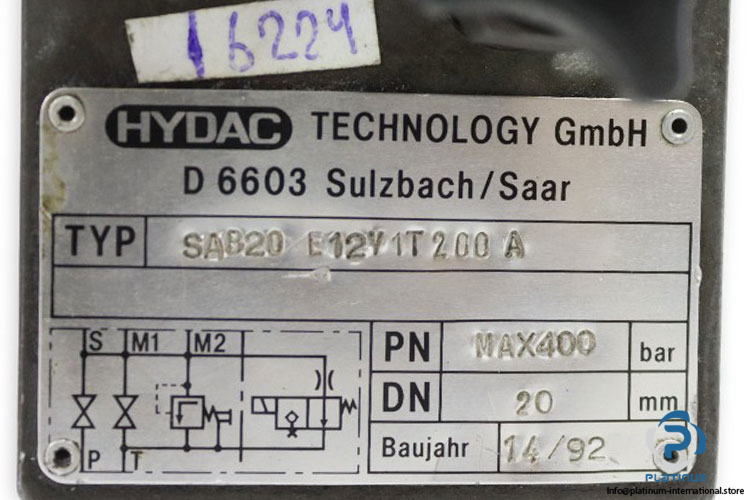

Manufacturer: HYDAC
Type: Shut-Off Valve
Model: SAB20 E12V1T200A
Ref No.: 14/92

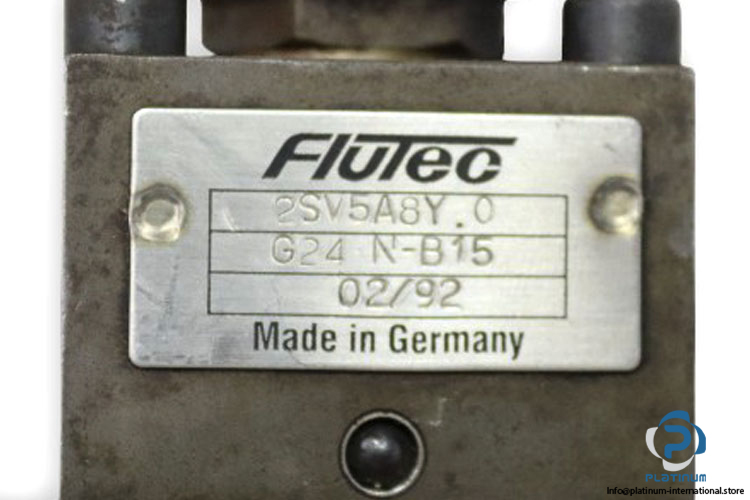

Attached Solenoid Coil
| Nominal Size (DN) | 20 |
| Maximum Pressure | 400 bar |
| Fluid | Oil |
| Block Material | Carbon Steel |
| Seal Material | NBR |
| Standard Threaded Connection | ISO 228 (BSP) |
| Connection | G1, G3/4 |
| Pressure Setting | 200 bar |
| Coil Voltage | G24 (24 V DC) |
| Series | N-B15 |
| Code | 02/92 |
