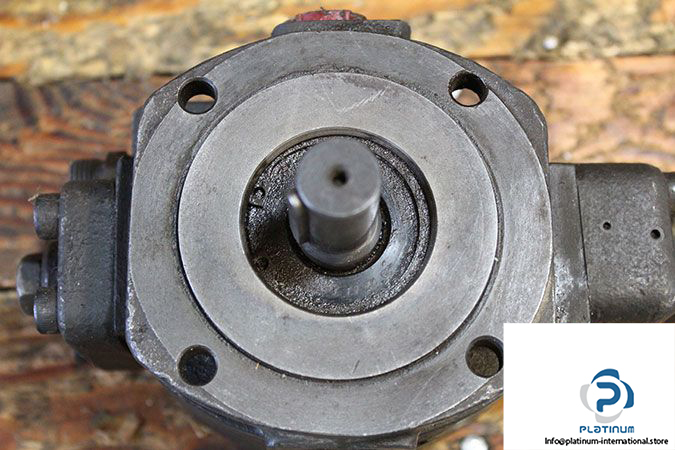

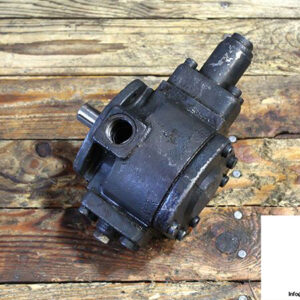

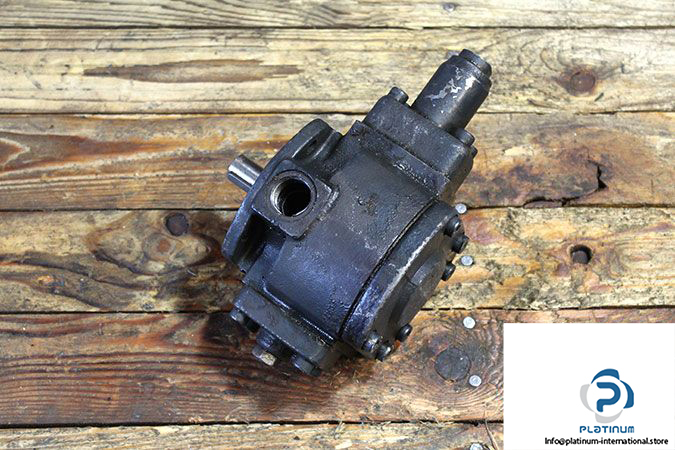

Hydraulik Ring PVS 12 E063A3 Variable Vane Single Pump

Manufacturer: Hydraulik Ring

Type: Variable Vane Single Pump

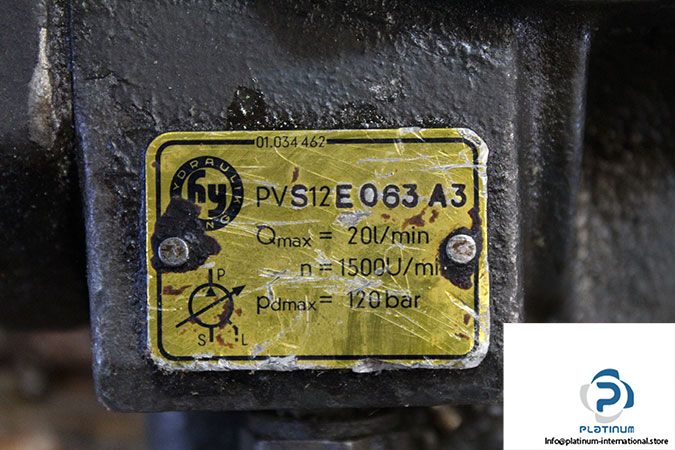

Model: PVS12E063A3



Size: 12

Displacement: 12.8 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 19 mm

Input power: 8.7 KW

Max pressure: 120 bar

Speed Range: 1000 …. 1800 rpm

Actual Speed: 1500 min^-1

Flow Rate at 1500 rpm: 19 l/m

Max Flow Rate at 1500 rpm: 20 l/m

Ambient-temperature range: –10 … 70 °C

Viscosity Range: 22 ….  100 mm²/s

Weight: 8.9 Kg
