Hydronorma DBD S10 K16/100 Direct Operated Pressure Relief Valve
Used
In stock2 unitsReady to ship
Pressure Relief Valve
HYDRONORMA DBDS10K16/100 direct operated pressure relief valve with NG10 size, 100 bar setting, and screw-in cartridge design for hydraulic oil systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

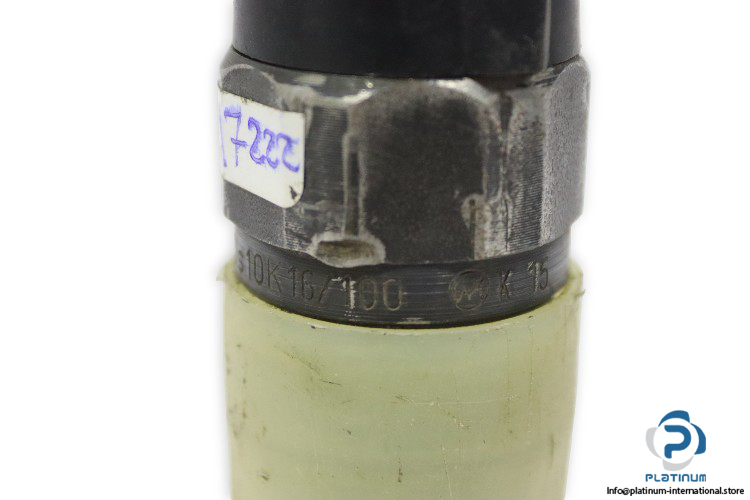

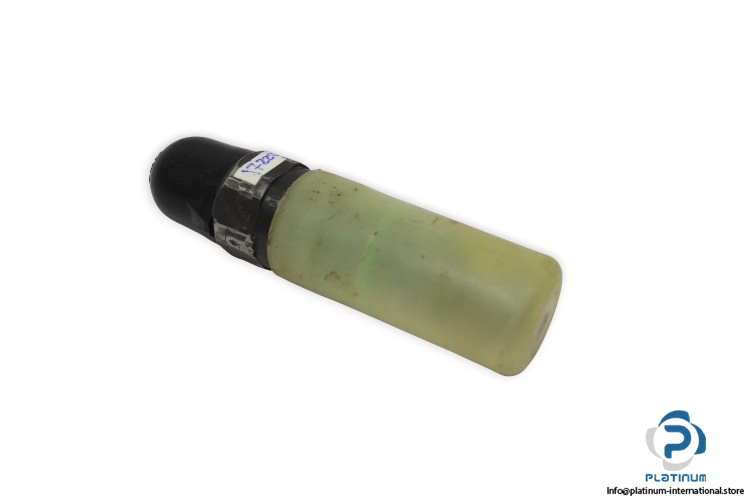

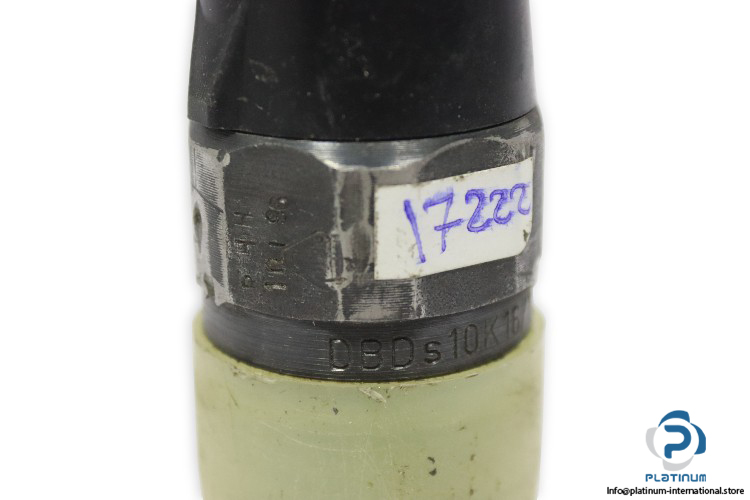

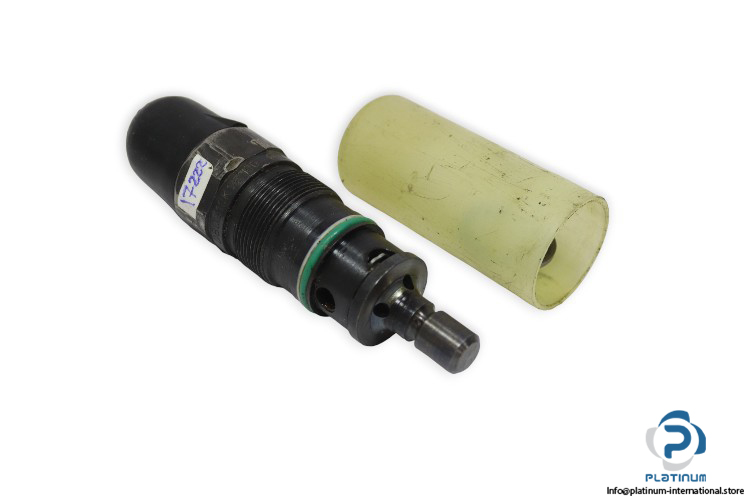

HYDRONORMA DBDS10K16/100 Pressure Relief Valve
The HYDRONORMA DBDS10K16/100 is a direct operated pressure relief valve designed for hydraulic systems using oil as the operating fluid. It provides precise pressure limitation and reliable protection of hydraulic components under high-pressure conditions.
Manufacturer: HYDRONORMA
Type: Direct Operated Pressure Relief Valve
Model: DBDS10K16/100
| Fluid | Oil |
| Size | NG10 |
| Adjustment Type for Pressure Adjustment | Sleeve with hexagon and protective cap |
| Pressure Setting | 100 bar |
| Maximum Operating Pressure at Input (Standard) | 630 bar |
| Maximum Operating Pressure at Output | 315 bar |
| Type of Connection | Screw-in cartridge valve |
| Connection | G 1 |
| Ambient Temperature Range | -30 / 80 °C |
| Viscosity Range | 10 / 800 mm²/s |
