HZ0B08G Filter Regulator
Used
In stock1 unitReady to ship
Filter Regulator
HZ0B08G Filter Regulator is a high-performance pneumatic component for regulating air pressure and filtration. With a 20-micron filtration rating, 1000 Nl/min flow rate, and an adjustable pressure range of 0.5 to 8.5 bar, it ensures efficient and stable operation in compressed air systems.100020AdjustableAirCompressedCondensationdrainfilterflowG1/4G1/8IndustrialManualMicronNl/minPneumaticPressureRateregulatorThread
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

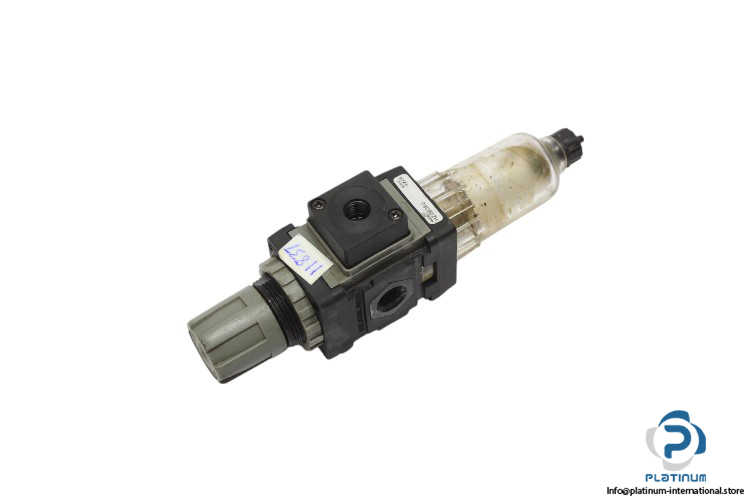

Filter Regulator HZ0B08G
The HZ0B08G Filter Regulator is designed for efficient air pressure regulation and filtration in pneumatic systems. With a filtration rating of 20 micrometers and a maximum inlet pressure of 10 bar, it ensures clean and stable compressed air flow. Its compact design, manual condensation drain, and adjustable pressure control make it ideal for various industrial applications.
- Type: Filter Regulator

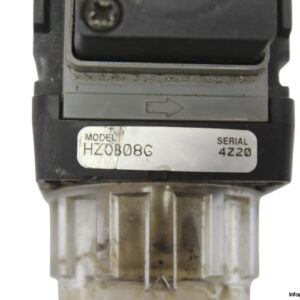

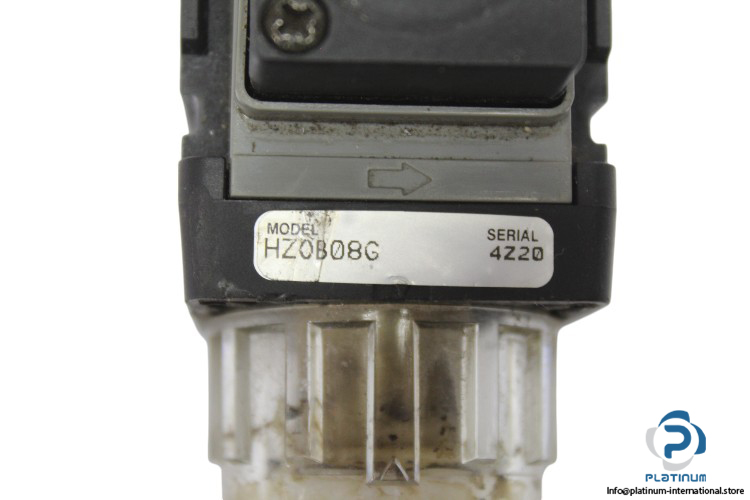

- Model: HZ0B08G
Technical Specifications
- Filtration Rating: 20 micrometers
- Flow Rate: 1000 Nl/min
- Max. Inlet Pressure: 10 bar
- Pressure Adjustment by Relieving: 0.5 to 8.5 bar
- Fluid: Compressed air
- Min./Max. Temperature: 5 to 60°C
- Condensation Drain Capacity: 12 cm³
- Condensation Drain: Manual
- Thread: G1/8, G1/4
