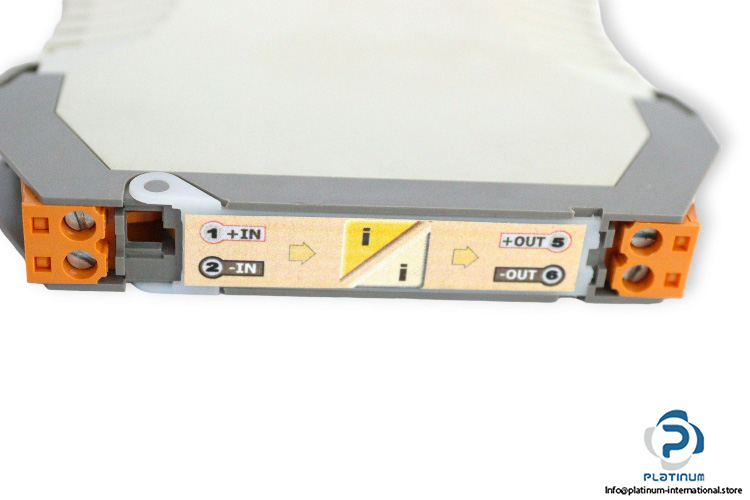

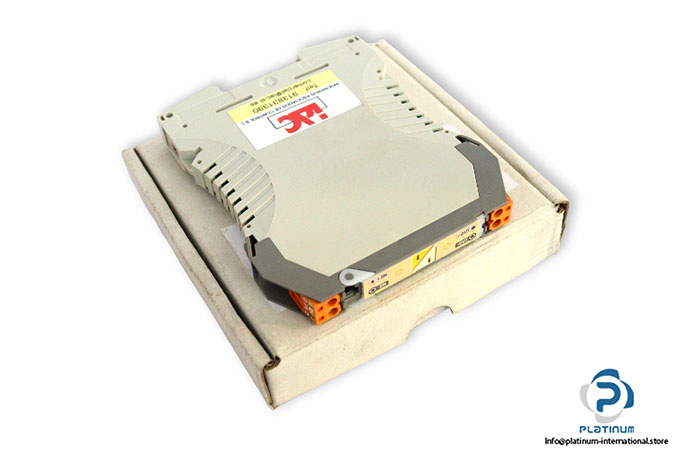

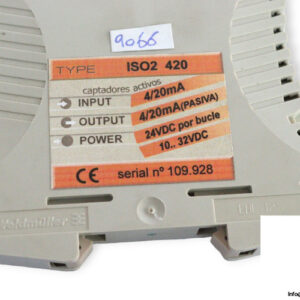

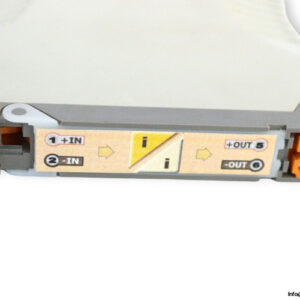

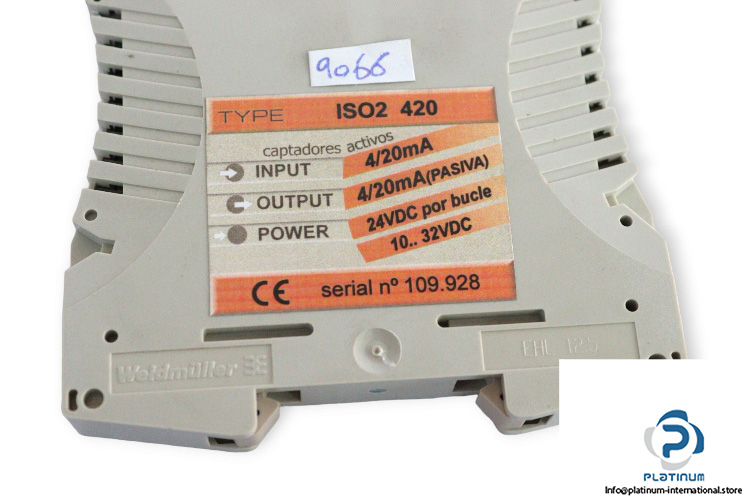

IAC ISO2 420 Isolator FOR Active Collector

Manufacture: Iac
Type: Isolator For Active Collector Passive Output
Model: ISO2 420

Electrical Specifications
Working temperature: -25 … +70°C
Power supply: 24 V DC (10 … 32 V DC)
Protection degree: IP20
Dimensions: 13 x 95 x 70 mm
2-way 4/20mA signal isolators, 2 channels
Input Current
Programmable Measurement Range: 4/20 mA
Input impedance: 190 Ohm
Protected against max. over currents: 500 mA
Input current limitation: 40 mA
Input Voltage
Voltage: 3000 V
Channel 2 voltage: 3500 V
Output Current
Maximum consumption Current: 25 mA
Output Voltage
Typical output loop supply voltage: 24 V DC
Supply voltage range: 10 … 32 V DC
Typical load capacity resistance (24 V DC): 800 Ohm
Maximum consumption Current: 25 mA
