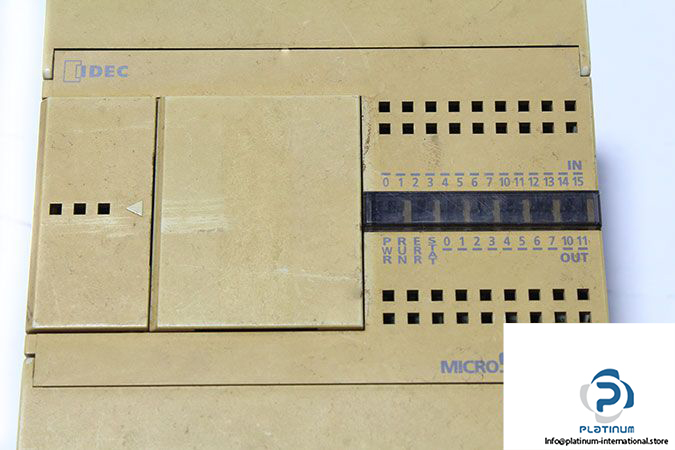

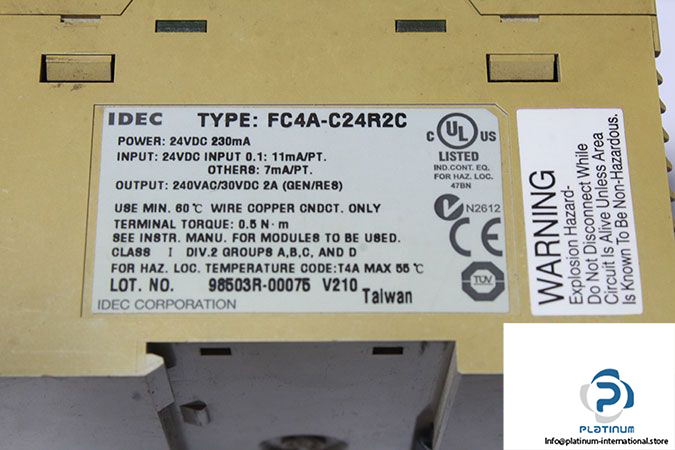

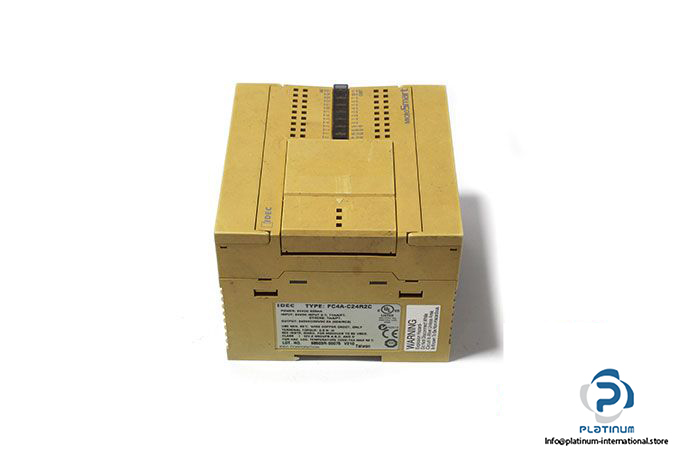

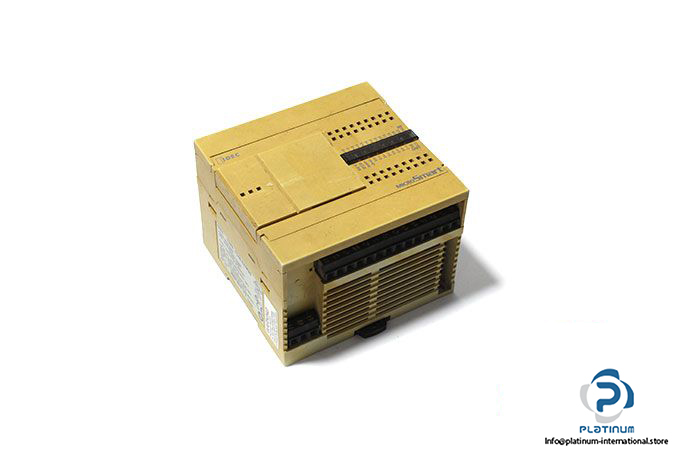

IDEC FC4A-C24R2C CPU modules

Manufacturer: IDEC

Type: CPU modules

Model: FC4A C24R2C

Series: Micro Smart

Input Voltage: 24V DC

Input Current: 230 mA

Output Voltage: 240 V AC / 30 V DC

Output Current: 2 A

Signal Input Current (0.1): 11 mA

Signal Input Current (Others): 7 mA / PT

Allowable Voltage Range: 20.4 to 28.8 V DC

Rated Power Frequency: 50 / 60 Hz

Inrush Current: 40A

Terminal Torque: 0.5 N.M

Protection Class: IP20

Temperature Code: T4A MAX  55^oC

Dimensions: 93 X 88 X 68 mm

Weight: 0. 310 Kg
